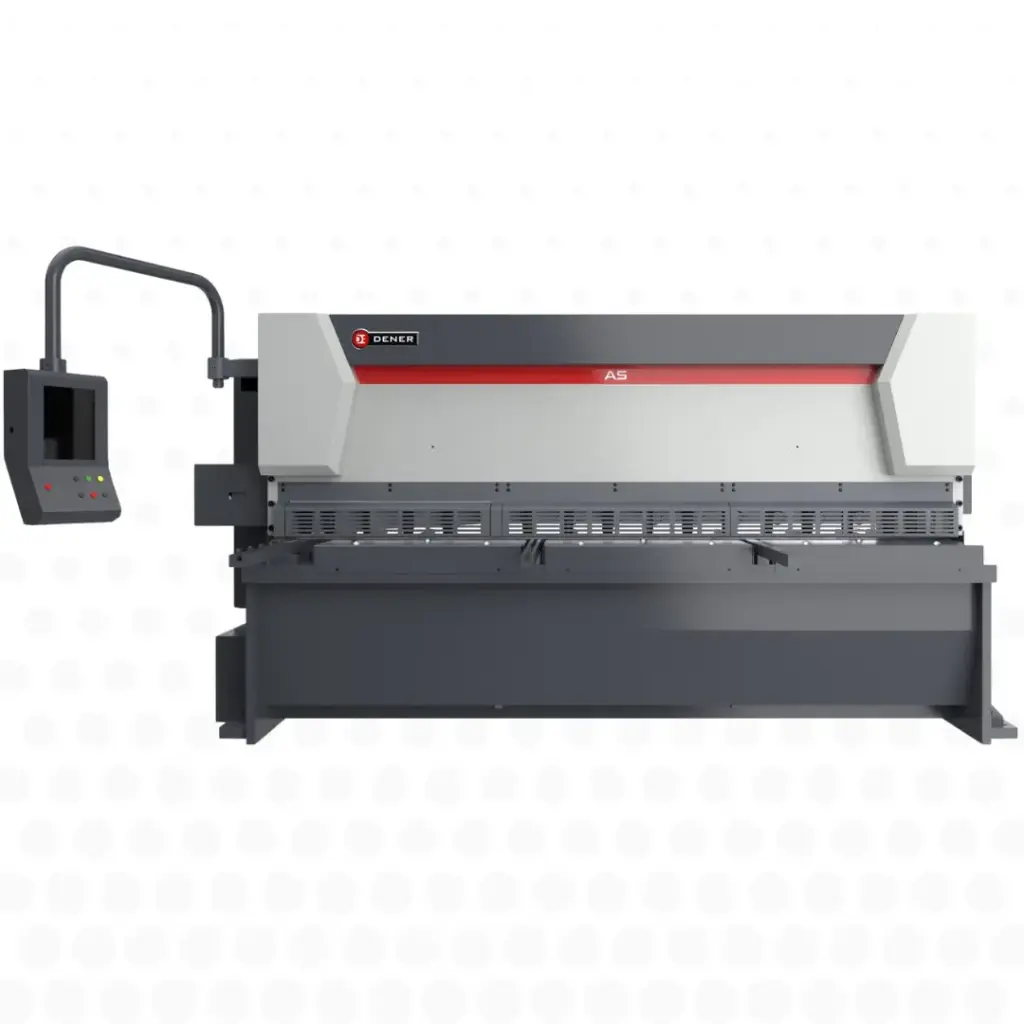

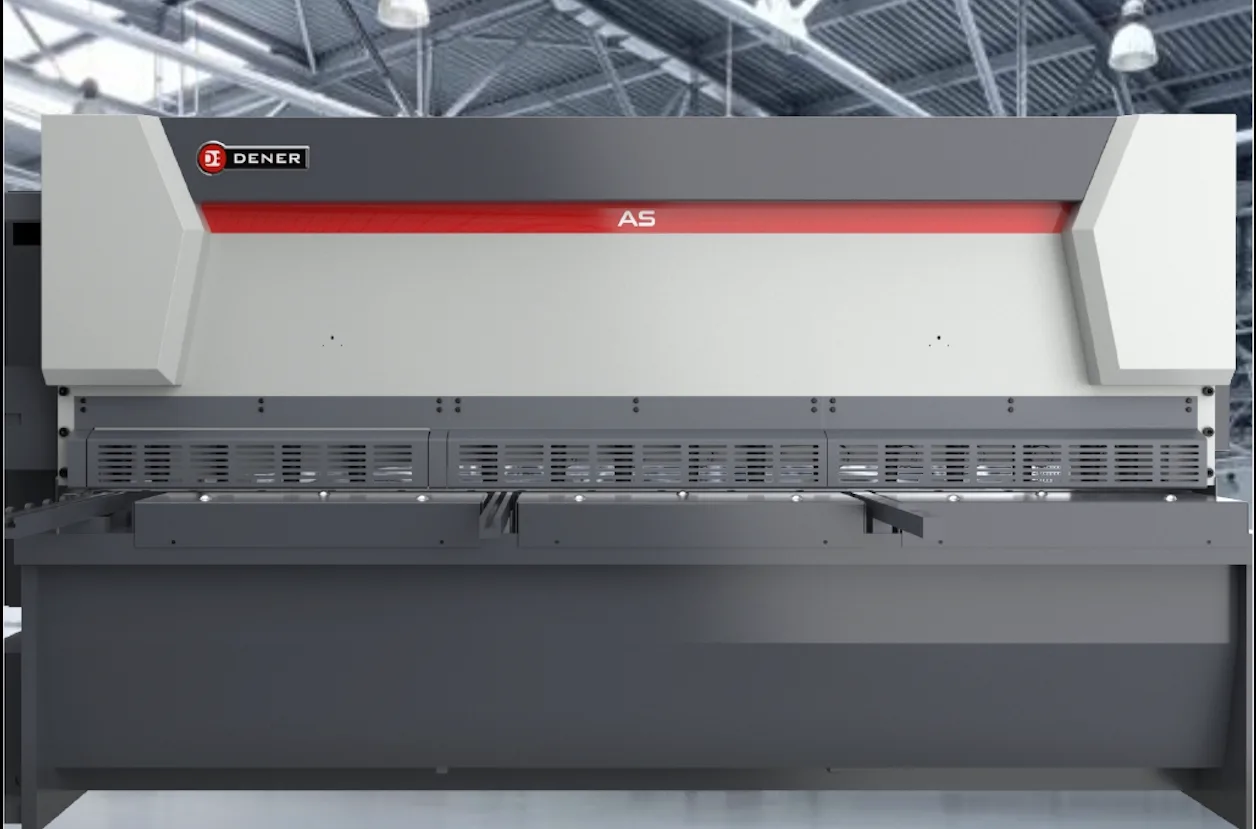

Dener AS CNC shear
Brand: DENER
- Faster, better-quality cuts.
- Robust, durable structure.
- Automatic blade gap and rake angle adjustment.
- Automatic back gauge adjustment
- High precision and easy to use.
- Low maintenance costs.
- Enhanced safety.
- Reliable components from globally recognised brands
Optimise your cutting operations with the DENER AS, a CNC shear designed to combine precision, speed and reliability in production. Built for modern sheet metal workshops, it guarantees clean, consistent cuts and is remarkably easy to use. Ideal for demanding industrial environments, it boosts productivity while keeping operating costs under control.
Key features and benefits
High cutting precision
Delivers clean, consistent cuts thanks to precise control of the cutting process.
Optimised productivity
High output rates to increase shop-floor throughput.
Ease of use
Intuitive CNC interface that makes programming straightforward and the machine quick to learn.
Industrial reliability
Designed for intensive use with excellent stability in production.
Material versatility
Suitable for cutting steel, stainless steel and aluminium.
Low maintenance
Robust design that keeps servicing to a minimum and ensures long service life.
Industrial applications
The DENER AS CNC shear is particularly well suited to the following operations:
- Sheet metal cutting in fabrication workshops
- Preparing parts for bending or assembly
- Small and medium batch production
- Subcontract machining
- Manufacturing metal parts
- Cutting steel, stainless steel and aluminium
Why choose this product
The DENER AS is an ideal solution for manufacturers looking for a precise, reliable and efficient CNC shear. It delivers consistent cut quality while optimising production performance.
It is a sound investment for any company looking to improve productivity while keeping costs under control, with a simple, robust machine suited to day-to-day needs.
Availability & related services
Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and parts availability
Financing options
CNC shear
Dener CNC shears combine robust mechanics, driven by hydraulic cylinders, with ball screw guidance and positioning for reliability and precision, all paired with an easy-to-use CNC controller. DENER shears cut mild steel (45 kg/mm²) from 6 mm to 20 mm thick, over cutting lengths of 3 m to 6 m as standard. For other sizes, please contact us.
Their monobloc structure guarantees maximum rigidity and high torsional resistance, delivering high-quality cuts. The operator simply enters the material thickness and type, and the ESA S 530 controller automatically adjusts the rake angle and blade gap.
ESA S 530 controller
7″ TFT LCD screen • Back gauge control • Blade gap control • Rake angle adjustment • Cutting length adjustment • Programmable up to 100 steps

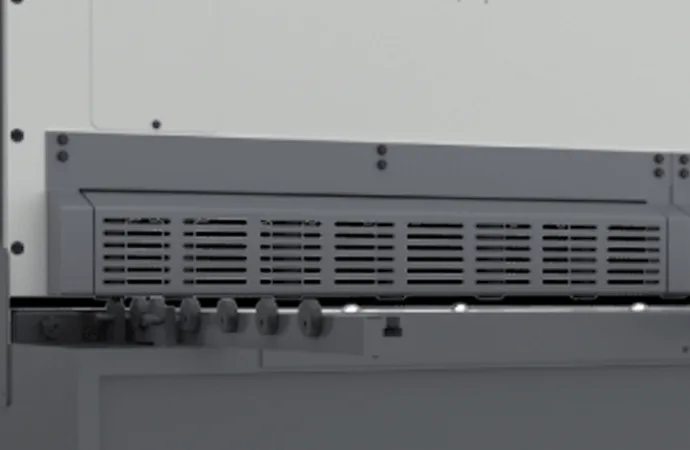

Front safety guard
Front safety guard along the full cutting length. Can be opened over 1,000 mm for small parts
Monobloc structure
A robust monobloc structure delivering exceptional cut quality from 6 mm to 20 mm.
Automatic blade gap adjustment
Automatic blade gap adjustment system, guaranteeing a precise cut every time.
Back gauge
Motorised back gauge with rapid traverse, accurate to ± 0.1 mm.
Removable pneumatic rear sheet support
Supports thin sheets during cutting, preventing them from sagging.
Standard equipment
- ESA S 530 CNC control unit
- Automatic rake angle and blade gap adjustment system
- Hydraulic hold-downs
- Front ball transfer table
- Removable pneumatic rear sheet support
- Front sheet support arms + graduated squaring arm
- Motorised back gauge
- Remote foot pedal with emergency stop button
- Front protection with safety guard
- LED cutting line lighting
- CE-compliant safety system
More details
Options
- Manual centralised lubrication system
- Oil temperature control system
- Pneumatic sheet support system with free-running rollers
- Cutting line laser
