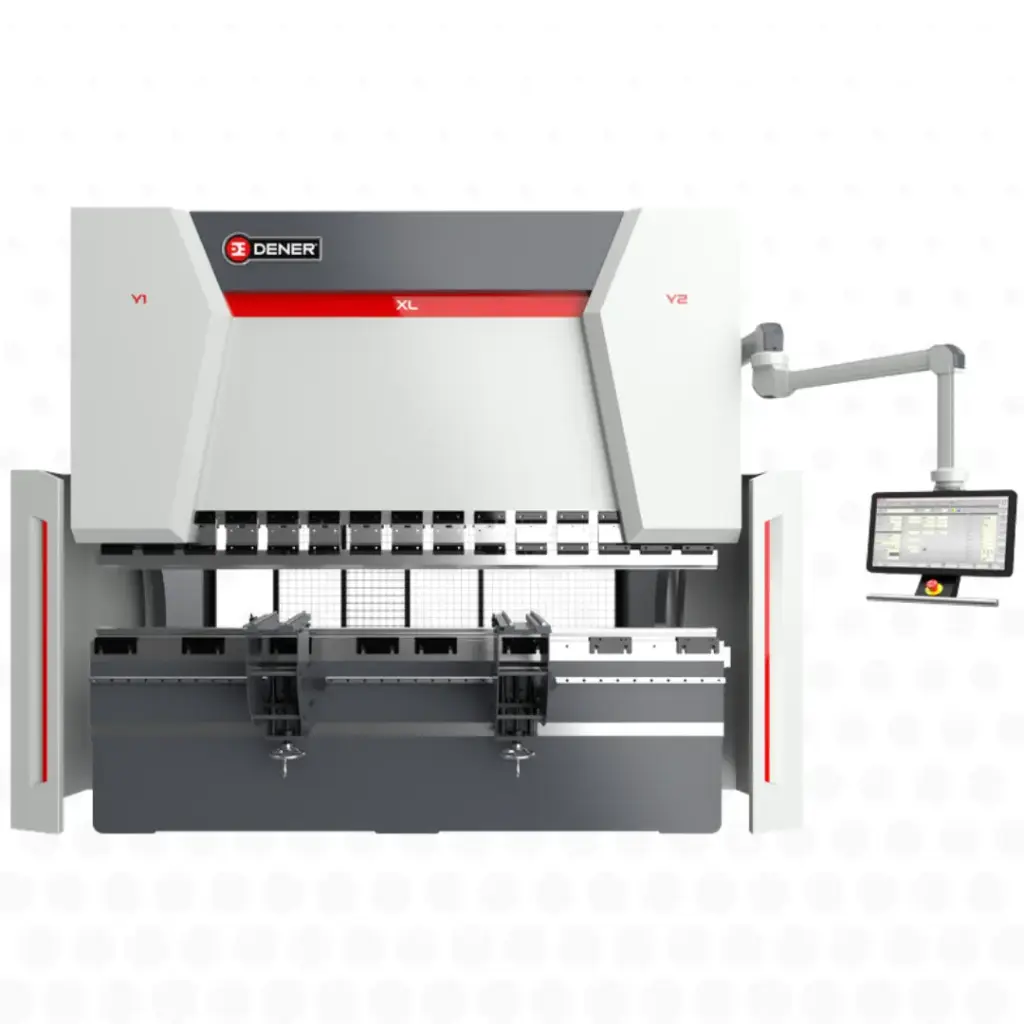

Dener Puma XL hydraulic press brake
Brand: DENER
- Autofocus system for excellent cut quality on both thin and thick sheet metal
- One-piece frame for high acceleration.
Lower operating costs
- Excellent cut quality on all types of material
High-quality components throughout
- Automatic sheet loading and unloading system
Modern, compact design
- Dynamic structure and ergonomic design
Designed for the most demanding industrial environments, the DENER Puma XL delivers power, precision and reliability for your bending operations. This hydraulic press brake combines a robust structure with consistent performance, so you can handle large workpieces with complete control. Ideal for intensive production, it ensures uniform bending quality and lasting productivity.
Key features and benefits
High bending force
Thanks to its high-performance hydraulic system, the machine handles thick material with excellent stability.
Large working capacity
Bends long, bulky parts thanks to its extended working length.
Precision and repeatability
Ensures consistent bends thanks to precise motion control and a rigid structure.
Industrial reliability
Designed for intensive operation, it meets the demands of production workshops.
Versatile in use
Suitable for bending a variety of materials such as steel, stainless steel and aluminium.
Ergonomics and simplicity
Intuitive control interface that makes programming and day-to-day operation easier.
Industrial applications
The DENER Puma XL hydraulic press brake is particularly well suited to the following operations:
- Bending thick plate in sheet metal workshops
- Fabrication of steel structures
- Production of large parts
- Subcontract machining
- Manufacture of steel, stainless steel and aluminium components
- Medium and high-volume production
Why choose this product
The DENER Puma XL is an ideal solution for manufacturers looking for a powerful, reliable and versatile hydraulic press brake. It meets the most demanding production requirements while ensuring consistent quality.
It is a strategic investment for any company that wants to bend large parts precisely and efficiently on a robust, proven machine.
Availability & related services
Delivery, commissioning, installation and training carried out by our own teams.
Let’s talk about your project!
Puma XL hydraulic press brake
Dener PUMA XL CNC press brakes are designed to be easy to use, reliable and high-performing. They are built using manufacturing technologies that guarantee a high level of quality. This model comes as standard with a 21" 3D graphical touchscreen CNC control, type ESA S 875 W, so operators get to grips with the machine quickly and can program parts easily on the touchscreen.
With 2D and 3D programming functions as standard, the Metalix software generates bending sequences automatically, calculates bend deductions and builds a library of all your previous jobs.
Generous throat depth, ram stroke and daylight.
With greater daylight, stroke and throat depth than competing machines, this press brake makes it easy to bend parts in a wide range of sizes.
Standard 4-axis machine
(Y1-Y2-X-R)
The back gauge on the Puma XL range is made from a one-piece aluminium casting and is a crucial element in ensuring bend quality and producing accurate parts. Whether you are working on simple parts or complex ones requiring several steps, this back gauge can be extended to 8 axes to suit your requirements.
ESA S 875 W 21" 3D CNC control unit as standard
Parts to be bent can be drawn on the touchscreen or entered by the operator at the control panel using the automatic step-by-step bending system. The ESA S 875 W 21" CNC control unit manages 4 to 8 axes and optimises bending sequences for greater efficiency.
High-rigidity ram guiding system
This ram guiding system, with four points of contact at all times, gives more stable movement and high accuracy.
Adjustable front supports mounted on a linear rail
These height-adjustable front supports, mounted on a linear guide, are available for press brakes of 175 tonnes and above and make the machine genuinely comfortable to use.
PROMECAM/AMADA-type punch and die clamping system as standard
We fit PROMECAM/AMADA-type punch and die clamping systems as standard, and can adapt them to suit each customer's specific requirements.
Standard equipment
- Y1, Y2, X, R axes.
- Punch/die holders, type
- PROMECAM/AMADA.
- CNC control with 21" 3D touchscreen, type Esa S 875 W.
- Manual crowning.
- Throat depth from 450 to 600 mm depending on tonnage.
- Ram stroke from 320 mm to 455 mm depending on tonnage.
- Hoerbiger or Rexroth hydraulic components.
- Remote foot pedal with emergency stop button.
- Adjustable front sheet supports on a linear guide.
- Side and rear safety guards.
Options
- ESA S 875 W 3D control unit with 21" touchscreen, managing 4 or more axes.
- Delem 66T CNC control unit.
- Delem 69T 3D CNC control unit.
- Cybelec ModEva 15T 3D CNC control unit.
- X R back gauge.
- X R Z1 Z2 back gauge.
- X1 X2 R Z1 Z2 back gauge.
- ATF X1 X2 R1 R2 Z1 Z2 back gauge.
- Automatic sheet follower (pictured opposite)
- Bending laser.
- Air conditioning for the electrical cabinet.
- Automatic CNC crowning.
- Quick-clamping system for punches
- Pneumatic tool clamping system.
- Wila-type mechanical or hydraulic tool clamping system.
- Special machine design with throat depth increased to 750/1000/1250/1500 mm, available to suit customer requirements.
