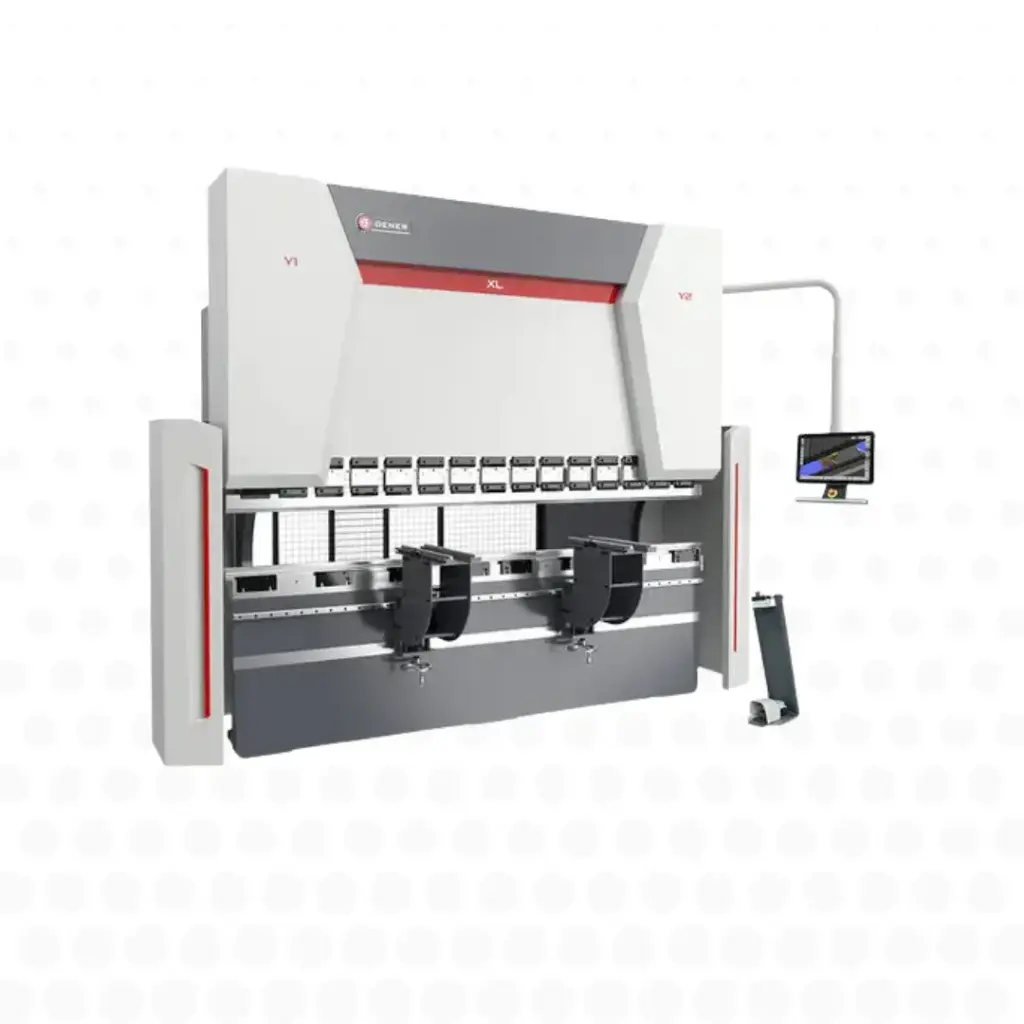

Dener Smart XL hydraulic press brake
Brand: DENER
- Precise, high-quality bending.
- Reinforced, stress-relieved structure.
- Deeper throat (400 mm to 600 mm depending on tonnage),
- Long stroke (300 mm to 455 mm) depending on tonnage and bending length
- Greater daylight (530 mm to 680 mm) depending on tonnage and bending length
- Uprated hydraulic system with internal gear pump: faster and quieter.
- Ram guided at all times on 4 contact points.
- PROMECAM/AMADA-type tool holders as standard.
- ESA S 640 CNC control with 15" 2D touchscreen and 3D visualisation as standard.
- Very high-quality hydraulic components.
- Easy servicing and maintenance
Designed to strike the ideal balance between performance, precision and affordability, the Smart XL is a reliable solution for modern sheet metal workshops. This hydraulic press brake delivers efficient bending with consistent quality, while remaining remarkably easy to use. Ideal for day-to-day production, it guarantees productivity, durability and cost control.
Key features and benefits
Reliable bending performance
Thanks to its hydraulic system, the machine delivers stable, consistent bending in production.
Ease of use
Intuitive control interface that is quick to learn and efficient to use day to day.
Versatile applications
Suitable for bending a range of materials such as steel, stainless steel and aluminium.
Precision and repeatability
Produces consistent bends thanks to closely controlled ram movement.
Robust construction
Solid structure built to last in industrial environments.
Cost optimisation
A cost-effective solution that meets your production needs without excessive investment.
Industrial applications
The Smart XL hydraulic press brake is particularly well suited to the following operations:
- Bending sheet metal in sheet metal workshops
- Manufacturing metal parts
- Small and medium batch production
- Producing parts for assembly
- Subcontract machining
- Manufacturing components in steel, stainless steel and aluminium
Why choose this product
The Smart XL is an ideal solution for manufacturers looking for a simple, reliable and efficient hydraulic press brake. It ensures steady production while keeping operating costs under control.
It is a sound investment for any company that wants to combine performance with affordability, with a robust machine suited to everyday production needs.
Availability & related services
Delivery, commissioning, installation and training available.
Let’s talk about your project!
Smart XL hydraulic press brake
Dener SMART XL CNC press brakes are designed to be easy to use, reliable and high-performing. They are built using manufacturing technologies that guarantee a high level of quality. This model comes as standard with a 15" 2D graphical touchscreen CNC control, type ESA 640, so operators get to grips with the machine quickly and can program parts easily on the touchscreen.
With 2D programming functions as standard and 3D as an option, the Metalix software generates bending sequences automatically, calculates bend deductions and builds a library of all your previous jobs.
Generous throat depth, ram stroke and daylight.
With greater daylight, stroke and throat depth than competing machines, this press brake makes it easy to bend parts in a wide range of sizes.
Standard 3-axis machine
(Y1-Y2-X)
The back gauge on the Puma XL range is made from a one-piece aluminium casting and is a crucial element in ensuring bend quality and producing accurate parts. Whether you are working on simple parts or complex ones requiring several steps, this back gauge can be extended to 6 axes to suit your requirements.
ESA S 640 15" 2D control unit as standard
Parts to be bent can be drawn on the touchscreen or entered by the operator at the control panel using the automatic step-by-step bending system. The CNC control unit optimises bending sequences for greater efficiency.
High-rigidity ram guiding system
With the ram guided at all times on 4 contact points, this system delivers smoother, more stable movement and high precision.
Manual crowning table adjustment as standard
Automatic crowning table adjustment is available as an option.

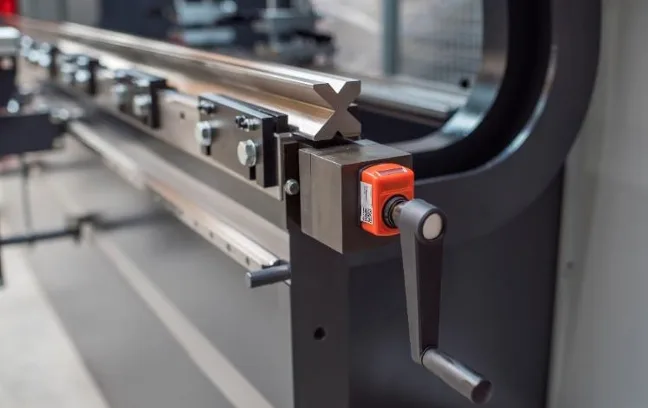

PROMECAM/AMADA-type punch and die clamping system as standard
We fit PROMECAM/AMADA-type punch and die clamping systems as standard, and can adapt them to suit each customer's specific requirements.
Standard equipment
Y1, Y2, X axes.
- PROMECAM/AMADA-type punch/die holders.
- CNC control with 15" 2D touchscreen, type Esa S 640.
- Manual crowning.
- Throat depth from 450 to 600 mm depending on tonnage.
- Ram stroke from 320 mm to 455 mm depending on tonnage.
- Hoerbiger or Rexroth hydraulic components.
- Remote foot pedal with emergency stop button.
Side and rear safety guards.
Options
- ESA S 875 W 3D control unit with 21" touchscreen, managing 4 or more axes.
- Delem 66T CNC control unit.
- Delem 69T 3D CNC control unit.
- Cybelec ModEva 15T 3D CNC control unit.
- X R back gauge.
- X R Z1 Z2 back gauge.
- Adjustable front sheet supports on a linear guide
- Bending laser.
- Air conditioning for the electrical cabinet.
- Automatic CNC crowning.
- Quick-clamping system for punches
- Pneumatic tool clamping system.
- Wila-type mechanical or hydraulic tool clamping system.
