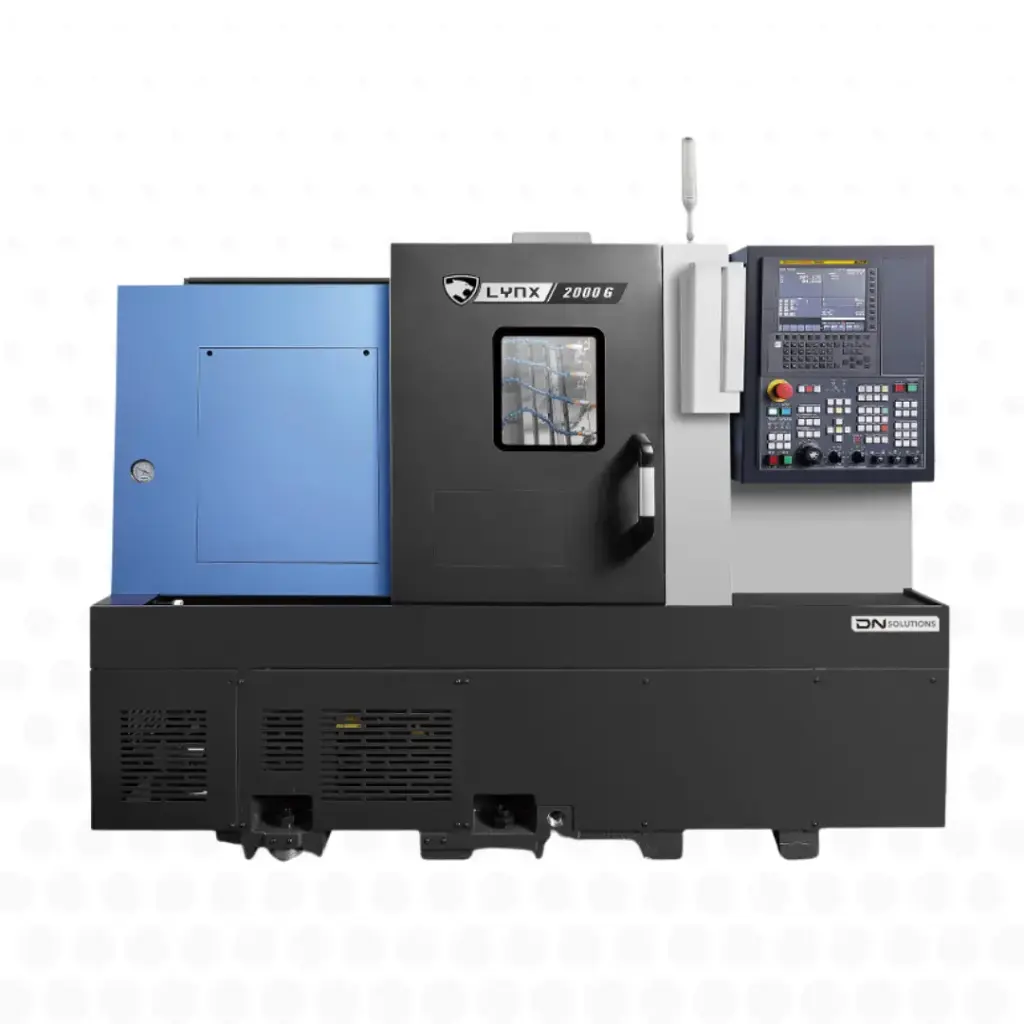

DN Solutions Lynx 2000G / 2100G series horizontal CNC lathe

Brand: DN SOLUTIONS

The LYNX 2000G / 2100G series from DN SOLUTIONS is a new generation of 2-axis horizontal CNC lathes designed for fast, precise and cost-effective production of mechanical parts. It combines compactness, rigidity and thermal stability to ensure consistent performance in industrial environments.

Designed for modern workshops and series production lines, the LYNX G series optimises turning cycles while delivering excellent precision, high repeatability and very easy integration. An ideal solution for improving productivity without compromising on machining quality.

https://www.scomo.fr/web/image/product.template/152255/image_1920?unique=9b7a0be

Key features and benefits

Reliable turning precision
Produces consistent parts with controlled tolerances in series production.

Optimised productivity
Reduces cycle times to improve overall manufacturing output.

Compact industrial format
Makes integration easier in production workshops where space is at a premium.

High structural rigidity
Provides consistent cutting stability, even in intensive operation.

Easy to use
Interface and design built for a short learning curve on the shop floor.

Production versatility
Suited to a wide range of standard and technical mechanical parts.

Reliability in continuous production
Designed for intensive industrial use with high availability.

Industrial applications

The DN SOLUTIONS LYNX 2000G / 2100G series is particularly well suited to the following operations:

  • Precision 2-axis CNC turning
  • Series production of mechanical parts
  • Manufacture of components for the automotive and general engineering sectors
  • Machining of technical cylindrical parts
  • Subcontract machining
  • High-volume production of standardised parts

Availability and services

Machine available to order in a range of configurations

Support with integration into your production environment

Installation and commissioning by qualified engineers

Operator training to get you up and running quickly

Responsive after-sales service and spare parts availability

Financing options available

Request information



Request information Download data sheet
Contact Us

Lynx 2000G/2100G series

The new Lynx 2-axis horizontal turning centres stand out for their compact design combined with an exceptional level of productivity. Despite their small footprint, these machines offer high performance and great efficiency in production. Built to work hard and to last, they are an ideal solution for optimising machining cycles while maximising profitability.

Specifications
Models
CAPACITY - Chuck size
CAPACITY - Max. Turning Diameter
CAPACITY - Max. Turning Length
DIMENSIONS - Height
DIMENSIONS - Length
DIMENSIONS - Weight
DIMENSIONS - Width
MAIN SPINDLE - Max. Spindle Power
MAIN SPINDLE - Max. Spindle Speed
MAIN SPINDLE - Max. Spindle Torque
TRAVELS - X-Axis Rapid Traverse
TRAVELS - X-Axis Travel Distance
TRAVELS - Z-Axis Rapid Traverse
TRAVELS - Z-Axis Travel Distance
Lynx 2000G
6 {8} inch
170 mm
330 mm
1935 mm
2090 mm
2900 kg
1400 mm
15 kW
6000 r/min
95.5 N·m
30 m/min
450 mm
36 m/min
340 mm
Lynx 2100G
6 inch
170 mm
330 mm
1935 mm
2090 mm
2900 kg
1400 mm
18.5 kW
6000 r/min
118 N·m
30 m/min
450 mm
36 m/min
340 mm
