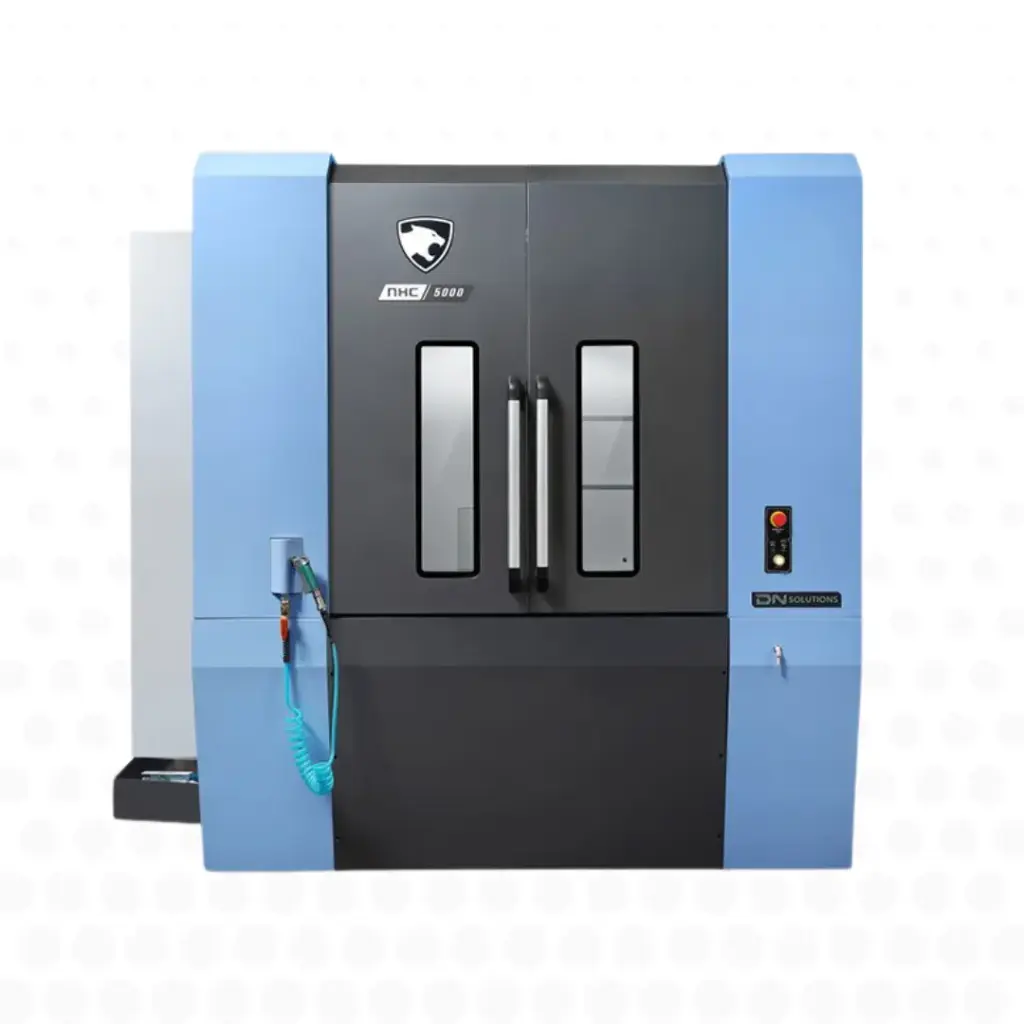

DN Solutions NHC series horizontal machining centre

Brand: DN SOLUTIONS

The DN SOLUTIONS NHC series is designed to meet the demands of high-volume industrial production, combining robustness, precision and operational efficiency. Its horizontal layout ensures optimum chip evacuation and uninterrupted production.

Designed for modern workshops and automated lines, the NHC series delivers high repeatability, consistently stable machining and shorter cycle times. It is a dependable solution for manufacturers who want to maximise productivity while maintaining a high level of quality.

https://www.scomo.fr/web/image/product.template/152262/image_1920?unique=fb3b212

Key features and benefits

Productive horizontal machining
Achieves high output rates in series production.

Optimised chip evacuation
Improves cycle continuity and machining quality.

Consistent industrial precision
Delivers reliable results on repeat technical parts.

Rigid, stable structure
Provides high stability under heavy machining conditions.

Optimised cycle times
Cuts non-productive time to improve overall output.

Automation-ready
Makes integration into robotic cells and production lines straightforward.

Reliability in continuous production
Designed for long-lasting operation in demanding industrial environments.

Industrial applications

The DN SOLUTIONS NHC series is particularly well suited to the following operations:

  • Horizontal machining of mechanical parts
  • Series production of industrial components
  • Manufacture of parts for the automotive and general engineering sectors
  • Multi-operation machining of technical parts
  • Integration into automated production lines
  • Subcontract machining

Availability and services

Machine available to order in a range of configurations

Support with integration into your production environment

Installation and commissioning by qualified engineers

Operator training to get you up and running quickly

Responsive after-sales service and spare parts availability

Financing options available

Request information



Request information Download data sheet Download
manufacturer docs
Contact Us

NHC series

The NHC series, dedicated to compact horizontal machining, is designed to deliver maximum productivity and high precision. Packed with practical features, it makes day-to-day operation easier while optimising performance. Its compact design makes efficient use of shop-floor space, ideal for industrial environments where every square metre counts.

Specifications
Models
DIMENSIONS - Height
DIMENSIONS - Length
DIMENSIONS - Weight
DIMENSIONS - Width
FEED RATES - X-Axis Rapid Traverse
FEED RATES - Y-Axis Rapid Traverse
FEED RATES - Z-Axis Rapid Traverse
MAIN SPINDLE - Max. Spindle Power
MAIN SPINDLE - Max. Spindle Speed
MAIN SPINDLE - Max. Spindle Torque
TABLE - Maximum Workpiece weight
TABLE - Pallet Size
TOOL STORAGE CAPACITY - No. of tool station
TRAVELS - X-Axis Travel Distance
TRAVELS - Y-Axis Travel Distance
TRAVELS - Z-Axis Travel Distance
NHC 4000
2573 mm
5356 mm
11000 kg
2259 mm
48 m/min
40 m/min
48 m/min
18.5/11 kW
8000 {12000/15000} RPM
353.4 {117} N·m
400 kg
400 x 400
40 {60 ~ 262}
600 mm
560 mm
565 mm
NHC 5000
3007 mm
5940 mm
12500 kg
2678 mm
48 m/min
40 m/min
48 m/min
18.5/11 kW
8000 {12000/15000} RPM
353.4 {117} N·m
500 kg
500 x 500
40 {60 ~ 262}
850 mm
700 mm
750 mm
