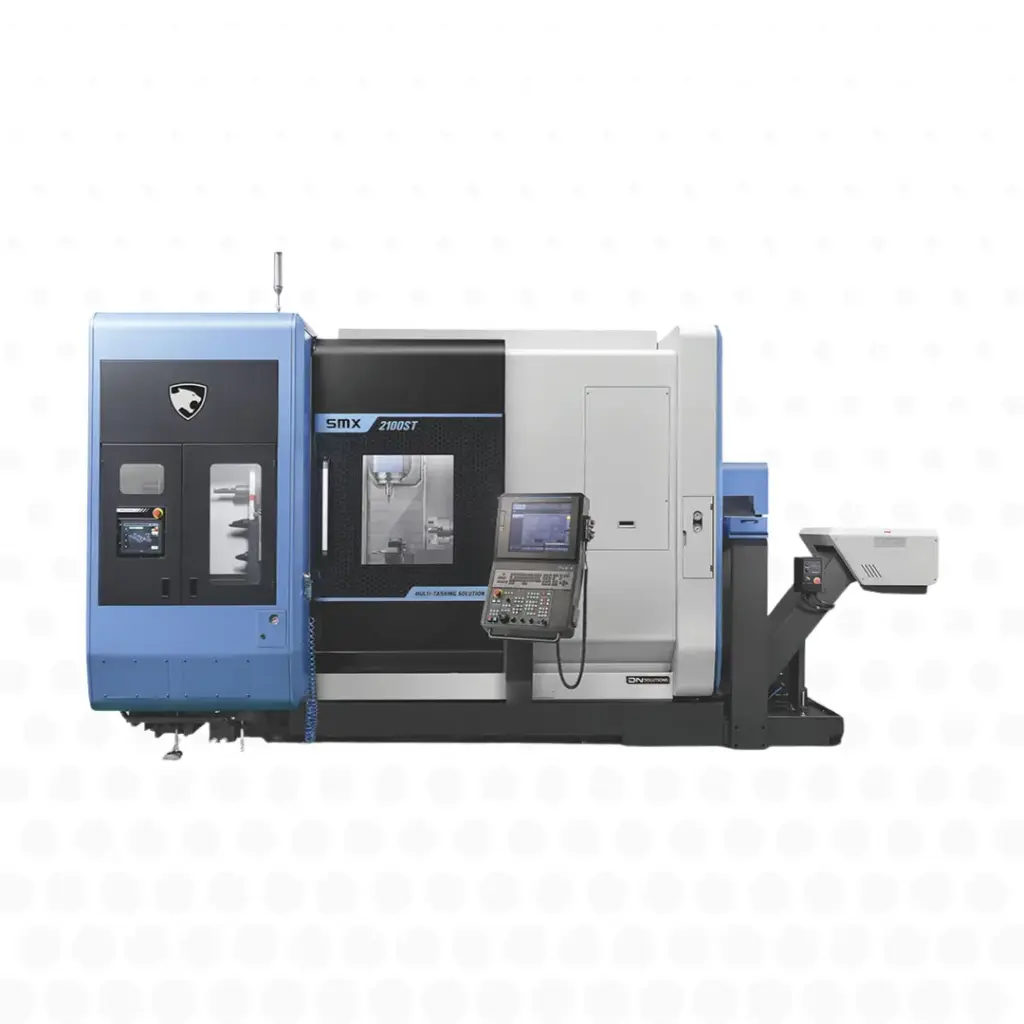

DN Solutions SMX series multi-tasking lathe

Key features

• Full multi-tasking (turning + milling)
  Produce complex parts in a single set-up, cut out second operations and safeguard quality.
• Highly versatile 9-axis architecture
  Complete machining freedom for the most demanding geometries.
• Twin spindles (left / right)
  Optimises cycles, enables simultaneous machining and raises overall productivity.
• High-precision B-axis (0.0001° indexing)
  Exceptional surface finish and consistent accuracy on complex operations.
• High-capacity tool magazine (up to 120 tools)
  Ideal for multi-operation parts and uninterrupted production.
• Rigid structure & linear roller guideways
  Maximum stability, high repeatability and consistent quality.
• Shorter set-up and machining times
  Less machine downtime, more parts produced per cycle.
• Advanced thermal compensation
  Accuracy maintained over long production runs and continuous operation.

Technical data

• Type: CNC multi-tasking turning / milling centre
• Axes: Up to 9 simultaneous axes
• Spindles: Twin spindles (main + sub-spindle)
• B-axis: ±120° with high-precision indexing
• Tool magazine: 80 tools as standard (up to 120 as an option)
• Turret: 12 stations, high rigidity
• Max. turning diameter (e.g. SMX 2100): 600 mm
• Max. turning length: up to 1540 mm depending on version
• Spindle speed: up to 5000 rpm
• Spindle power: approx. 22 kW (depending on model)
• Structure: Optimised rigid frame, roller guideways
• Thermal management: Intelligent thermal drift compensation

(Specifications vary across the SMX models: 2100, 2600, 3100, 5100…)

Industrial applications

The SMX series is designed for the most demanding environments:

• Machining of complex, high-value parts
• Manufacture of aerospace and energy-sector components
• Production of precision-engineered automotive parts
• Multi-operation machining in a single set-up
• High-precision subcontract machining
• Long or complex parts, or parts that need machining in several orientations

Availability and services

• Machine available to order in a range of configurations
• Support with integration into your production environment
• Installation and commissioning by qualified engineers
• Operator training to get you up and running quickly
• Responsive after-sales service and spare parts availability
• Financing options available
