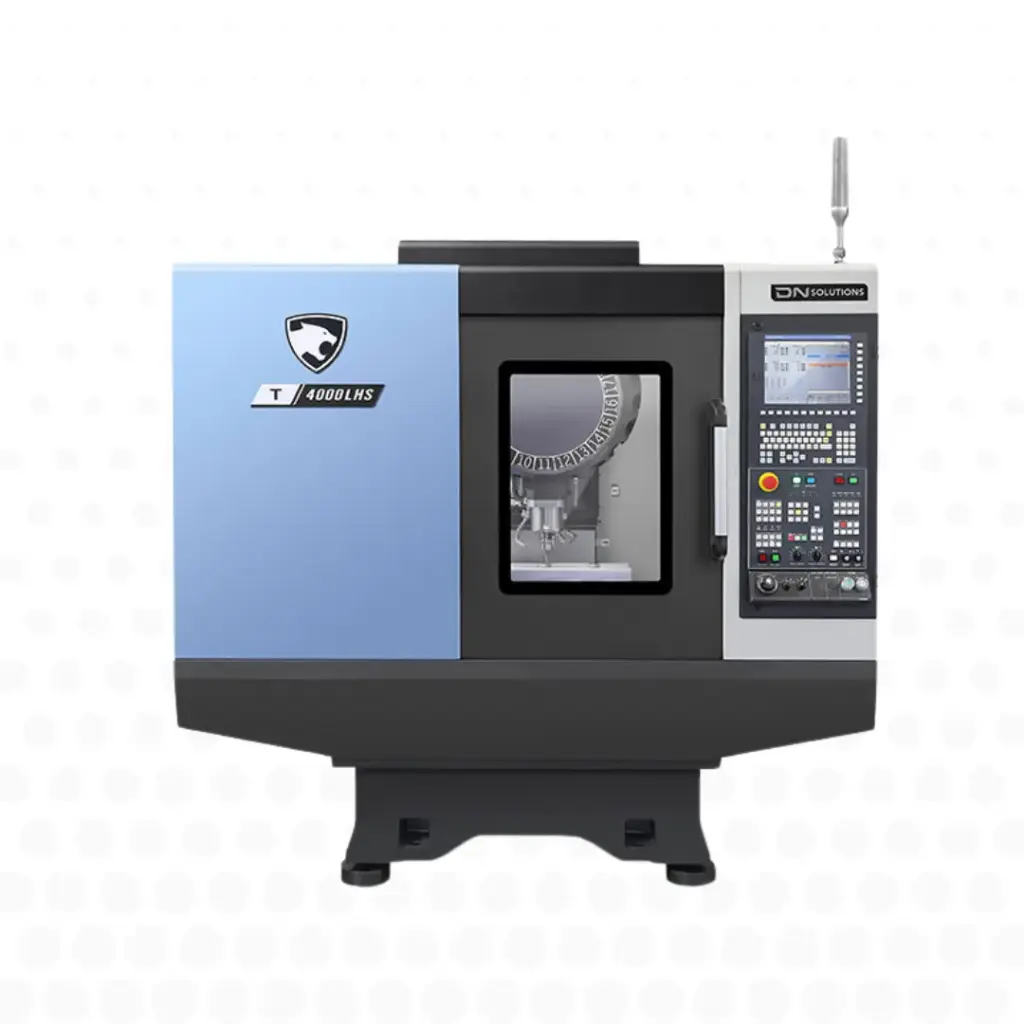

DN Solutions T series drilling centre

Brand: DN SOLUTIONS

The DN SOLUTIONS T SERIES is a range of high-speed CNC tapping centres designed to maximise productivity, speed and precision in intensive machining operations. Compact, responsive and built for high output rates, it is a perfect match for modern workshops geared to continuous production.

Developed for industrial environments that demand short cycle times and excellent repeatability, the T SERIES range stands out for its rapid acceleration, optimised machine dynamics and high efficiency in drilling, tapping and light milling. An ideal solution for manufacturers seeking performance and lasting industrial output.

https://www.scomo.fr/web/image/product.template/152447/image_1920?unique=359c8d4

Key features and benefits

Consistent turning accuracy
Produces consistent parts with tightly controlled tolerances in industrial production.

High industrial productivity
Optimises cycles to improve the overall efficiency of turning operations.

Scalable range
Available in a number of configurations to suit varied production needs.

Optimised structural rigidity
Ensures reliable cutting stability, even under heavy-duty conditions.

Easy to operate
Fits readily into the workshop thanks to intuitive, efficient operation.

Versatile applications
Suited to a wide range of standard and technical mechanical parts.

Reliability in continuous production
Built for long-lasting operation in demanding industrial environments.

Industrial applications

The DN SOLUTIONS T Series is particularly well suited to the following operations:

  • High-speed CNC tapping centres
  • Series production of mechanical components
  • Precision drilling and tapping
  • Automotive industry and subcontract machining
  • Manufacture of aluminium and steel parts
  • Production of electronic and mechanical components
  • Workshops looking for short cycle times and high productivity
Availability and services
Machine available to order in a range of configurations

Support with integration into your production environment

Installation and commissioning by qualified engineers

Operator training to get you up and running quickly

Responsive after-sales service and spare parts availability

Financing options available

Request information

Request information Download data sheet Download
manufacturer docs
Contact Us

T series

This high-productivity drilling centre is equipped with high-speed spindles designed to maximise performance and cut cycle times. Developed to meet the demands of the automotive and IT sectors, it offers fast operation, high precision and excellent reliability in intensive production. Compact and powerful, it is an ideal solution for series machining.


Specifications
Models
TRAVELS - X-Axis Travel Distance
TRAVELS - Y-Axis Travel Distance
TRAVELS - Z-Axis Travel Distance
FEED RATES - X-Axis Rapid Traverse
FEED RATES - Y-Axis Rapid Traverse
FEED RATES - Z-Axis Rapid Traverse
MAIN SPINDLE - Max. Spindle Speed
MAIN SPINDLE - Max. Spindle Power
MAIN SPINDLE - Max. Spindle Torque
MAIN SPINDLE - Tool Taper
TABLE - Table Length
TABLE - Table Width
TABLE - Maximum Workpiece weight
DIMENSIONS - Length
DIMENSIONS - Height
DIMENSIONS - Width
DIMENSIONS - Weight
T 4000
520 mm
400 mm
350 mm
56 m/min
56 m/min
56 m/min
12000 {18000} r/min
13/3.7 kW
82.7 N·m
ISO #30
650 mm
400 mm
300 kg
2560 mm
2312 mm
1633 mm
2800 kg
T 4000L
700 mm
400 mm
350 mm
56 m/min
56 m/min
56 m/min
12000 {18000} r/min
13/3.7 kW
82.7 N·m
ISO #30
850 mm
400 mm
300 kg
2560 mm
2312 mm
2050 mm
3000 kg
T 4000HP
520 mm
400 mm
350 mm
50 m/min
50 m/min
56 m/min
12000 r/min
36/7.5 kW
43 N·m
ISO #30
650 mm
400 mm
300 kg
2560 mm
2312 mm
1633 mm
3000 kg
T 4000HS
520 mm
400 mm
350 mm
48 m/min
48 m/min
48 m/min
24000 r/min
11/2.2 kW
17.5 N·m
ISO #30
650 mm
400 mm
200 kg
2560 mm
2312 mm
1633 mm
3000 kg
T 4000LHS
700 mm
400 mm
350 mm
48 m/min
48 m/min
48 m/min
24000 r/min
11/2.2 kW
17.5 N·m
ISO #30
850 mm
400 mm
2560 mm
2312 mm
2050 mm
3200 kg
