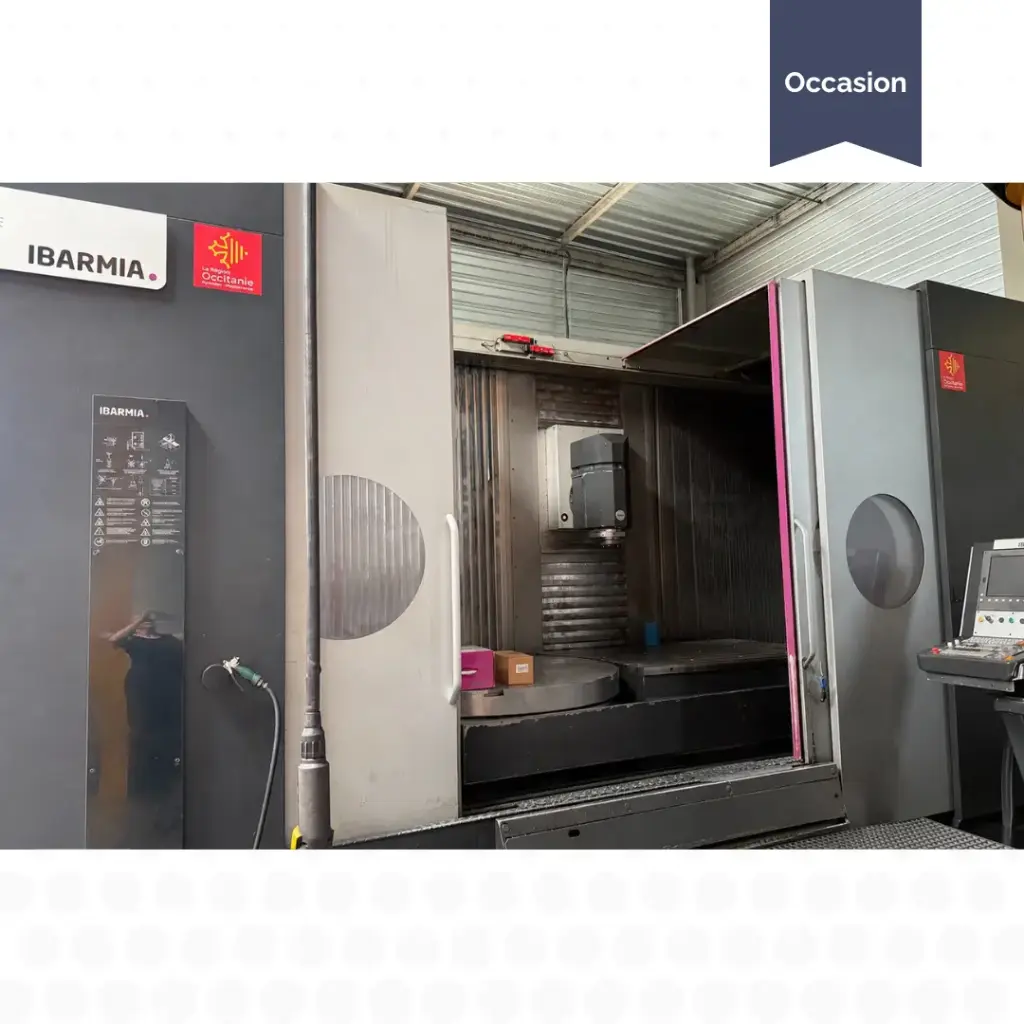

5-axis machining centre IBARMIA ZHV60/3000 EXTREME
Brand: IBARMIA
Model: ZHV60/3000 EXTREME
Year: 2,018
Reference: K00047
| Year: | 2018 |
| CNC type: | HEIDENHAIN ITNC 640 |
| Table dimensions (mm): | 3840 x 1150 |
| Maximum swing diameter on integrated table (C-axis) (mm): | 1600 |
| X-axis longitudinal travel (mm): | 3000 |
| Y-axis cross travel (mm): | 1100 |
| Z-axis vertical travel (mm): | 1100 |
| B-axis travel (tilting head):: | +/-105 |
| Maximum workpiece weight (kg): | 2000 Kg/m2 |
| Spindle speed (rpm): | 7000 |
| Spindle motor power (kW): | 75 |
| Through-spindle coolant: | Yes |
| Number of tools: | 60 |
| Tool taper: | 50 |
| - Overall dimensions L x W x H (mm): | 6500 x 6200 mm |
| Machine weight (t): | 32 |
Equipment:
- Tool probe
- Workpiece probe
- 70 bar high-pressure coolant unit with paper filtration
- Add-on 4th-axis rotary table, 500 mm dia., with tailstock
- 2 risers, 900 and 700 mm dia.
- Large number of tool holders
Internal Reference:
K00047
