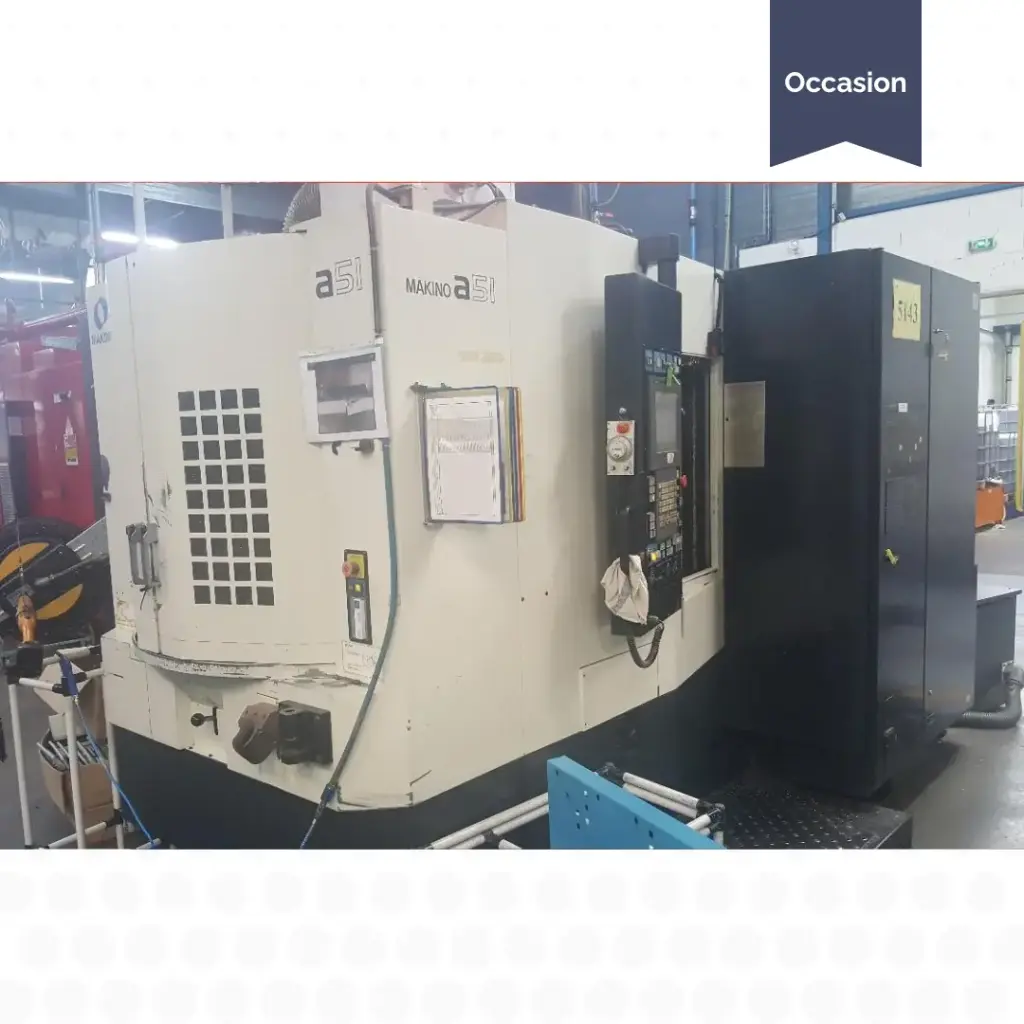

Horizontal machining centre MAKINO A51
Brand: MAKINO
Reference: D00205
| Year: | 2006 |
| CNC type: | FANUC 310is-A |
| Pallet dimensions (mm): | 400 x 400 |
| Number of pallets: | 2 |
| X-axis longitudinal travel (mm): | 560 |
| Y-axis cross travel (mm): | 560 |
| Z-axis vertical travel (mm): | 600 |
| Spindle speed (rpm): | 20000 |
| Spindle motor power (kW): | 18.5/11 |
| Number of tools: | 60 |
| Tool taper: | HSK 63 |
| Table to spindle nose distance (mm): | 70 |
| Maximum workpiece weight (kg): | 400 |
| X-axis rapid traverse (m/min): | 50 |
| Y-axis rapid traverse (m/min): | 50 |
| Z-axis rapid traverse (m/min): | 50 |
| Through-spindle coolant: | Yes |
Equipment:
- Continuous 4th axis
- 48 additional workpiece coordinate systems
- Die and Mold package: Super GI high-speed processor for fast, accurate machining of mould parts.
- Pallet coding on 4 faces
- 2 additional pallets, 400 x 400 mm
- Oil mist extraction system
- Air dryer
- Scraper-type chip conveyor
Internal Reference:
D00205
