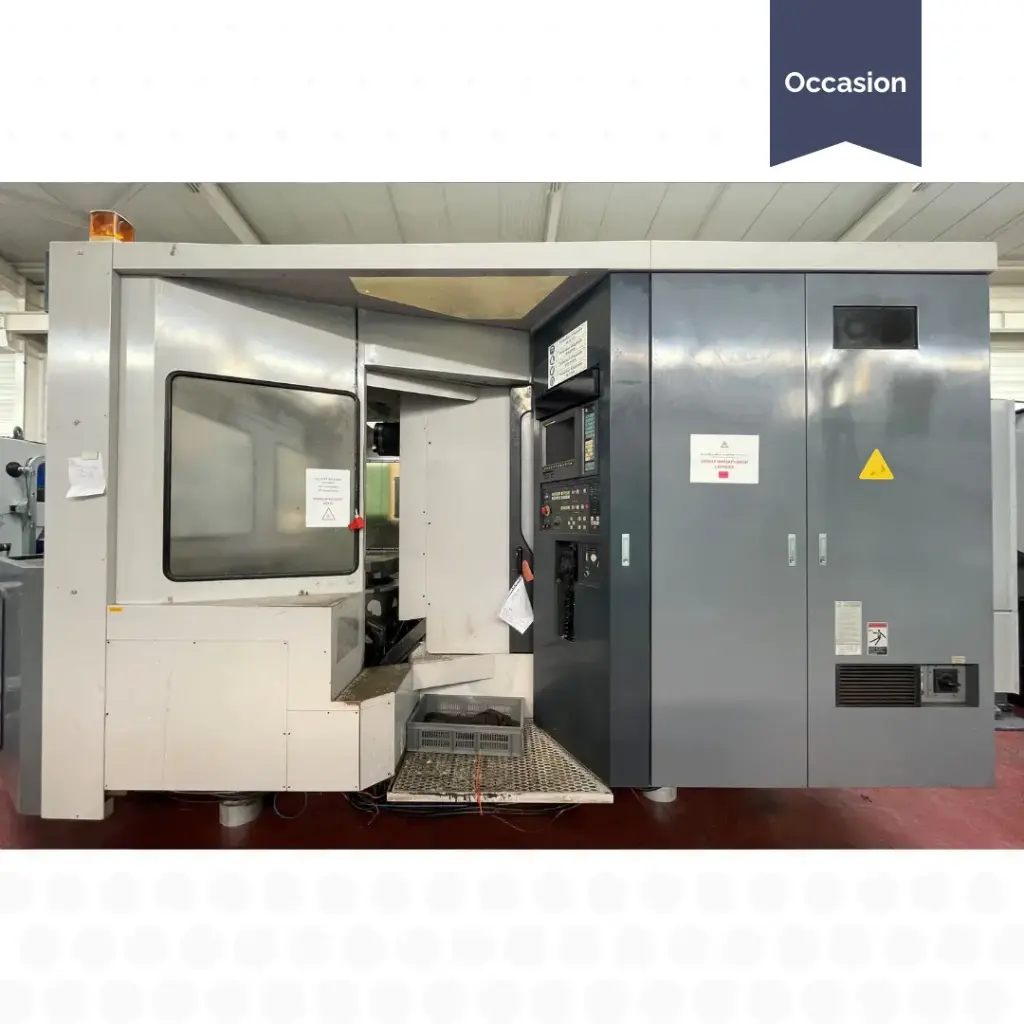

Horizontal machining centre MORI SEIKI MH63
Brand: MORI SEIKI
Reference: D00116
| CNC type: | FANUC |
| Pallet dimensions (mm): | 630 x 630 mm |
| Number of pallets: | 2 |
| X-axis longitudinal travel (mm): | 1000 |
| Y-axis cross travel (mm): | 850 |
| Z-axis vertical travel (mm): | 920 |
| Spindle speed (rpm): | 6000 |
| Number of tools: | 60 |
| Tool taper: | BT 50 |
| Overall dimensions L x W x H (mm): | 3190 x 5210 x 3119 |
| Table to spindle nose distance (mm): | 644 |
| Spindle motor power (kW): | 22/18.5 |
| Maximum workpiece weight (kg): | 1500 |
| X-axis rapid traverse (m/min): | 20 |
| Y-axis rapid traverse (m/min): | 20 |
| Z-axis rapid traverse (m/min): | 20 |
| Through-spindle coolant: | Yes |
| Tool diameter: | 240 |
| Max. tool length: | 415 |
| Max. tool weight: | 30 kg |
| Machine weight (t): | 19 |
Equipment:
- 500/800 cube
- Arnold vice
- 2 chip bins
- 1 chip extractor
- 1 conveyor
- 1 transformer
- 2 filtration units
- Documentation
Internal Reference:
D00116
