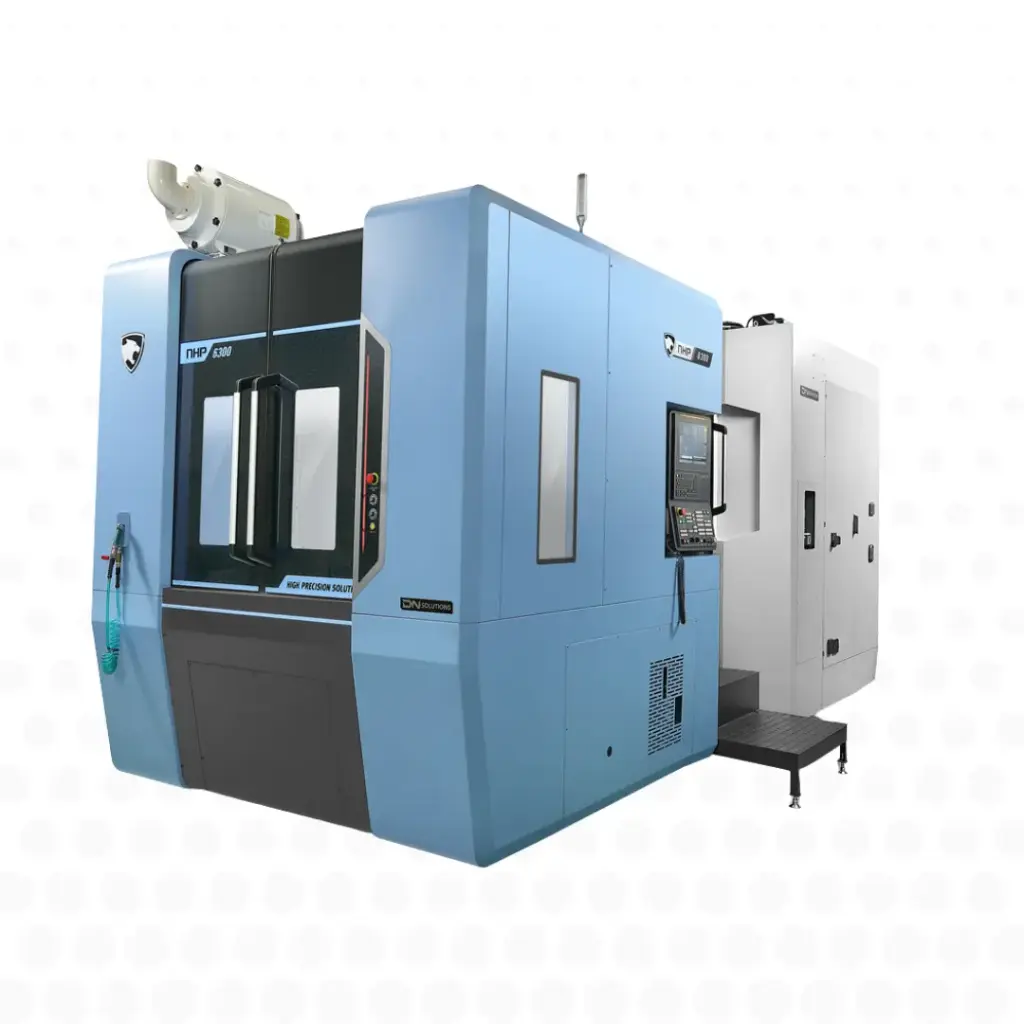

DN Solutions NHP 2nd generation horizontal machining centre

Brand: DN SOLUTIONS

The NHP 2nd series from DN SOLUTIONS is designed for industrial environments that require very high machining capacity, extreme rigidity and continuous productivity. It is aimed at industries where workpieces are large, technically complex and subject to exacting precision requirements.

Developed for heavy, intensive production, the NHP 2nd series combines a reinforced structure, advanced thermal stability and high metal removal performance, guaranteeing optimum efficiency on long cycles. It sets the standard for workshops looking for power and industrial reliability.

https://www.scomo.fr/web/image/product.template/152264/image_1920?unique=bc2c891

Key features and benefits

Very high machining capacity
Handles large workpieces with heavy metal removal.

Reinforced structural rigidity
Ensures maximum stability even under heavy cutting conditions.

Consistent industrial precision
Holds reliable tolerances on large, complex mechanical parts.

Performance in intensive production
Optimises cycles for high output in continuous manufacturing.

Efficient management of cutting forces
Improves tool life and machining quality.

Suited to large engineering parts
Ideal for large-scale industrial applications.

Reliability in demanding environments
Designed for robust, continuous operation in heavy production.

Industrial applications

The DN SOLUTIONS NHP 2nd series is particularly well suited to the following operations:

  • Horizontal machining of large mechanical parts
  • Production of components for the energy sector and heavy industry
  • Manufacture of parts for the aerospace and rail industries
  • Intensive machining of complex metal structures
  • Large-capacity subcontract machining
  • Production of large engineering parts

Availability and services

Machine available to order in a range of configurations

Support with integration into your production environment

Installation and commissioning by qualified engineers

Operator training to get you up and running quickly

Responsive after-sales service and spare parts availability

Financing options available

Request information



Request information Download data sheet
Contact Us

NHP 2nd

High-speed, high-productivity horizontal machining centre, designed to deliver optimum performance in intensive production environments.

Specifications
Models
DIMENSIONS - Height
DIMENSIONS - Length
DIMENSIONS - Weight
DIMENSIONS - Width
FEED RATES - X-Axis Rapid Traverse
FEED RATES - Y-Axis Rapid Traverse
FEED RATES - Z-Axis Rapid Traverse
MAIN SPINDLE - Max. Spindle Power
MAIN SPINDLE - Max. Spindle Speed
MAIN SPINDLE - Max. Spindle Torque
MAIN SPINDLE - Tool Taper
TABLE - Maximum Workpiece weight
TABLE - Pallet Size
TOOL STORAGE CAPACITY - No. of tool station
TRAVELS - X-Axis Travel Distance
TRAVELS - Y-Axis Travel Distance
TRAVELS - Z-Axis Travel Distance
NHP 6300 2nd
3540 mm
6850 mm
18000 kg
3775 mm
60 m/min
60 m/min
60 m/min
45 kW
12000 {15000} r/min
600 {809} N.m
ISO #50
1500 kg
630x630 mm
40 ea
1050 mm
900 mm
1000 mm
