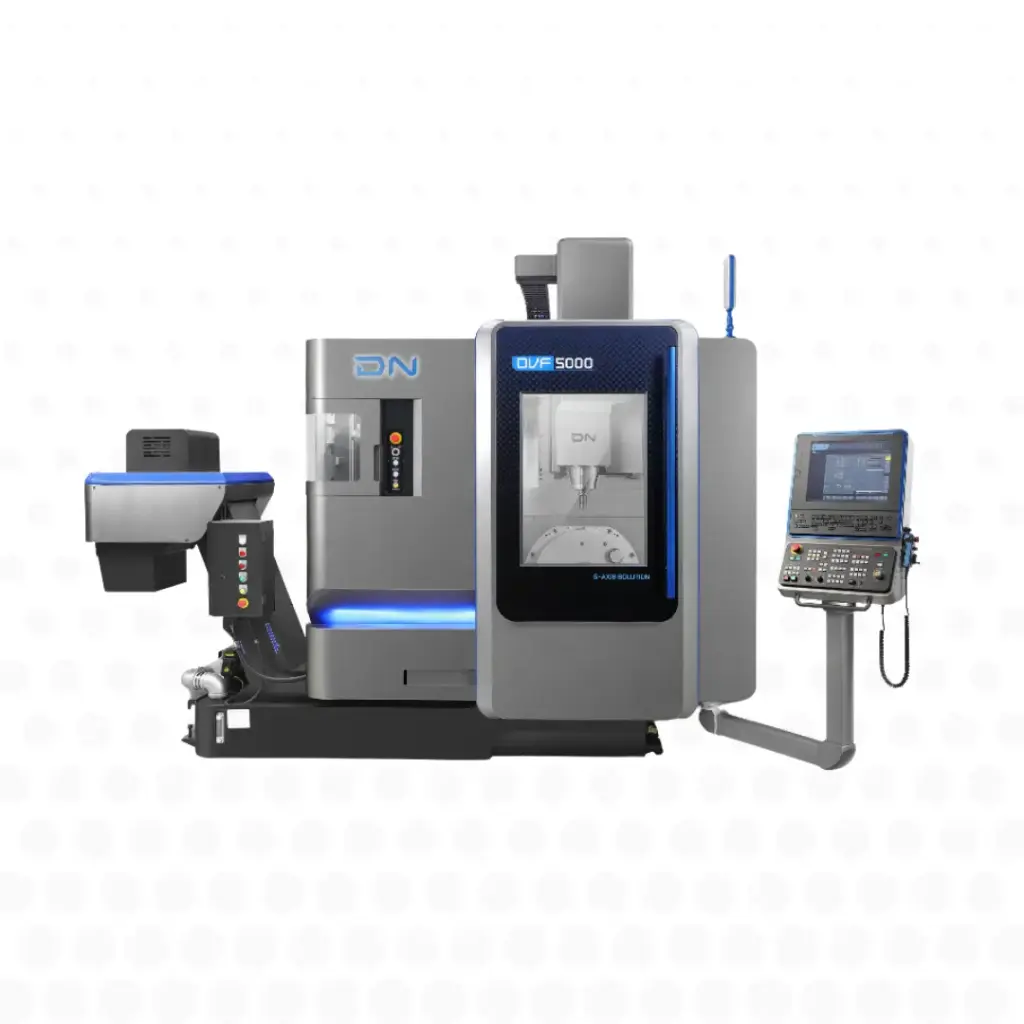

DN Solutions DVF 5000 2nd generation 5-axis machining centre
Brand: DN SOLUTIONS
Reference: DVF5000II-Advanced
AXIS TRAVELS:
- X: 650 mm
- Y: 520 mm
- Z: 480 mm
- B: 140° (-30°/+-110°)
- C: 360°
RAPID TRAVERSE:
- X Y Z: 42 m/min
- B C: 25 rpm
AXIS ACCELERATION:
- X Y Z B C: 150 ms
BALLSCREW DIAMETER AND PITCH:
- X Y Z: 40 mm DIAMETER, 16 mm PITCH
TABLE 630 x 450 mm - MAX. LOAD 400 kg
MAX. WORKPIECE SWING DIAMETER 600 mm
MAX. WORKPIECE HEIGHT 500 mm
TABLE TO SPINDLE NOSE DISTANCE: 150-630 mm
REMOTE HANDWHEEL
500 L COOLANT TANK
COOLANT AROUND THE SPINDLE: 6 NOZZLES
MACHINE ENCLOSURE COOLANT [SHOWER]: 11 NOZZLES
PUMP 1.8 kW - 2 BAR - 260 L/min
LINEAR SCALES ON THE X, Y AND Z AXES
IKC ON-BOARD SOFTWARE [INTELLIGENT KINEMATIC COMPENSATION]
INTELLIGENT THERMAL COMPENSATION:
- SPINDLE: 2 TEMPERATURE SENSORS
- MACHINE STRUCTURE: 6 TEMPERATURE SENSORS
COOLING SYSTEM FOR MACHINE COMPONENTS:
- ALL X, Y AND Z-AXIS BALLSCREWS
- ALL X, Y, Z AND C-AXIS MOTORS
- ALL X, Y AND Z-AXIS LINEAR GUIDEWAY BLOCKS
- SPINDLE AND SPINDLE BEARING ASSEMBLY
FUME EXTRACTION PREPARATION
3-COLOUR SIGNAL LIGHT
AUTOMATIC POWER-OFF
MILLING SPINDLE 30/18.5 kW - 230 Nm
15,000 rpm - BUILT-IN -
BT 40 DUAL-CONTACT TAPER [BIG PLUS]
TOOL CLAMPING CONFIRMATION SENSOR
SWITCHABLE THROUGH-SPINDLE MEDIA: AIR OR COOLANT
120-POCKET TOOL MAGAZINE
TOOL LOADING:
- VIA THE SPINDLE
- VIA THE ACCESS DOOR AT THE FRONT OF THE MACHINE
MAX. TOOL DIAMETER: 75 mm [125]
MAX. TOOL LENGTH: 300 mm
MAX. TOOL WEIGHT: 8 kg
TOOL CHANGE TIME: 1.3 s
COMPLETE PALLET LOADING/UNLOADING STATION:
- 8-PALLET AWC ROTARY STATION (Auto Workpiece Changer)
- PALLET HANDLING ARM
- LOADING/UNLOADING STATION WITH DEDICATED CNC PANEL
- COMPLETE SCHUNK ZERO-POINT SYSTEM ON MACHINE AND PALLETS
- CONTROLLED AUTOMATIC SIDE DOOR
- MEDIA SUPPLY THROUGH TABLE CENTRE WITH 6-PORT ROTARY UNION
- PROFINET/PROFIBUS ROBOT INTERFACE
- 8 PALLETS, 350 x 350 mm
- MAX. WORKPIECE SIZE: 400 mm DIA., 335 mm HEIGHT
- MAX. WORKPIECE WEIGHT: 250 kg
LEVEL III COOLANT PACKAGE:
- COOLANT GUN [2 BAR - 70 L/min]
- HINGE & SCRAPER CHIP CONVEYOR, LEFT-HAND DISCHARGE
- ADDITIONAL 140 L TANK INCLUDING:
- 70 BAR PUMP WITH PRESSURE PROGRAMMABLE IN 10 BAR STEPS
- CYCLONE FILTRATION
- COOLANT CHILLER
- SWITCHABLE THROUGH-SPINDLE MEDIA: AIR OR COOLANT
- COOLANT LEVEL SENSOR
- COOLANT FLOW SENSOR
- BELT-TYPE OIL SKIMMER
* MACHINE EX LE HAVRE
** 12-MONTH PARTS AND LABOUR WARRANTY INCLUDED
With its compact, rigid design and advanced 5-axis kinematics, the DVF 5000 Advanced Premium is ideally suited to high-precision sectors such as aerospace, medical, automotive and precision engineering.
Key features and benefits
High-precision simultaneous 5-axis machining
Produces complex parts in a single set-up, reducing repositioning and cycle times.
Compact, rigid vertical design
Ensures optimum machining stability, even in high-speed operations.
Advanced 5-axis kinematics
Delivers very smooth motion and excellent geometric accuracy.
High dynamic performance
Cuts machining times with a fast, responsive machine suited to modern production.
Superior finish quality
Produces high-quality machined surfaces on complex technical parts.
Industrial versatility
Suited to a wide range of materials and precision applications.
Optimised thermal stability
Ensures high dimensional consistency, even over long production runs.
Automation-ready
Compatible with connected production solutions and automated cells.
Technical data
- Type: Simultaneous 5-axis CNC vertical machining centre
- Brand: DN Solutions
- Model: DVF 5000 Second Generation Advanced Premium
- Design: compact, high-rigidity vertical
- Kinematics: simultaneous 5-axis machining
- Structure: optimised vibration-damping cast iron frame
- Control: advanced high-performance CNC
- Use: complex, high-precision machining
- Applications: aerospace, medical, automotive, precision engineering
Industrial applications
The DN Solutions DVF 5000 Advanced Premium 5-axis vertical machining centre is particularly well suited to the following operations:
- 5-axis machining of complex parts
- Manufacture of aerospace components
- Production of precision medical parts
- Machining of moulds and technical tooling
- High-precision automotive industry
- Advanced industrial subcontracting
Why choose this product
The DN Solutions DVF 5000 Second Generation Advanced Premium is an ideal solution for manufacturers looking for a high-performance 5-axis machining centre. It combines extreme accuracy, fast execution and mechanical stability, while simultaneous machining shortens production times.
Its modern design and advanced technology make it a strategic choice for workshops looking to increase production capacity while maintaining premium machining quality on the most complex parts.
Availability and services
Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
Internal Reference:
DVF5000II-Advanced
