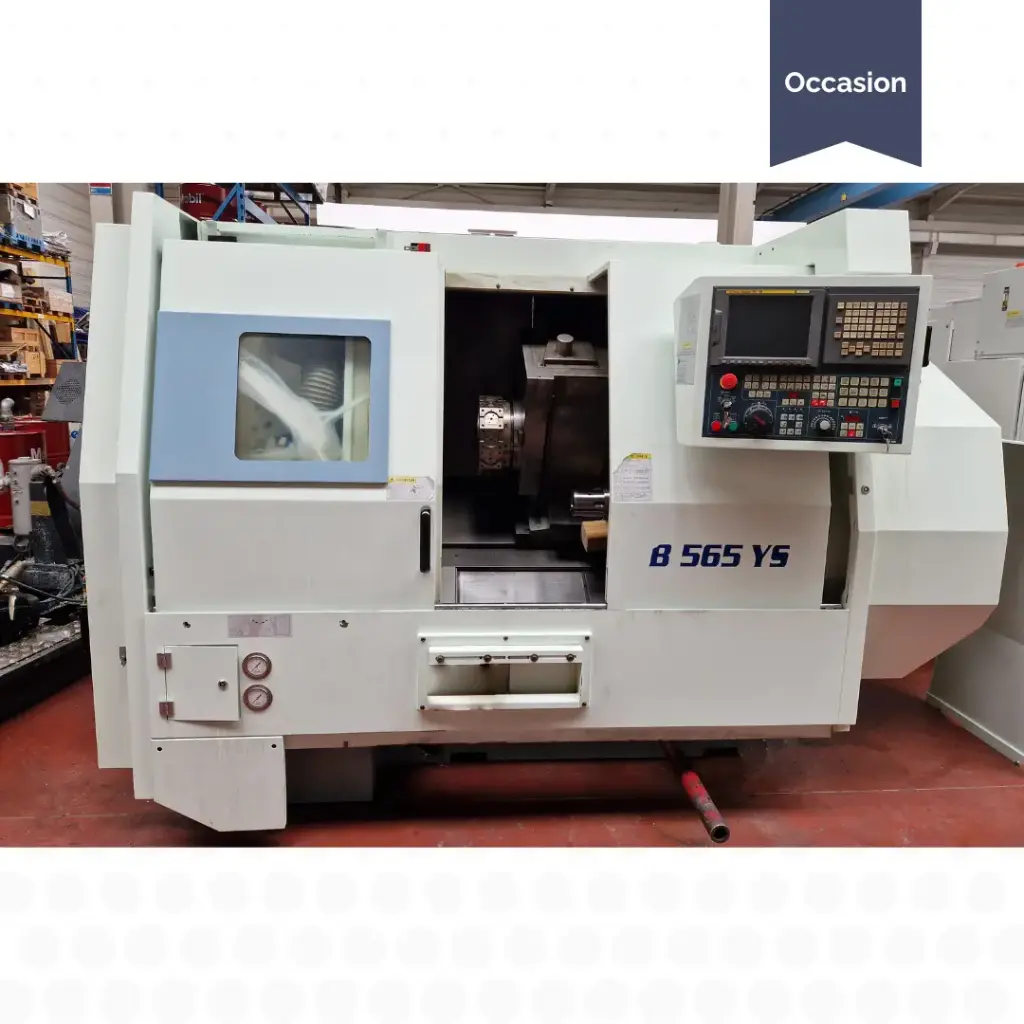

Twin-spindle CNC lathe BIGLIA B565/YS
Brand: BIGLIA
Reference: G00103
| Y-axis travel: | +55/-50 mm |
| Machine weight (t): | 5.1 T |
| - Overall dimensions L x W x H (mm): | 4240 x 2000 x 1900 |
| Number of turret stations: | 12 |
| Year: | 2007 |
| X-axis travel (mm): | 170/560 mm |
| Spindle speed (rpm): | 40-4000 rpm |
| Spindle motor power (kW): | 26 kw |
| Technology: | CNC |
| CNC type: | FANUC 18i-TB |
| Bar capacity: | 67 mm |
| Max. machining diameter (mm): | 290 mm |
| Number of turrets: | 1 |
Equipment:
- 250 l coolant tank
- Chip conveyor
- Tool probe
- Parts catcher
- Bar feeder preparation
- Collet chucks on spindles 1 & 2
- Autoblock 3-jaw chuck, 210 mm dia.
- LNS Quickload S80 short bar loader
- Live tool holders
- Static tool holders
- Machine documentation
Internal Reference:
G00103
