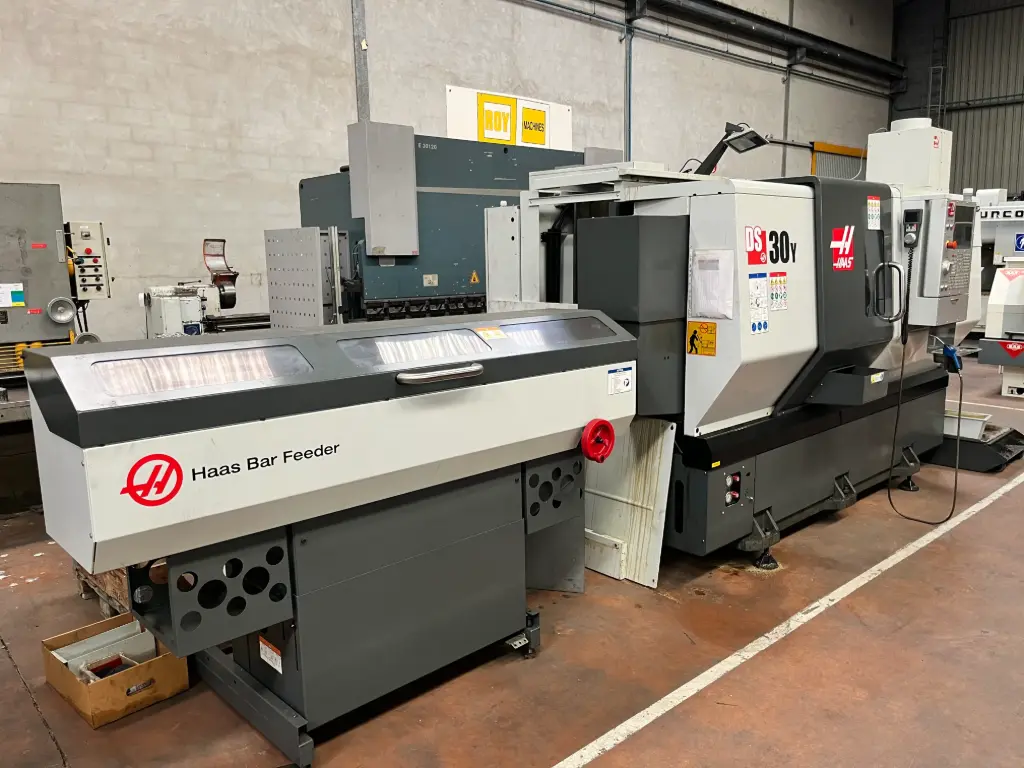

Twin-spindle lathe HAAS DS30Y
Brand: HAAS
Reference: K00009
| Technology: | CNC |
| Year: | 2020 |
| CNC type: | HAAS (FANUC) |
| Distance between centres (mm): | 826 |
| Max. machining length (mm): | 826 |
| Swing over bed (mm): | 533 |
| Max. machining diameter (mm): | 349 |
| Chuck diameter (mm): | 254 |
| X-axis longitudinal travel (mm): | 239 |
| Z-axis vertical travel (mm): | 826 |
| Y-axis cross travel (mm): | +/-51mm |
| Spindle speed (rpm): | 4500 |
| Spindle motor power (kW): | 22,4 |
| Spindle nose: | A2 -6" |
| Spindle bore (mm): | 88 |
| Bar capacity (mm): | 76 |
| Number of turrets: | 1 |
| Number of turret stations: | 12 tools |
| Spindle 2 speed (rpm): | 4000 |
| Spindle 2 motor power: | 4000 |
| Spindle 2 bar capacity: | 58,7mm |
| Spindle 2 chuck size: | 210 |
| - Overall dimensions L x W x H (mm): | 4340x 2290 x 2490 |
| Machine weight (t): | 5534 |
Equipment:
1 bar feeder
1 automatic bar feeder with spindle liners
3 axial live tools
7 radial live tool holders
9 static tool holders
1 BMT 65 tool holder
1 3-jaw chuck on the main spindle
1 3-jaw chuck on the sub-spindle
1 collet chuck for larger diameters
1 Autoblock F66 collet chuck
1 additional chuck
1 chip conveyor
1 oil mist extractor
1 workpiece probe
1 tool probe
1 automatic parts unloader
Notes:
2 live tool holders are out of order
Probe: keep an eye on hook no. 2
Internal Reference:
K00009
