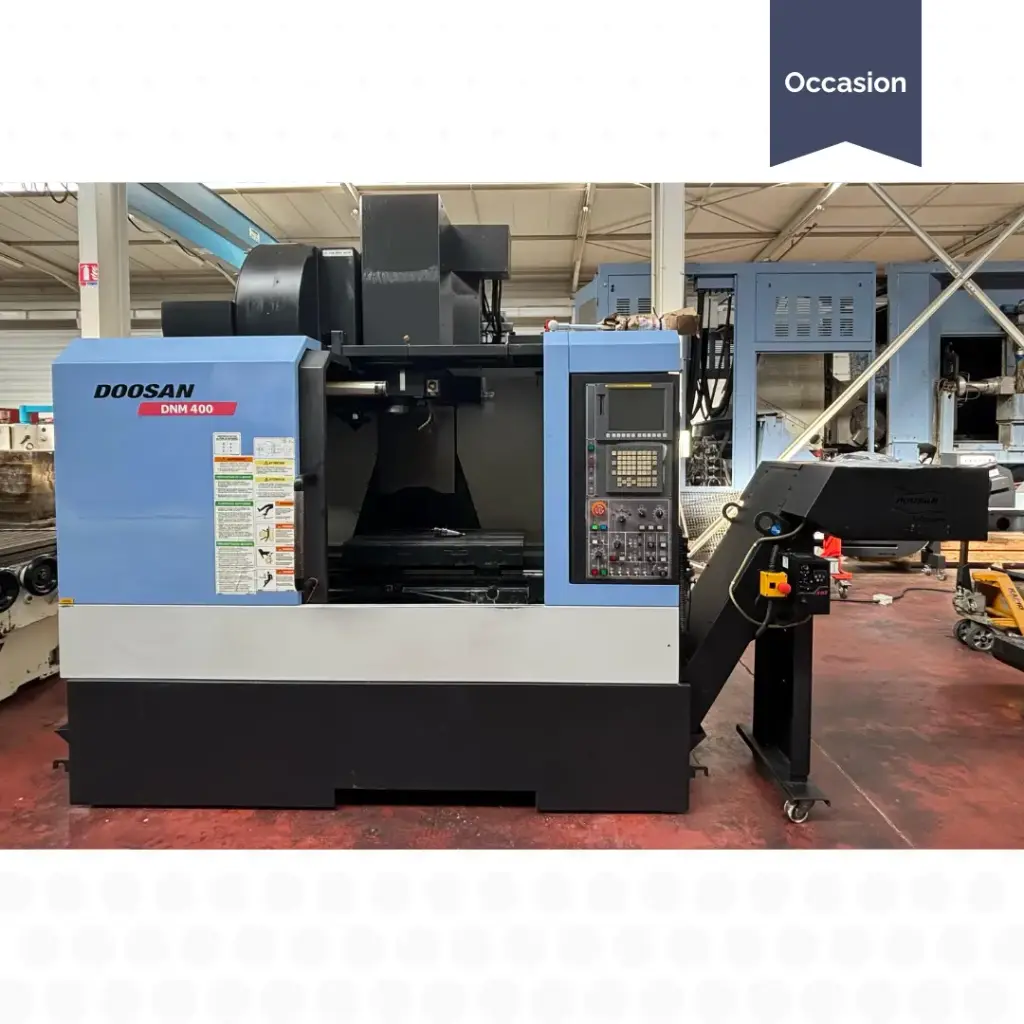

Vertical machining centre DOOSAN DNM 400
Brand: DOOSAN
Model: DNM 400
Year: 2,011
Reference: J00082
| Year: | 2011 |
| CNC type: | x |
| Table dimensions (mm): | 920 x 435 mm |
| X-axis longitudinal travel (mm): | 762 mm |
| Y-axis cross travel (mm): | 435 mm |
| Z-axis vertical travel (mm): | 510 mm |
| Spindle speed: | 8000 rpm |
| Spindle power: | 15/11 kw |
| Through-spindle coolant: | Yes |
| Number of tools: | 30 |
| Tool taper: | BT 40 |
| - Overall dimensions L x W x H (mm): | 2282 x 2615 x 2703 mm |
| Machine weight: | 5 T |
Equipment:
- 20 bar high-pressure coolant
- Oil skimmer
- 4th-axis preparation
- Tool load monitoring
- Chip conveyor:
- Approx. 49 tool holders and accessories
- Metal workbench
DOOSAN DNM 400 vertical machining centre equipped with:
Approx. 49 tool holders and accessories
Metal workbench
Internal Reference:
J00082
