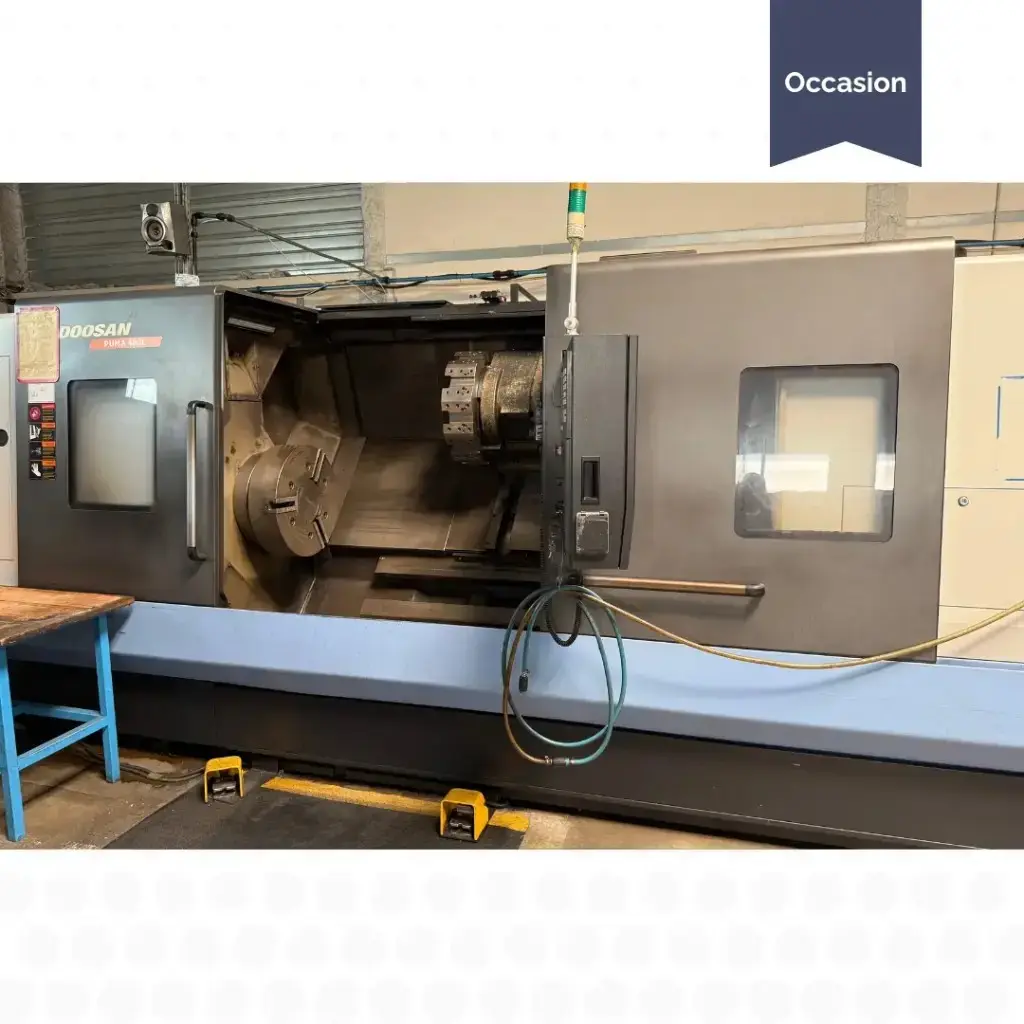

Horizontal CNC lathe DOOSAN PUMA 480L
Brand: DOOSAN
Model: PUMA 480L
Year: 2,012
Reference: K00057
| Year: | 2012 |
| CNC type: | FANUC 32i |
| Max. machining length (mm): | 2040 |
| Swing over bed (mm): | 900 |
| Swing over cross slide (mm): | 720 |
| Max. machining diameter (mm): | 650 |
| Chuck diameter (mm): | x |
| X-axis longitudinal travel (mm): | 362 |
| Z-axis vertical travel (mm): | 2155 |
| Spindle speed (rpm): | 1500 |
| Spindle motor power (kW): | 45 |
| Spindle bore (mm): | 181 |
| Bar capacity (mm): | 165 |
| Number of turrets: | 1 |
| Number of turret stations: | 10 |
| - Overall dimensions L x W x H (mm): | 5733 x 2124 x 2200 |
| Machine weight (t): | 11.55 |
Equipment:
- Oil skimmer
- Chip conveyor
- SMW Autoblock steady rest
- No tool presetter arm
Internal Reference:
K00057
