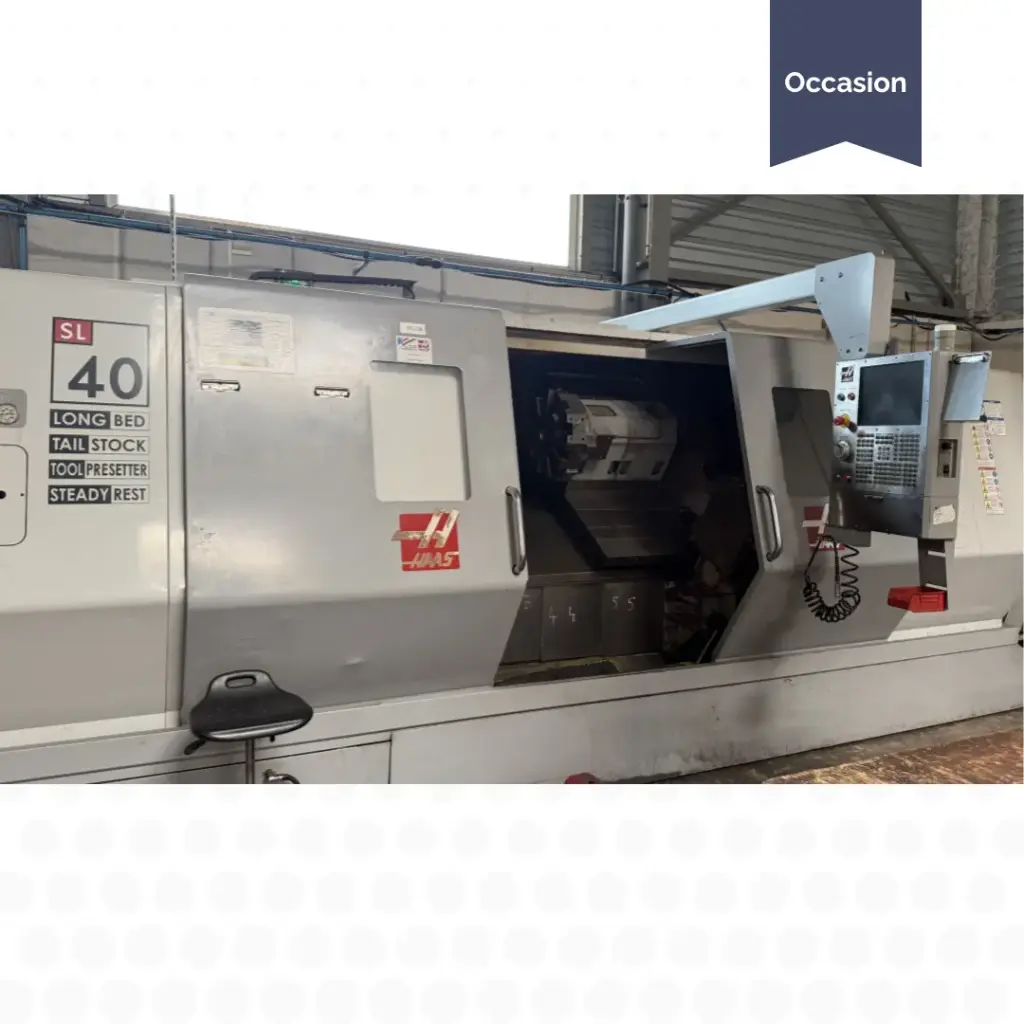

Lathe HAAS SL-40L
Brand: HAAS
Model: SL-40L
Year: 2,008
Reference: K00060
| Technology: | CNC |
| Year: | 2008 |
| CNC type: | HAAS AUTOMATION CNC |
| Distance between centres (mm): | 2261 |
| Max. machining length (mm): | 2032 |
| Swing over bed (mm): | 1016 |
| Max. machining diameter (mm): | 648 |
| Chuck diameter (mm): | 380 |
| X-axis longitudinal travel (mm): | 432 |
| Z-axis vertical travel (mm): | 2032 |
| Spindle speed (rpm): | 2400 |
| Spindle motor power (kW): | 30 |
| Spindle nose: | A2-8" |
| Spindle bore (mm): | 117 |
| Bar capacity (mm): | 102 |
| Number of turrets: | 1 |
| Number of turret stations: | 10 |
| Overall dimensions L x W x H (mm): | xxxx X xxxx X xxxx mm |
| Machine weight (t): | 14.062 |
Equipment:
- Automatic tool presetter
- Programmable tailstock
- Autoblok SLU4 MS steady rest
- Chip conveyor
Internal Reference:
K00060
