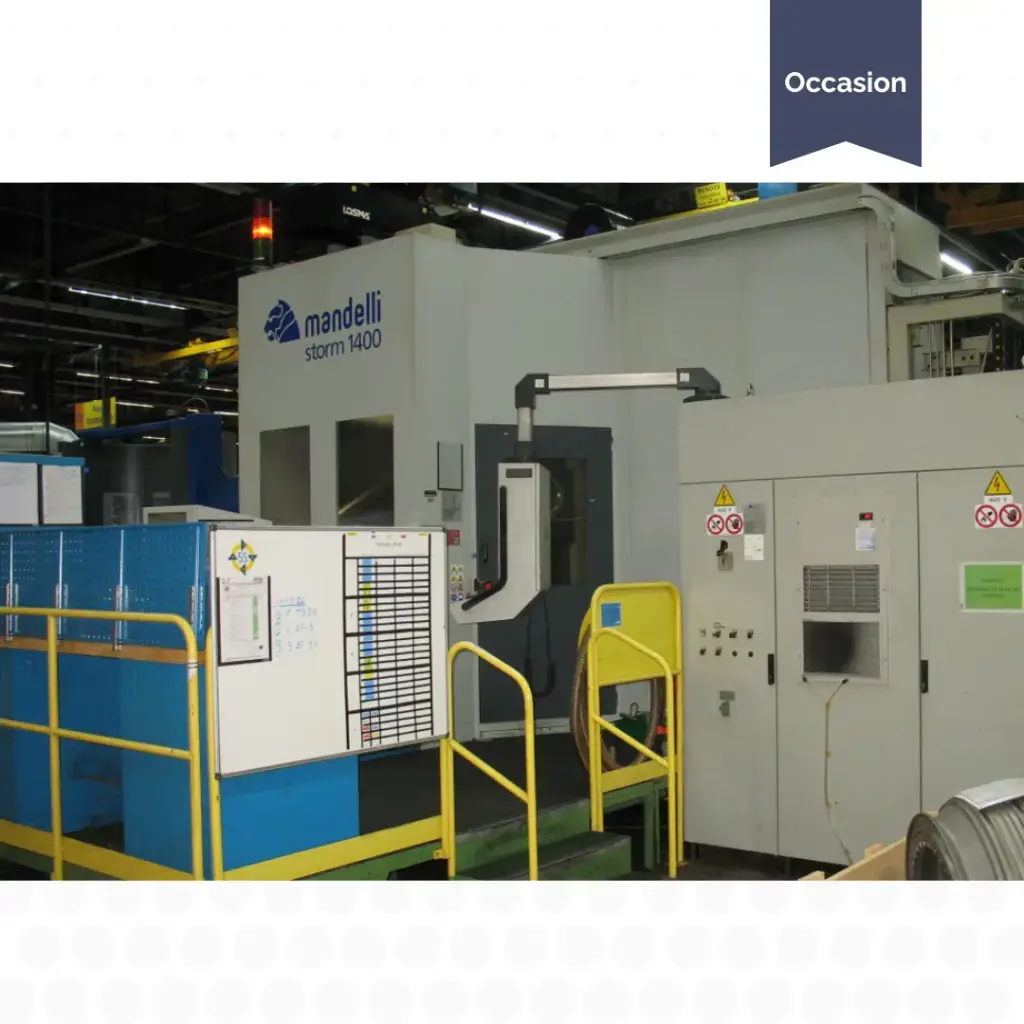

Machining centre MANDELLI STORM 1400
Brand: MANDELLI
Reference: M1611012
| Year: | 2003 |
| CNC type: | SIEMENS 840D |
| Pallet dimensions (mm): | Ø 1000 mm |
| Number of pallets: | 3 |
| X-axis longitudinal travel (mm): | 1600 |
| Y-axis cross travel (mm): | 1180 |
| Z-axis vertical travel (mm): | 1400 |
| Spindle speed (rpm): | 8000 |
| Spindle motor power (kW): | 28 |
| Number of tools: | 100 |
| Tool taper: | ISO 50 |
| Spindle taper: | BT 90 |
| Machine weight (t): | 34 |
Equipment:
- Extra-precision machine: P = 0.007 mm - Ps = 0.004 mm
- High-pressure through-spindle coolant, 60 bar
- Ballscrew-driven linear axes
- Linear scales on the X, Y and Z axes
- Belt-type chip conveyor
- 2-range gearbox - max. torque 668 Nm
- ISO 800 continuous rotary table
- U/8000 bi-directional head
- Max. workpiece Ø 1400 mm - height 1500 mm
- Max. tool Ø 140 mm with all pockets occupied
- Max. tool Ø 450 mm with adjacent pockets empty
- Max. tool length 600 mm
Internal Reference:
M1611012
