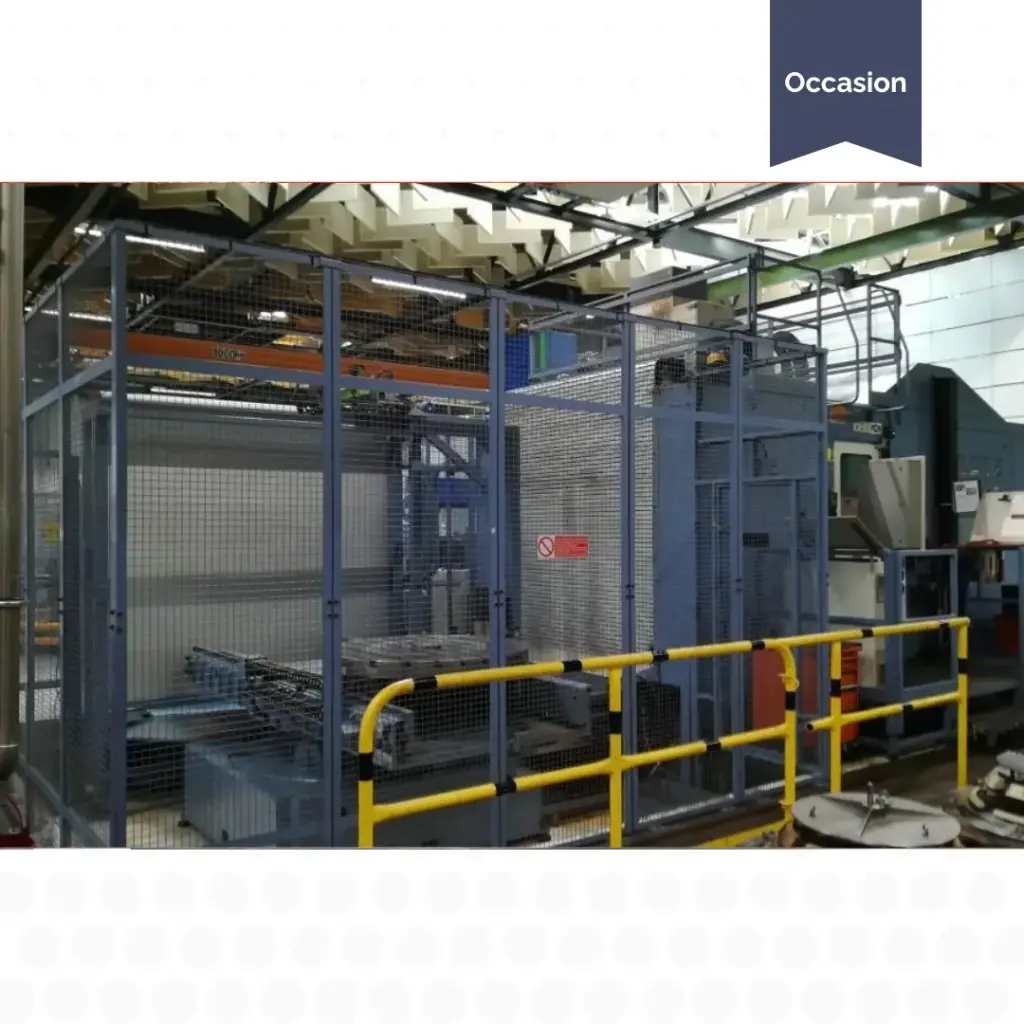

Machining centre MCM TANK 1900 MP2
Brand: TANK
Reference: D00209
| Year: | 2009 |
| Pallet dimensions (mm): | 1400 |
| Table dimensions (mm): | 630 x 800 |
| X-axis longitudinal travel (mm): | 1900 |
| Y-axis cross travel (mm): | 1400 |
| Z-axis vertical travel (mm): | 1960 |
| Spindle speed (rpm): | 6000 |
| Tool holder type: | ISO 50 |
| Tool magazine capacity: | 199 |
| Maximum workpiece weight (kg): | 2000 |
| Spindle motor power (kW): | 60 |
| X-axis rapid traverse (m/min): | 50 |
| Y-axis rapid traverse (m/min): | 50 |
| Z-axis rapid traverse (m/min): | 50 |
| Max. tool length: | 600 |
| Max. tool weight: | 35 |
Equipment:
- 5-axis tilting head
- Tool management via Balluff chip
- LOSMA Mini Master paper coolant filter
- Approx. 200 HSK 100 tool holders
- Chip conveyor
- Tool presetter
- Spare electrospindle
Internal Reference:
D00209
