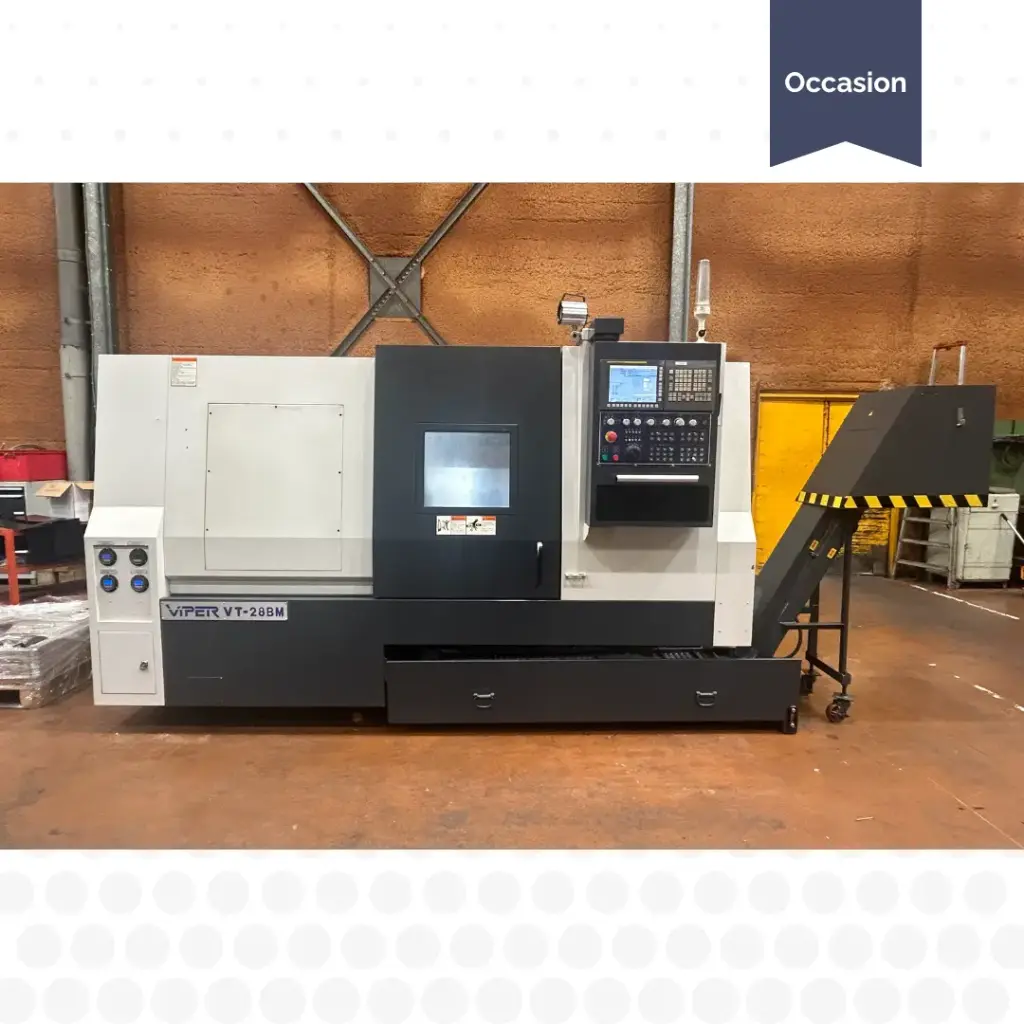

Alex Tech VT 28 BM Lathe
Brand: ALEX-TECH
Model: VIPER 28 BM
Year: 2,017
Reference: T26003
| Technology: | C-axis |
| Year: | 2017 |
| CNC type: | FANUC SERIES Oi-TF |
| Conversational programming: | YES, MANUAL GUIDE |
| Distance between centres (mm): | 540 mm |
| Max. machining length (mm): | 500 mm |
| Swing over bed (mm): | 480 mm |
| Max. machining diameter (mm): | 480 mm |
| Chuck diameter (mm): | 305 mm |
| Hydraulic chuck clamping: | YES |
| X-axis travel (mm): | 240+40 |
| Z-axis travel (mm): | 550 mm |
| Spindle speed: | 3500 rpm |
| Spindle bore (mm): | 87 mm |
| Bar capacity: | 77 mm |
| Spindle motor power : | 26 KW |
| Number of turrets: | 1 |
| Number of turret stations: | 12 tools |
| Overall dimensions: | 4964 X 1951 X 2028 mm |
| Machine weight: | 6900 KG |
| Additional tooling: | large tooling package |
Internal Reference:
T26003
