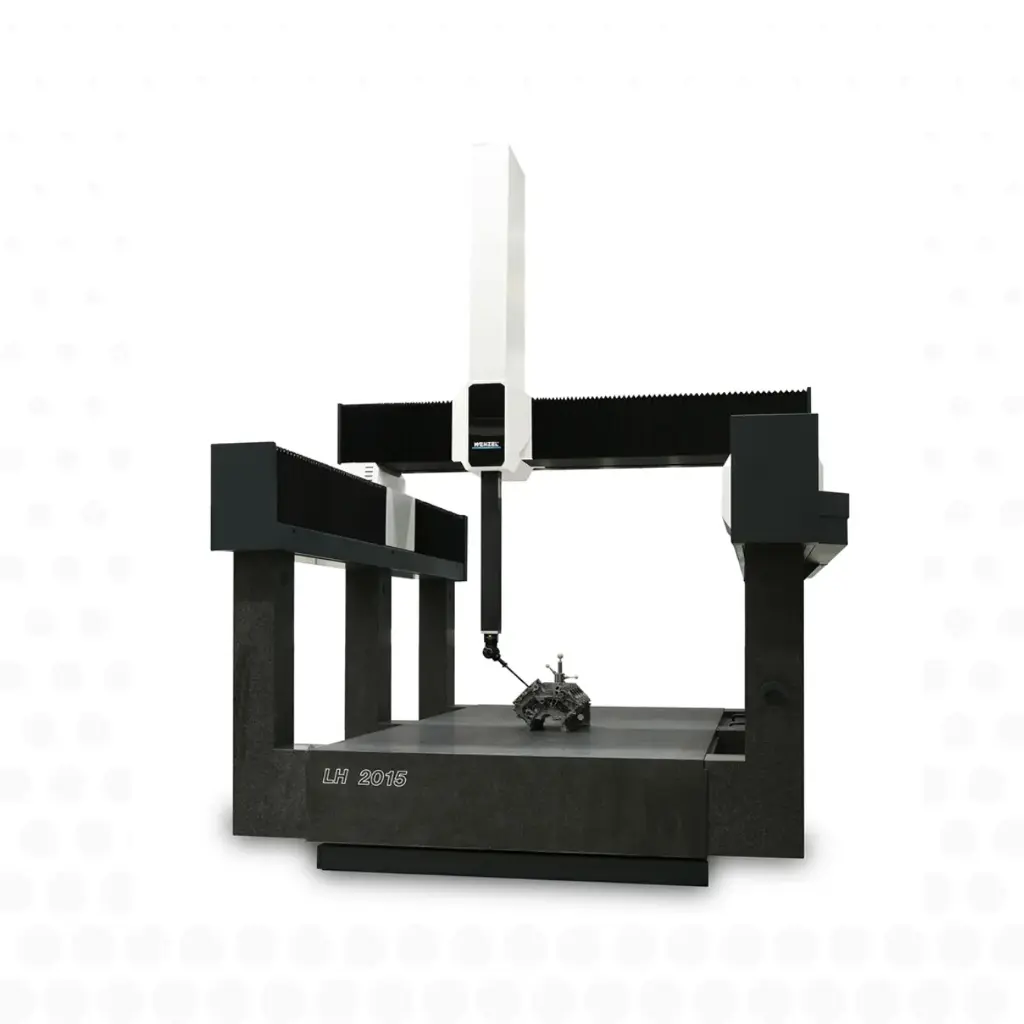

Wenzel LH Gantry coordinate measuring machine

A solution designed for the most demanding industrial environments.

Key features and benefits

• High measuring accuracy even over very large volumes, thanks to a rigid, optimised gantry architecture
• Modular design allowing the machine to be matched to the specific dimensions of your parts
• Excellent thermal stability for reliable results in real-world industrial conditions
• Able to measure heavy, bulky components with no compromise on performance
• Can be fitted with multiple sensor technologies (touch probes, scanning, optical)
• Shorter inspection times thanks to optimised travel speeds
• Robust mechanical structure for long service life and lasting repeatability
• Ideal for inspection on the shop floor as well as in the metrology room
• Compatible with modern digitalisation and Industry 4.0 standards

Technical data

• Type: Bridge-type coordinate measuring machine (CMM)
• Architecture: Gantry design for large dimensions
• Measuring ranges: Configurations customised to industrial requirements
• Structure: High-precision guideways with materials optimised for stability
• Measuring systems: High-resolution measuring scales
• Sensors: Compatible with touch probes, scanning and optical systems
• Load capacity: Suited to large, heavy parts
• Environment: For use on the shop floor or in a temperature-controlled room, depending on configuration
• Software: Compatible with advanced metrology solutions for analysis and reporting

Industrial applications

• Aerospace: inspection of structures, fuselages and large-scale parts
• Energy: inspection of turbines, power plant components and heavy structures
• Automotive: measurement of chassis, tooling and bulky parts
• General engineering: inspection of one-off parts or large production runs
• Structural steelwork: dimensional verification of complex assemblies

Why choose this product

The LH Gantry does more than measure. It gives your quality process a framework at scale.

Where conventional machines reach their limits, this solution opens up new possibilities: measuring bigger and faster, with consistent accuracy. It fits into an overall drive for industrial performance, reducing uncertainty and giving you confidence in your decisions.

It is a strategic investment for manufacturers who refuse to choose between size, precision and productivity.

Availability and services

Machine available to order in a choice of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
