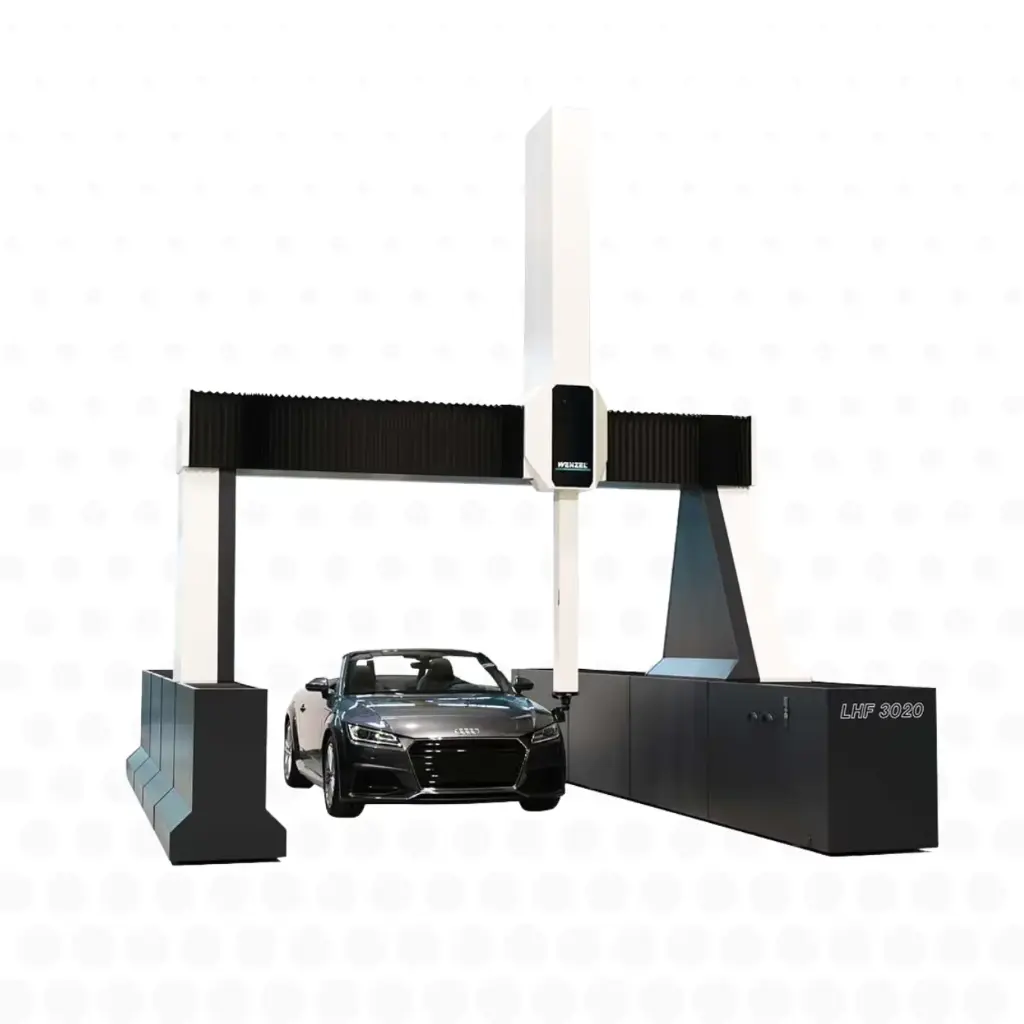

Wenzel LHF coordinate measuring machine
Brand: WENZEL
The WENZEL LHF series redefines large-scale industrial metrology.
Designed for inspecting large, complex workpieces, this gantry-type coordinate measuring machine (CMM) delivers stable accuracy, even in the most demanding production environments.
A solution designed to industrialise quality control without compromise.
Key features and benefits
- Measurement of very large parts with high metrological accuracy
- Gantry architecture (gantry CMM) optimised for stability and repeatability
- Ideal for the dimensional inspection of heavy, bulky components
- Robust platform designed for intensive industrial environments
- Compatible with the leading 3D metrology software on the market
- Flexible configuration to suit production requirements
- Shorter inspection times and a smoother quality workflow
- Technology built on the know-how of WENZEL Group, a world leader in metrology
Technical data
The LHF series is a large gantry-type coordinate measuring machine for industrial 3D inspection applications.
- Type: Bridge-type coordinate measuring machine (CMM)
- Architecture: Floor-mounted gantry structure for bulky parts
- Field of application: large-scale metrology and high-precision inspection
- Capacity: suited to long, wide or heavy parts (configurations vary by project)
- Measuring technology: touch probing and/or scanning (depending on configuration)
- Integration: compatible with standard industrial metrology software
- Environment: designed for production shop floors and quality control laboratories
Industrial applications
The LHF is aimed at sectors where precision over large dimensions is critical:
- Aerospace and space (structures, panels, mechanical assemblies)
- Automotive and transport (chassis, sub-assemblies, jigs)
- Energy (turbines, heavy industrial components)
- Industrial machinery and large tooling
- Quality control on the shop floor or in the metrology room
Why choose this product
The LHF series is not just a measuring machine. It is a quality control infrastructure.
It turns a slow, manual verification process into a digital, accurate and repeatable measurement workflow. For manufacturers, that means less uncertainty, greater control and documented quality at every stage.
Choosing the LHF means building metrological performance into the heart of production.
Availability and services
Machine available to order in a choice of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
BENEFITS
Customer-specific measuring volume | Data compatibility with other WENZEL systems | Loading systems | Automation solutions
Touch-trigger probe systems | 3-axis or 5-axis scanning | Optical sensors
Low air consumption | Reliable, low-cost spare parts | Less recalibration effort
Customer-specific measuring volume | Data compatibility with other WENZEL systems | Loading systems | Automation solutions
Temperature-stable structure | Hand-crafted | Air bearing guides on all axes
