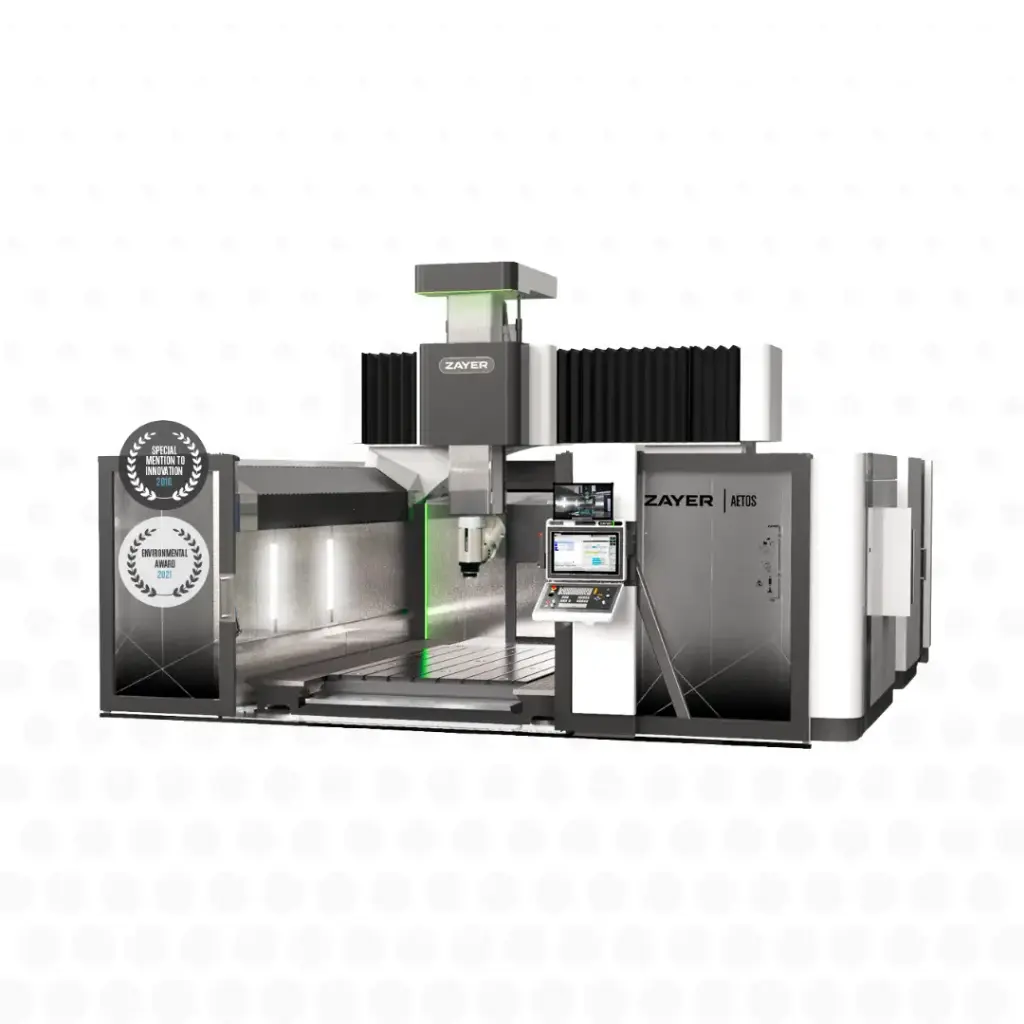

Zayer Aetos gantry milling machine
Brand: ZAYER
The ZAYER AETOS was designed to raise the standard in large-format machining, with a remarkable combination of rigidity, precision and metal removal power. This high-performance gantry machining centre meets the needs of manufacturers working on complex, heavy and business-critical parts. Thanks to its advanced architecture and exceptional stability, the AETOS delivers consistent performance even in the most intensive machining operations. A premium solution designed for workshops seeking productivity, reliability and precision in highly technical applications.
Key features and benefits
Ultra-rigid gantry architecture
Ensures excellent stability during heavy-duty and high-precision machining operations.
Large machining capacity
Allows large, complex workpieces to be machined under optimum conditions.
Top-level precision
Guarantees reliable, repeatable results on technical machining work.
Advanced machining dynamics
Optimises cutting performance and reduces production times.
Industrial versatility
Compatible with a wide variety of materials and mechanical engineering applications.
Designed for intensive machining
A machine developed for long-term operation in demanding industrial environments.
Scalable technology
Machining heads can be integrated, along with advanced multi-process solutions.
Automation-ready
Compatible with modern production lines and connected environments.
Technical data
- Machine type: CNC gantry machining centre
- Brand: ZAYER
- Model: AETOS
- Architecture: High-rigidity moving gantry
- CNC control: advanced industrial CNC
- Structure: Reinforced frame for large-format machining
- Applications: Heavy-duty and high-precision machining
- Materials machined: steel, cast iron, aluminium, engineering alloys
- Technology: High-performance, large-capacity machining centre
- Condition: New machine
Industrial applications
The ZAYER AETOS is particularly well suited to the following applications:
- Machining of large mechanical parts
- Aerospace and defence industry
- Manufacture of energy-sector components
- Machining of structures for the rail industry
- Manufacture of complex moulds and tooling
- Heavy engineering and industrial equipment
- Production of high value-added technical parts
- High-precision subcontract machining
Why choose this product
The ZAYER AETOS is an ideal solution for manufacturers looking for a high-performance gantry machining centre that combines production capacity, precision and stability on large workpieces.
Its robust design, advanced technology and scope for upgrades meet the needs of modern workshops that want to safeguard their production while boosting their machining performance.
Availability and services
Machine available to order with bespoke configurations
Project study and personalised technical support
Installation and commissioning by specialist engineers
Operator training and production support
Responsive after-sales service and spare parts availability
Financing solutions tailored to industrial investment
Basic configuration
The Zayer Aetos is a
Gantry milling machine with moving gantry, fixed table and fixed crossrail.
Technical specifications
The technical specifications of the Aetos machining centre are as follows:
- Table length - 2,500 - 3,500 - 4,500 ... mm
- Table width - 2,000 (2,500 - 3,000 - 3,500 - 4,000)* mm
- Longitudinal travel - 3,000 - 4,000 - 5,000 ... mm
- Cross travel - 2,000 (2,500 - 3,000 - 3,500 - 4,000)* mm
- Vertical travel - 1,200 (1,500)* mm
Accessories
Accessories for the Aetos machining centre include:
- Chip conveyor
- Tool magazines - 30 (20-40-60)*
- Coolant tank, 22 + 5 bar
The heads compatible with the Aetos machining centre are:
- 45-degree head, 360 x 1 degree and 360 x 1 degree
- 45-degree head, 360,000 positions / continuous rotation (optional)
- Automatic 30-degree head, 360,000 positions / continuous rotation (optional)
-
40° head with motorised spindle, 42 kW, 15,000 rpm (optional)
- Direct-output head (optional)
Specifications:
All the machine's structural components are made of cast iron, designed using finite element analysis and thermally symmetrical, guaranteeing thermal and geometric stability during milling and delivering a high-quality surface finish.
Cross rail structure:
The arch-shaped gantry structure allows forces to be distributed across the column slideways, which are set at 90 degrees.
Cross guiding:
The design and layout of the guideways help distribute the forces in the most demanding machining operations.
Vertical guiding:
The adjustable preload of the guiding system allows the geometry to be readjusted over time.
- General engineering
- Moulds and roughing tools
