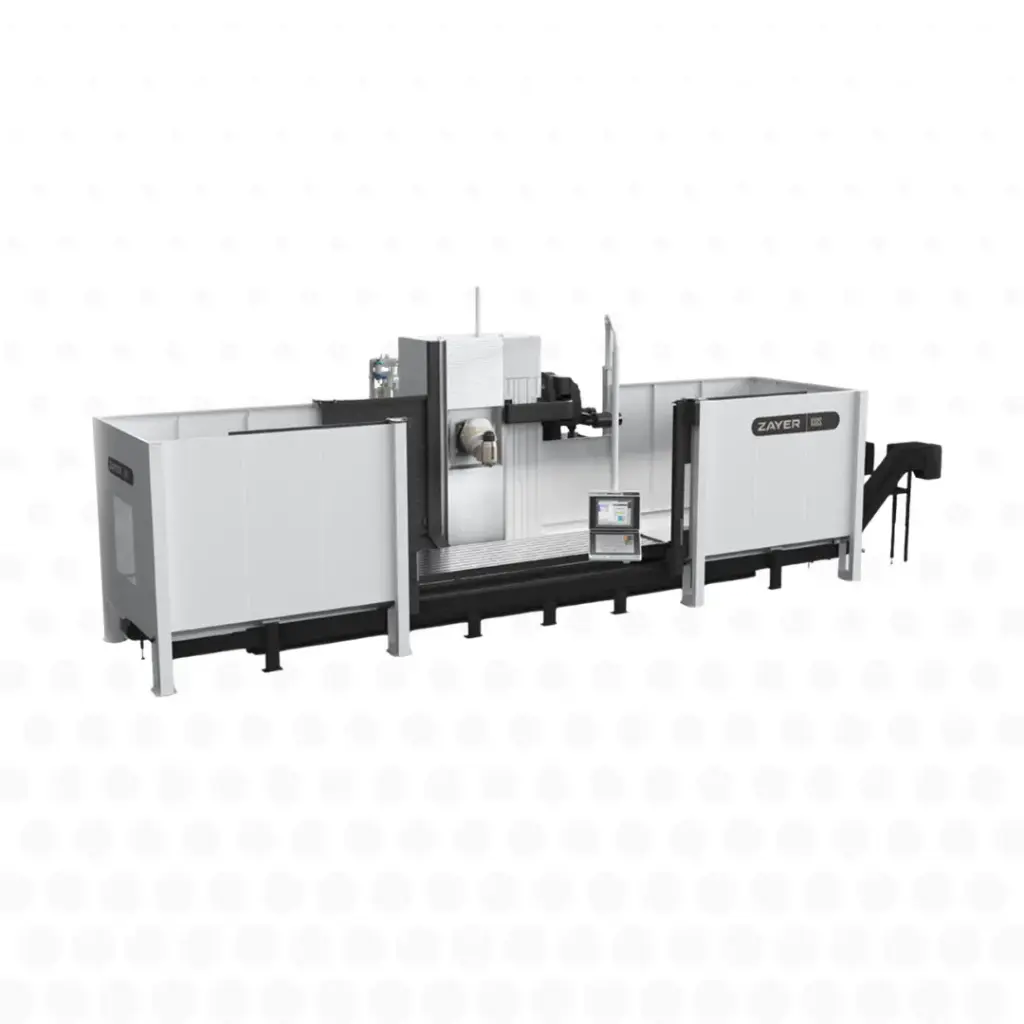

Zayer XIOS bed-type milling machine
Brand: ZAYER
The ZAYER XIOS embodies a new generation of large bed-type machining centres, designed to combine structural strength, lasting precision and production flexibility. It is aimed at industries that demand absolute reliability on large, complex workpieces.
Designed for intensive production environments, the XIOS range stands out for a structure optimised for thermal and dynamic stability, guaranteeing consistent machining quality even over long cycles. It is a strategic solution for manufacturers of high added-value technical parts.
Key features and benefits
High-rigidity bed-type architecture
Provides maximum stability when machining large workpieces and complex structures.
Industrial machining accuracy
Holds tight tolerances over long, demanding operations.
Optimised thermal stability
Reduces drift to guarantee consistent quality over time.
Performance in continuous production
Designed to withstand long cycles and intensive workshop use.
Large machining capacity
Suitable for large workpieces that call for rigidity and cutting power.
Flexible integration
Compatible with a variety of configurations and industrial production requirements.
Automation-ready
Prepared for integration into modern, connected production environments.
Technical data
- Type: Large bed-type machining centre
- Architecture: reinforced high-rigidity structure
- Axes and kinematics: multi-axis configurations depending on version
- Capacity: machining of large workpieces
- Optimisation: advanced thermal and dynamic stability
- Integration: compatible with automation and production lines
Industrial applications
The XIOS ZAYER machining centre is particularly well suited to the following operations:
- Machining of large workpieces
- Manufacture of complex mechanical structures
- Production for the aerospace and space industries
- Energy industry (hydro, wind, nuclear)
- Machining of moulds and heavy tooling
- High-precision subcontract machining
Why choose this product
The ZAYER XIOS is a benchmark solution for manufacturers looking for a reliable, accurate large-capacity machining centre. It combines structural rigidity, thermal stability and sustained performance, delivering high productivity with no compromise on quality.
Availability and services
Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
Features:
Basic configuration
The Zayer XIOS is a horizontal ram-type milling machine with a fixed bed and moving table.
Technical specifications
The technical specifications of the XIOS are as follows:
- Table length - 3000, 4000, 5000 mm
- Table width 1000 (1300)* mm
- Longitudinal travel - 3000, 4000, 5000 mm
- Cross travel - 1200 mm (1600)* mm
- Vertical travel - 1600
mm (2000, 2500, 3000)* mm
Accessories
Accessories for the XIOS machining centre:
- Tool magazines
- Chip conveyor
- Coolant tank, 22 + 5 bar
- Full enclosure, open at the top
- Full enclosure with roof (optional)
Heads compatible with the XIOS machining centre:
- Automatic 45-degree head, 360,000 positions
- 45-degree head, 360 x 1° and 360 x 1° (optional)
- Automatic 30-degree head, 360,000 positions / continuous rotation (optional)
- 45-degree head with continuous rotation (optional)
- 30-degree head with electrospindle, 33 kW, 18,000 rpm (optional)
- Automatic 30-degree head, 360,000 positions (optional)
Related applications for the XIOS machining centre:
- Aerospace
- General engineering
- Moulds and roughing tools
Direct-drive ballscrew with counterbalance cylinder:
Vertical drive formed by the ballscrew and direct-drive motor.
Ram and saddle guideways:
The ram is guided directly on a generously sized cast-iron saddle, allowing higher cutting forces.
Guide shoes and slideways:
6 guiding points allowing the geometry to be readjusted over time
