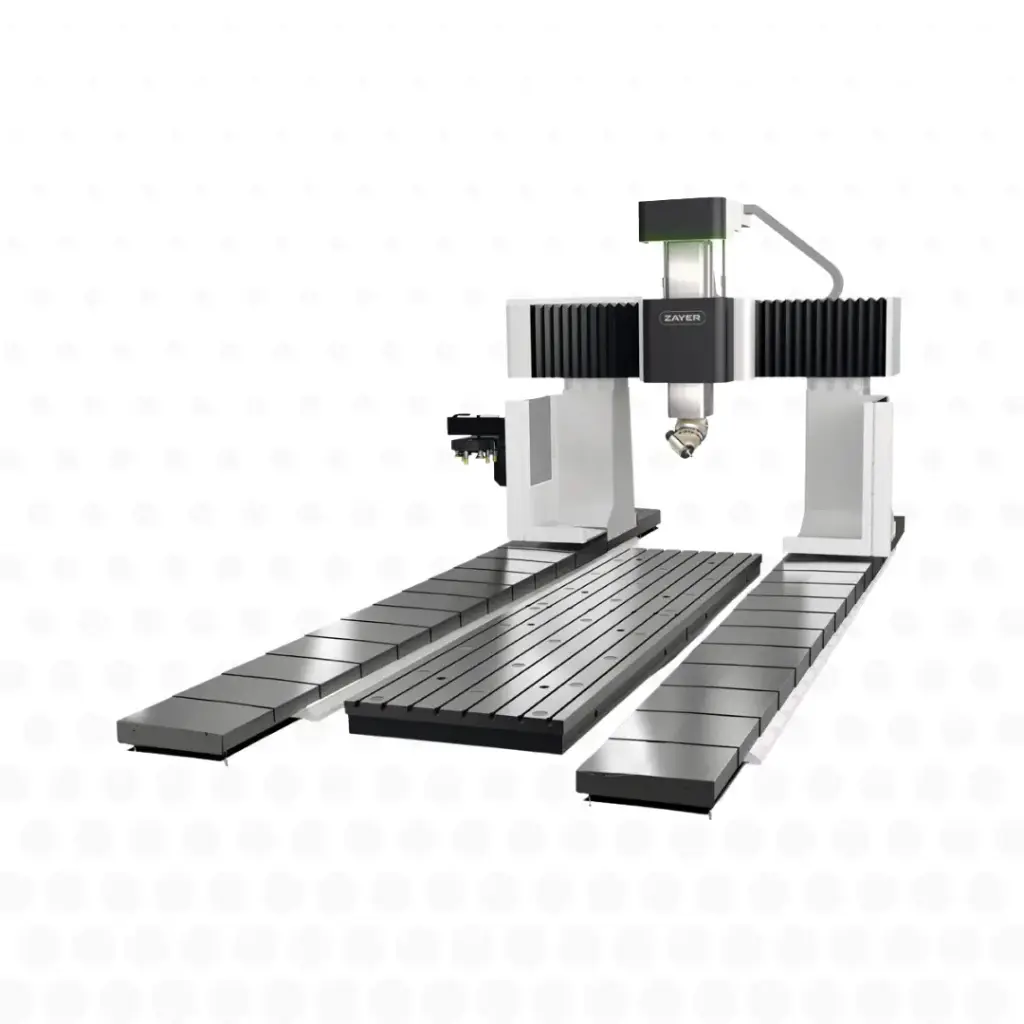

Zayer Altea gantry milling machine
Brand: ZAYER
The ZAYER ALTEA is a high-performance gantry machining centre designed to meet the needs of industries working with very large workpieces. Its moving-gantry design offers the ideal combination of machining capacity, precision and productivity.
Built for intensive industrial environments, the ALTEA guarantees exceptional stability across the entire working area, even during heavy-duty machining. It is a strategic choice for companies looking for a machine that can produce complex parts with reliability, repeatability and consistent performance.
Key features and benefits
Gantry design (moving gantry)
Provides high machining capacity with excellent access to the workpiece.
High structural rigidity
Ensures optimum stability in heavy-duty and high-precision machining.
Large working envelope
Ideal for machining very large workpieces.
Consistent precision
Guarantees controlled tolerances over the machine’s full travel.
Performance in intensive production
Designed for long cycles with high reliability.
Machining versatility
Suited to a wide range of complex industrial applications.
Integration into automated environments
Compatible with connected, automated production solutions.
Technical data
- Type: Gantry machining centre (moving gantry)
- Design: moving gantry for large dimensions
- Axes: multi-axis configurations available to suit requirements
- Capacity: machining of large, heavy workpieces
- Structure: optimised for rigidity and dynamic stability
- Technology: advanced management of thermal deformation
- Configuration: modular to suit applications and sectors
- Integration: compatible with automation and modern industrial production
Industrial applications
The ZAYER ALTEA is particularly well suited to the following operations:
- Machining of very large workpieces
- Manufacture of complex mechanical structures
- Aerospace industry and heavy equipment
- Energy sector (wind, hydro, nuclear)
- Production of large moulds and tooling
- High added-value subcontract machining
Why choose this product
The ZAYER ALTEA is an ideal solution for manufacturers looking for a gantry machining centre that combines high capacity, precision and robustness. Its moving-gantry design optimises the machining of large workpieces while guaranteeing consistent performance, making this machine a strategic choice for demanding production work.
Availability and services
Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
Basic configuration
The Zayer Altea is a
Moving-gantry milling machine with fixed table and fixed cross rail.
Technical specifications
The technical specifications of the Altea machining centre are as follows:
- Table length - 4,500 - 5,500 ... 20,500 ... mm
- Table width - 2,000 (2,500 - 3,000)* mm
- Longitudinal travel - 4,000 - 5,000 ... 20,000 ...
- Cross travel - 3,350 (3,850 - 4,350)*
- Vertical travel - 1,200 (1,500)*
Accessories
The accessories for the Altea machining centre are:
- Chip conveyor
- Tool magazines - 30 (40-60)*
- Coolant tank, 22 + 5 bar
- Head changer (optional)
- Pendulum machining (optional)
- Operator platform (optional)
The heads compatible with the Altea machining centre are:
- Automatic 45-degree head, 360,000 positions
- 45-degree head with continuous rotation (optional)
- Automatic 30-degree head, 360,000 positions / continuous rotation (optional)
- Direct-output head (optional)
- "L" head (optional)
- 30-degree head with motorised spindle, 360,000 positions
- 40-degree head with electrospindle, 42 kW, 15,000 rpm (optional)
Specifications:
A state-of-the-art machine, designed with the latest technologies to guarantee rigidity and thermal stability, with a smaller footprint and no compromise on equipment.
Time optimisation:
A choice of tool magazine solutions to reduce machining times.
Cross guideways:
The design and layout of the guideways help distribute the forces in the most demanding machining operations.
Vertical guideways:
The adjustable preload of our guideway system allows the geometry to be readjusted over time.
- Rail
