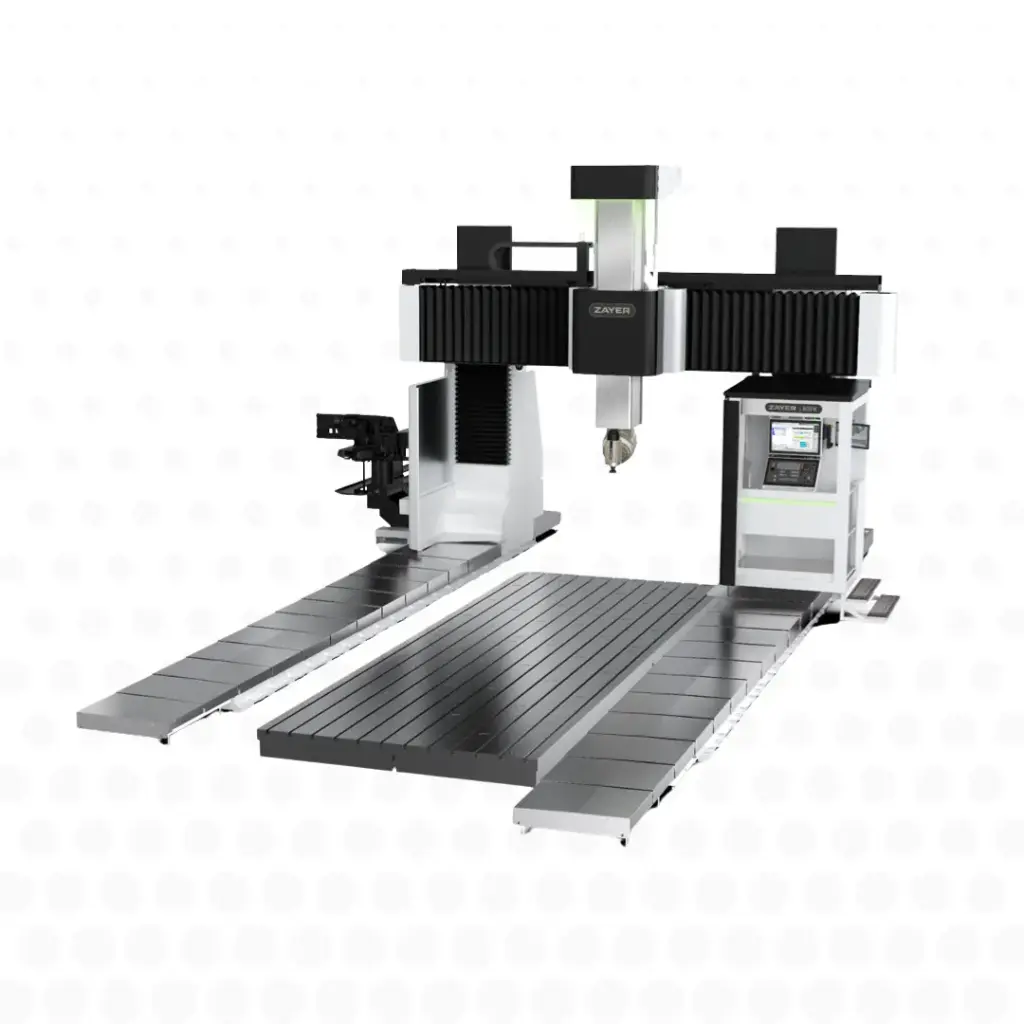

Zayer Altea W gantry milling machine
Brand: ZAYER
The ZAYER ALTEA W is a high-capacity gantry machining centre designed to push back the limits of large-part machining. Its moving-gantry design, combined with a W-axis, allows substantial machining depths while maintaining a high level of precision.
Built for the most demanding industrial environments, the ALTEA W offers exceptional stability and great machining flexibility, even on large, complex workpieces. It is aimed at manufacturers looking for a solution that can handle heavy-duty operations with reliability, performance and repeatability.
Key features and benefits
Gantry design with W-axis
Provides greater machining depth and better access to complex areas.
High machining capacity
Ideal for working on large, tall workpieces.
High structural rigidity
Ensures optimum stability in intensive and high-precision machining.
Multi-axis precision
Guarantees consistent results on complex geometries.
Heavy-duty machining performance
Designed for demanding cutting conditions and extended cycles.
Optimised thermal stability
Maintains consistent machining quality over the long term.
Industrial versatility
Suited to a wide range of advanced technical applications.
Automation-ready
Fits into modern, connected production environments.
Technical data
- Type: Gantry machining centre (moving gantry)
- Design: moving gantry with W-axis for extended travel
- Axes: multi-axis configurations available to suit requirements
- Capacity: machining of large, tall workpieces
- Structure: optimised for rigidity, precision and heavy-duty machining
- Technology: advanced management of dynamic and thermal stresses
- Configuration: modular to suit sectors and applications
- Integration: compatible with automation and advanced industrial production
Industrial applications
The ZAYER ALTEA W is particularly well suited to the following operations:
- Machining of very large, very tall workpieces
- Manufacture of complex mechanical structures
- Energy industry (wind, hydro, nuclear)
- Aerospace sector and heavy equipment
- Production of large moulds and tooling
- High added-value subcontract machining
Why choose this product
The ZAYER ALTEA W is a strategic choice for manufacturers looking for a gantry machining centre that combines high capacity, machining depth and high precision. The integrated W-axis offers a decisive advantage for complex workpieces, while guaranteeing consistent performance in the most demanding production environments.
Availability and services
Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
Basic configuration
The Zayer Altea W is a
Gantry milling machine with moving gantry, table and moving cross rail.
Technical specifications
The technical specifications of the Altea W machining centre are as follows:
- Table length - 4,500 - 5,500 ... 20,500 ... mm
- Table width - 2,000 (2,500 - 3,000)* mm
- Longitudinal travel - 4,000 - 5,000 ... 20,000 ...
- Cross travel - 3,350 (3,850 - 4,350)*
- Vertical travel - 1,200 (1,500)*
Accessories
The accessories for the Altea W machining centre are:
- Chip conveyor
- Tool magazines - 30 (40-60)*
- Coolant tank, 22 + 5 bar
- Head changer (optional)
- Pendulum machining (optional)
- Operator platform (optional)
The heads compatible with the Altea W machining centre are:
- Automatic 45-degree head, 360,000 positions
- 45-degree head with continuous rotation (optional)
- Automatic 30-degree head, 360,000 positions / continuous rotation (optional)
- Direct-output head (optional)
Specifications:
Maximum flexibility for a gantry machine, with optimised space and accessibility in complex workpieces.
- Thermal stability
- Flexibility
- Rigidity
- Pendulum machining
Moving cross rail:
Programmable W-axis, used as a positioning axis, allowing the workpiece to be machined with the utmost precision.
Cross guideways:
The design and layout of the guideways help distribute the forces in the most demanding machining operations.
Vertical guideways:
The adjustable preload of our guideway system allows the geometry to be readjusted over time.
A state-of-the-art machine, designed with the latest technologies, that guarantees rigidity and thermal stability, reducing the installation space required without sacrificing any equipment.
