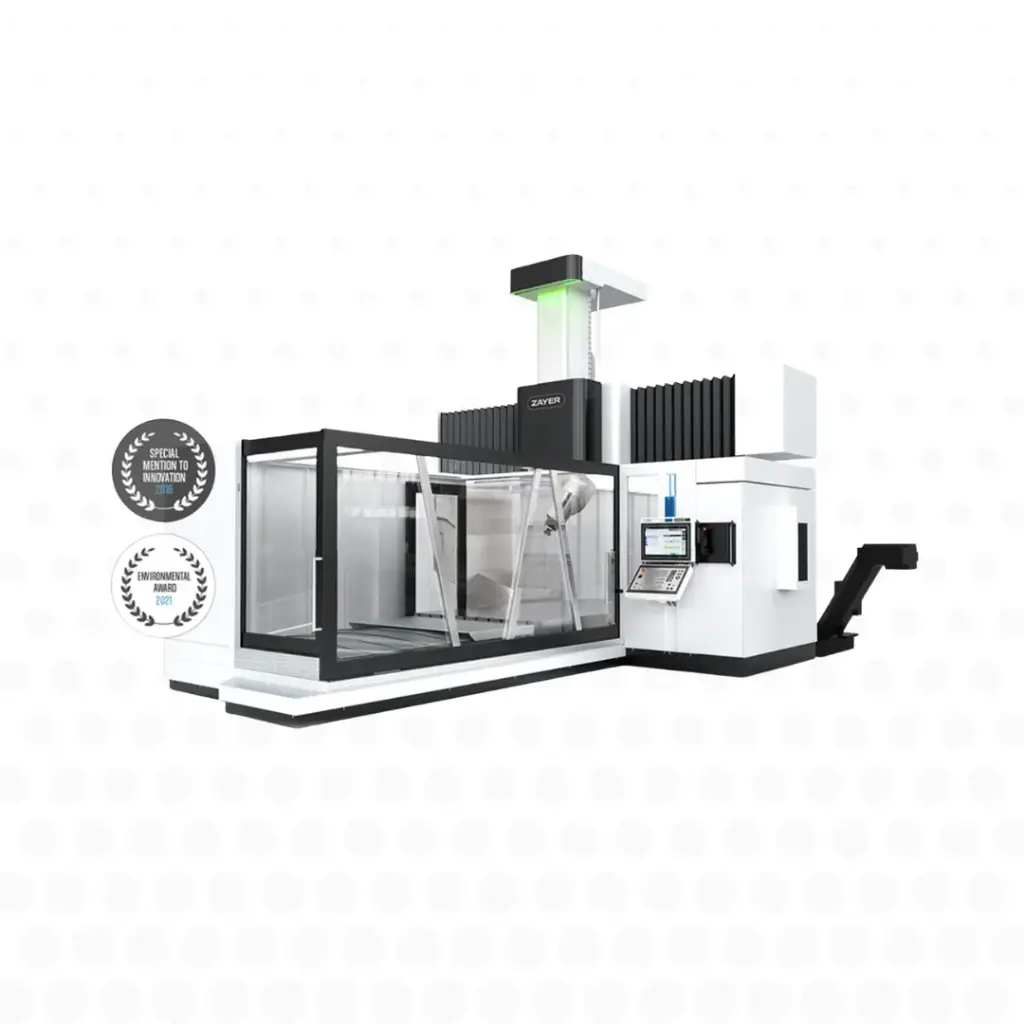

Zayer Arion bridge-type milling machine
Brand: ZAYER
The ZAYER ARION range is a premium gantry machining centre solution dedicated to machining very large workpieces with a high level of precision and stability. Designed for the most demanding industrial applications, it combines a robust structure with optimised dynamic performance.
Built for intensive production environments, the ARION range guarantees consistent machining quality on large workpieces while maximising productivity. It is aimed at manufacturers looking for a machine that can handle heavy, complex, high added-value applications.
Key features and benefits
High-rigidity gantry design
Ensures exceptional stability when machining very large workpieces.
High machining capacity
Lets you work on large workpieces with consistent precision.
Heavy-duty machining performance
Designed to withstand demanding, intensive cutting conditions.
High industrial precision
Guarantees tight tolerances even on complex structures.
Optimised thermal stability
Maintains consistent machining quality over long cycles.
Flexible configuration
Adapts to the specific needs of different industrial sectors.
Automation-ready
Fits into modern, connected production environments.
Technical data
- Type: Gantry machining centre
- Design: gantry structure for large dimensions
- Axes: multi-axis configurations depending on version
- Capacity: machining of very large workpieces
- Structure: designed for heavy-duty, high-precision machining
- Technology: optimised dynamic and thermal stability
- Configuration: modular to suit industrial applications
- Integration: compatible with automation and connected production
Industrial applications
The ZAYER ARION range is particularly well suited to the following operations:
- Machining of very large workpieces
- Manufacture of complex mechanical structures
- Aerospace industry and heavy equipment
- Energy sector (wind, hydro, nuclear)
- Production of large moulds and tooling
- High added-value subcontract machining
Why choose this product
The ZAYER ARION range is a strategic choice for manufacturers looking for a gantry machining centre that combines power, precision and reliability. Its robust design and its ability to sustain consistent performance make it an ideal solution for demanding production work and very large workpieces.
Availability and services
Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
Basic configuration
The Arion is a
fixed-gantry milling machine with fixed cross rail and moving table.
Technical specifications
The technical specifications of the Arion machining centre are as follows:
- Table length - 3,000-4,000 mm
- Table width - 1,600 (2,000) mm
- Longitudinal travel - 3,000 - 4,000 mm
- Cross travel - 2,600 (3,100)* mm
- Vertical travel -
1,200 (1,500)* mm
Accessories
Accessories for the Arion machining centre:
- Chip conveyor
- Coolant tank, 22 + 5 bar
- Head changer (optional)
- Rotary table (optional)
- Full enclosure with roof (optional)
Heads compatible with the Arion machining centre:
- Automatic 45-degree head, 360,000 positions
- 45-degree head with continuous rotation (optional)
- Automatic 30-degree head, 360,000 positions / continuous rotation (optional)
- 30-degree head with motorised spindle, 33 kW, 18,000 rpm
- 40-degree head with electrospindle, 42 kW, 15,000 rpm (optional)
- Twist head with motorised spindle
Specifications:
A gantry milling machine ideal for medium- and high-speed machining, optimising production thanks to easy access for workpiece loading. A range of accessories can be fitted.
3 guideways on the bed:
Zayer includes a third, central guideway to provide better support and greater working capacity with very heavy workpieces.
Cross guideways:
The design and layout of the guideways help distribute the forces in the most demanding machining operations.
Vertical guideways:
The adjustable preload of our guideway system allows the geometry to be readjusted over time.
