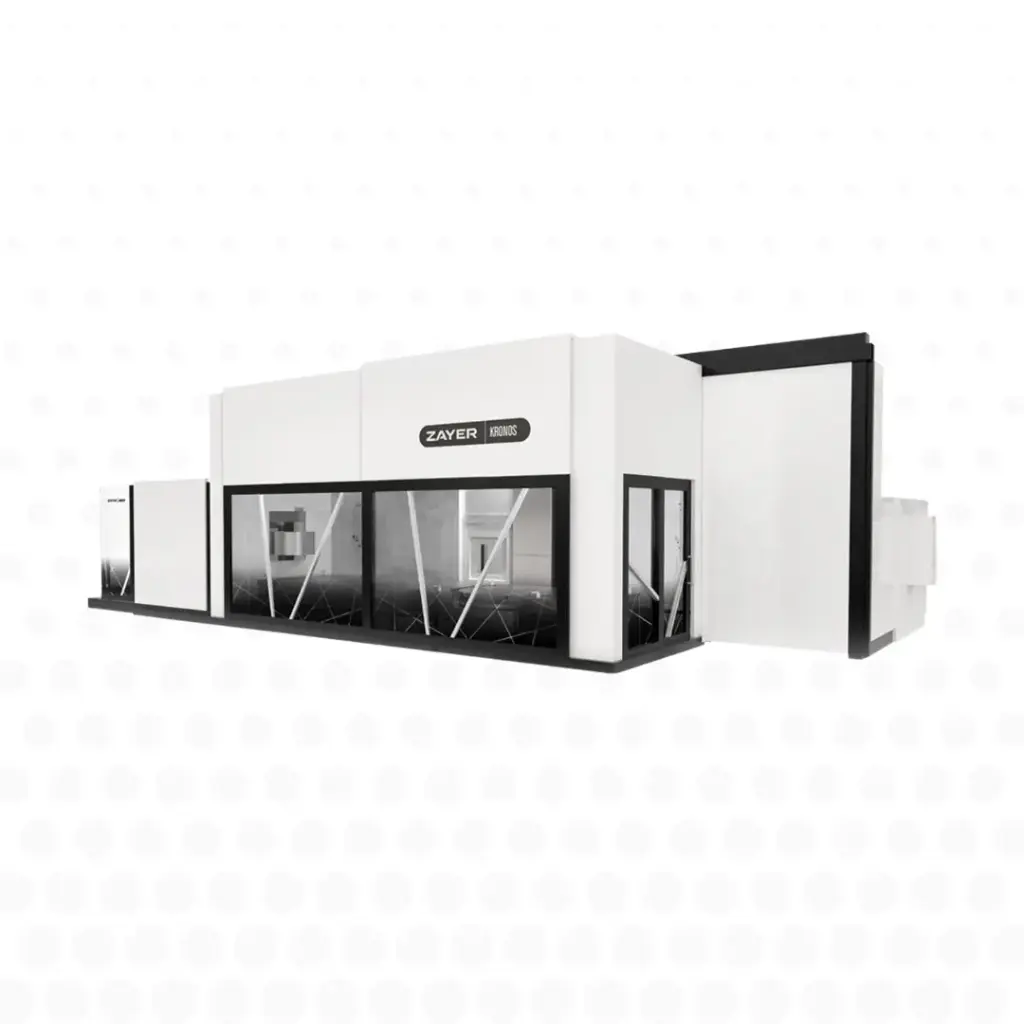

Zayer Kronos milling machine
Brand: ZAYER
The ZAYER KRONOS is a high-performance travelling column machining centre designed for machining large workpieces to the highest standards of precision and productivity. Built for intensive industrial environments, it combines a robust architecture with long axis travels, ideal for long and bulky workpieces.
Thanks to its advanced design, the KRONOS maintains consistent machining quality over the full travel while optimising cycle times. It stands out as a strategic solution for manufacturers seeking power, reliability and flexibility in their large-format machining operations.
Key features and benefits
Long-travel travelling-column design
Allows long workpieces to be machined with excellent accessibility and flexibility.
High structural rigidity
Ensures optimum stability for heavy-duty machining operations.
Consistent accuracy over large dimensions
Holds controlled tolerances along the full length of the workpiece.
Heavy-duty machining performance
Built to withstand long cycles in continuous production.
Extended machining capacity
Suited to bulky workpieces and complex structures.
Optimised productivity
Cuts cycle times thanks to efficient kinematics and smooth axis movements.
Integration into modern industrial environments
Compatible with automation and connected production solutions.
Technical data
- Type: Travelling-column machining centre
- Design: travelling column with long longitudinal travel
- Axes: multi-axis configurations to suit industrial requirements
- Capacity: machining of long, large workpieces
- Structure: designed for heavy-duty, high-precision machining
- Technology: optimised dynamic and thermal stability
- Integration: compatible with automation and production lines
Industrial applications
The ZAYER KRONOS is particularly well suited to the following operations:
- Machining of long workpieces and mechanical structures
- Manufacture of heavy industrial equipment
- Energy industry (wind, hydro, nuclear)
- Production of aerospace components
- Machining of chassis, frames and metal structures
- Large-format subcontract machining
Why choose this product
The ZAYER KRONOS is an ideal solution for manufacturers looking for a reliable, high-performance large-capacity machining centre. Its travelling-column design optimises the machining of long workpieces while ensuring accuracy and productivity, making it a strategic choice for workshops focused on performance and quality.
Availability and services
Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
Basic configuration
The Kronos is a modern travelling-column milling machine with an innovative design, featuring ZAYER's latest advances.
Technical specifications
The technical specifications of the Kronos machining centre are as follows:
- Longitudinal travel - 3,000 - 4,000 ... 7,000 mm
- Cross travel - 1,200 (1,600)* mm
- Vertical travel - 1,600 (2,000)* mm
Accessories
The accessories for the Kronos are:
- Tool magazine
- Full enclosure with roof
- 1 swan-neck conveyor
- Coolant tank, 22 + 5 bar (optional)
- Rotary table (milling / turning) (optional)
The heads compatible with the Kronos are:
- Automatic 45-degree head, 360,000 positions
- 45-degree head with continuous rotation (optional)
- Automatic 30-degree head, 360,000 positions / continuous rotation (optional)
- 45-degree head, 360 x 1° and 360 x 1° (optional)
- 30-degree head with motorised spindle, 33 kW, 18,000 rpm (optional)
- 40-degree head with electrospindle, 42 kW, 15,000 rpm (optional)
- Direct-output head (optional)
- Direct-output head with motorised spindle (optional)
- Direct-output head with gear reduction (optional)
- L-shaped head (optional)
- Extended L-shaped head (optional)
- L-shaped head with gear reduction (optional)
Specifications:
Multi-tasking machine featuring the latest ZAYER advances, with an integrated rotary table and a wide range of applications, including turning and 5-axis machining. An outstanding solution for the most modern production requirements.
Counterbalance cylinder and direct-drive ball screw:
Vertical drive made up of the ball screw and direct-drive motor. Direct or telescopic counterbalance cylinder to reduce the overall height of the assembly.
Ram and saddle guiding:
The ram is guided in the generously dimensioned cast-iron saddle, allowing higher machining forces.
Multi-tasking machine with a sealed machining area for a clean working environment:
- Geometric stability
- Flexibility
- Rigidity
- Pendulum machining
