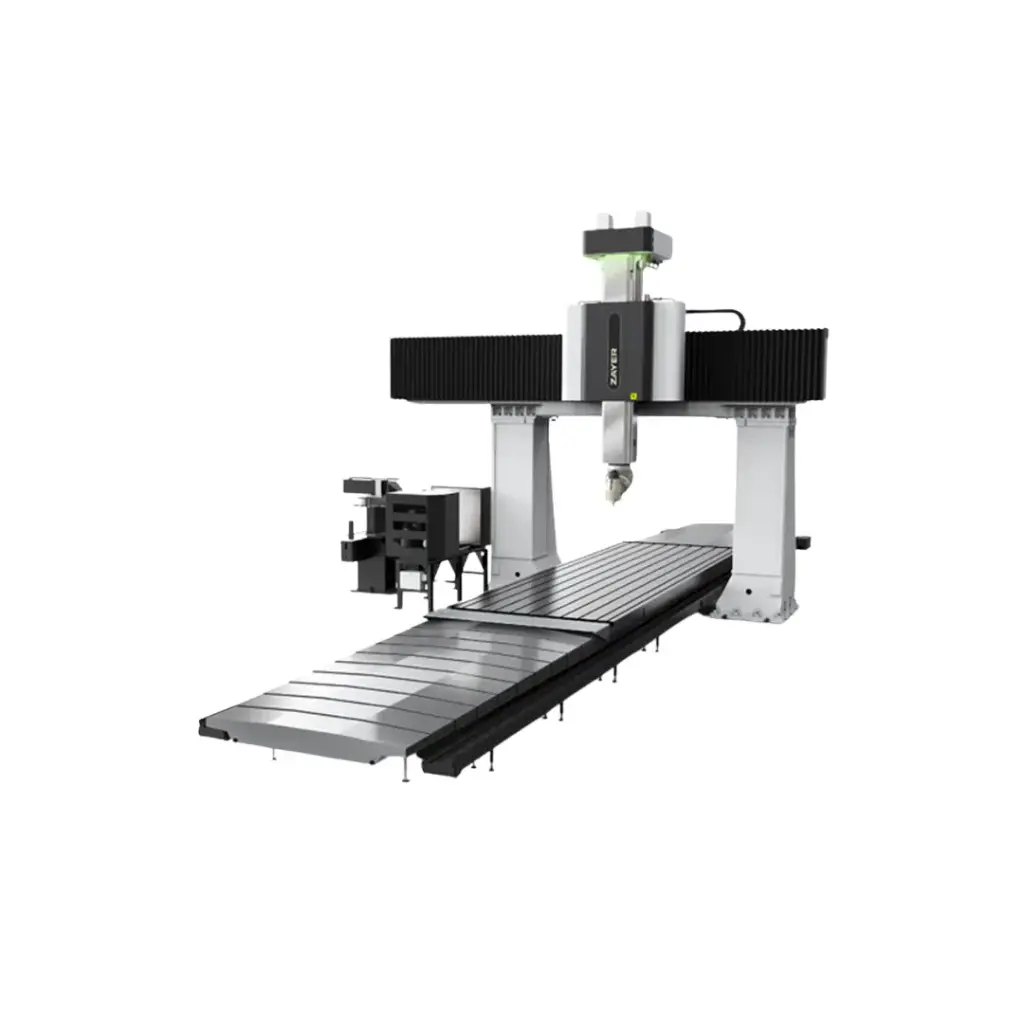

Zayer Tebas bridge-type milling machine
Brand: ZAYER
The ZAYER TEBAS range is a benchmark in gantry machining centres for very large workpieces that call for power, precision and stability. Designed for demanding industrial environments, it has a robust structure that can withstand intensive machining operations while guaranteeing consistent quality.
Designed to maximise productivity, the TEBAS series handles complex workpieces highly efficiently, cutting cycle times and delivering high long-term reliability. It is aimed at manufacturers looking for a high-performance solution for heavy, strategic applications.
Key features and benefits
High-rigidity gantry design
Ensures optimum stability when machining large mechanical structures.
Large machining capacity
Handles bulky workpieces with accuracy and consistency.
Heavy-duty machining performance
Built for demanding cutting conditions and intensive cycles.
High industrial accuracy
Holds tight tolerances on large, complex workpieces.
Optimised thermal stability
Maintains consistent quality in continuous production.
Optimised productivity
Cuts cycle times thanks to high-performance, well-controlled kinematics.
Flexible configuration
Adapts to the specific needs of different industries.
Automation-ready
Fits into modern, connected production environments.
Technical data
- Type: Gantry machining centre
- Design: gantry structure for large-format machining
- Axes: multi-axis configurations depending on version
- Capacity: machining of very large, very heavy workpieces
- Structure: designed for heavy-duty, high-precision machining
- Technology: optimised dynamic and thermal stability
- Configuration: modular to suit industrial applications
- Integration: compatible with automation and connected production
Industrial applications
The ZAYER TEBAS range is particularly well suited to the following operations:
- Machining of large and very large workpieces
- Manufacture of complex mechanical structures
- Energy industry (wind, hydro, nuclear)
- Aerospace sector and heavy equipment
- Production of large moulds and tooling
- High added-value subcontract machining
Why choose this product
The ZAYER TEBAS range is a strategic choice for manufacturers looking for a powerful, reliable and accurate gantry machining centre. Its robust design and ability to sustain consistent performance make it an ideal solution for the most demanding applications, where productivity and quality are essential.
Availability and services
Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
Basic configuration
The Zayer Tebas is a
fixed-gantry milling machine with fixed cross rail and moving table.
Technical specifications
The technical specifications of the Tebas machining centre are as follows:
- Table length - 4,100 - 5,100 - 6,100 mm
- Table width - 2,200 (2,500 - 3,000)* mm
- Longitudinal travel - 4,000 - 5,000 - 6,000 mm
- Cross travel - 3,750 (4,250 - 4,750)* mm
- Vertical travel - 1,250 (1,500 - 1,750 - 2,000)* mm
Accessories
The accessories for the Tebas machining centre are:
- Chip conveyor
- Tool magazines - 30 (40-60-80-120)*
- Head changing
- Coolant tank, 22 + 5 bar
The heads compatible with the Tebas machining centre are:
- Automatic 45-degree head, 360,000 positions
- 45-degree head with continuous rotation (optional)
- Automatic 30-degree head, 360,000 positions / continuous rotation (optional)
- Direct-output head (optional)
- 30-degree head with motor spindle, 33 kW, 24,000 rpm
- 40-degree head with electrospindle, 42 kW, 15,000 rpm (optional)
- Direct-output head (optional)
- Direct-output head with gear reduction (optional)
- Direct-output head with gear reduction (optional)
- Direct-output head with motorised spindle (optional)
- "L" head (optional)
Specifications:
A high-capacity bridge-type milling machine that takes on high-volume machining, delivering power without any loss of control and achieving outstanding levels of precision.
Saddle - ram:
Twin ball screws and a dual counterbalance system on the vertical drive. Symmetrical system, greater thermal stability.
Cross guiding:
2 linear guideways for the cross axis, mounted on the cross rail at a 90º angle, increase rigidity, distribute the loads and position the ram closer to the cross rail.
Box-in-box vertical guiding:
Box-way guiding and pads with adjustable preload.
- Heavy machining
- Moulds and roughing tools
- General engineering
- Aerospace
- Wind energy
- Rail
