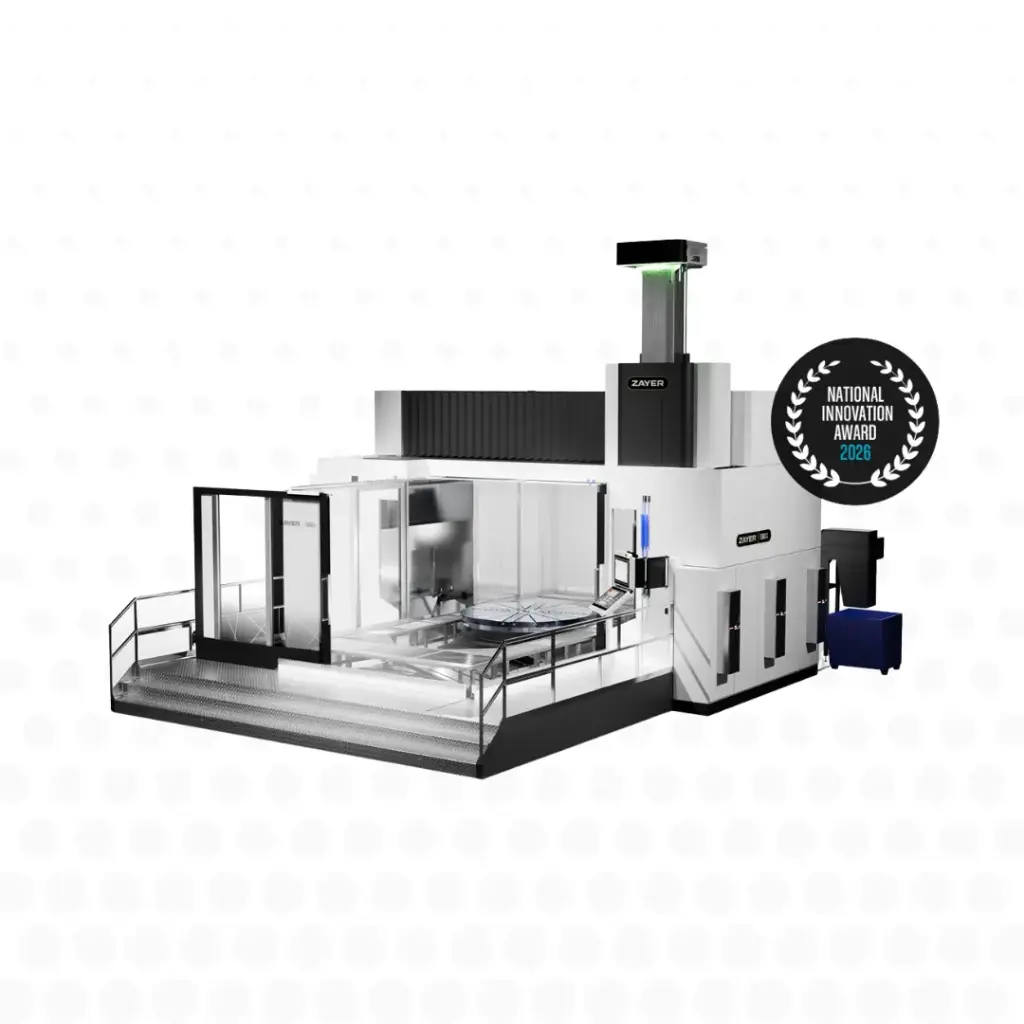

Zayer Tebas G bridge-type milling machine
Brand: ZAYER
The ZAYER TEBAS G is the next step in gantry machining centres designed to meet the highest requirements for precision, rigidity and heavy-duty machining performance. Dedicated to very large workpieces, it has an optimised structure that maintains consistent quality across every operation.
Built for intensive industrial environments, the TEBAS G guarantees exceptional stability and high productivity, even over long cycles. It is aimed at manufacturers looking for a reliable solution for critical applications that call for power, precision and repeatability.
Key features and benefits
Reinforced gantry design
Ensures maximum rigidity when machining heavy, complex workpieces.
Large machining capacity
Handles very large workpieces with consistent accuracy.
Heavy-duty machining performance
Built to withstand demanding cutting conditions and extended cycles.
High industrial accuracy
Holds tight tolerances on complex geometries.
Optimised thermal stability
Maintains consistent machining quality in continuous production.
Optimised productivity
Cuts cycle times thanks to high-performance kinematics and well-controlled axis movements.
Flexible configuration
Adapts to the specific needs of different industrial applications.
Automation-ready
Fits into modern, connected production environments.
Technical data
- Type: Gantry machining centre
- Design: reinforced gantry structure for large-format machining
- Axes: multi-axis configurations depending on version
- Capacity: machining of very large, very heavy workpieces
- Structure: optimised for heavy-duty, high-precision machining
- Technology: advanced dynamic and thermal stability
- Configuration: modular to suit industrial requirements
- Integration: compatible with automation and connected production
Industrial applications
The ZAYER TEBAS G is particularly well suited to the following operations:
- Machining of very large workpieces
- Manufacture of complex mechanical structures
- Energy industry (wind, hydro, nuclear)
- Aerospace sector and heavy equipment
- Production of large moulds and tooling
- High added-value subcontract machining
Why choose this product
The ZAYER TEBAS G is a strategic choice for manufacturers looking for a high-performance gantry machining centre that handles heavy-duty applications with accuracy and reliability. Its reinforced design and ability to sustain consistent performance make it an ideal solution for critical, demanding production work.
Availability and services
Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
Basic configuration
The Zayer Tebas G is a milling machine with a fixed gantry, fixed cross rail and moving table.
Technical specifications
The technical specifications of the Tebas G machining centre are as follows:
- Longitudinal travel - 2,500 (-400/+2,100)* mm
- Cross travel - 4,100 mm
- Vertical travel - 1,750 mm
Accessories
The accessories for the Tebas G machining centre are:
- Chip conveyor
- Tool magazines - 20 (40-60-80-120)*
- Full enclosure with roof
-
Rotary table (milling / turning)
The heads compatible with the Tebas G machining centre are:
- Twist head with motor spindle
- Elbow rotation (optional)
Specifications:
Thanks to its travelling rotary table, this multi-tasking machine can mill, turn and grind.
- Geometric stability
- Flexibility
- High power
- Complex machining
- Precision
- Speed
Longitudinal guiding system:
Longitudinal axis driven by a ball screw, providing travel for the rotary table, which is driven by a torque motor.
Cross guiding:
2 linear guideways for the cross axis, mounted on the cross rail at a 90º angle, increase rigidity, distribute the loads and position the ram closer to the cross rail.
Box-in-box vertical guiding:
Box-way guiding and pads with adjustable preload.
The G version of the TEBAS, designed for technologically demanding materials, not only handles high-volume machining with a high roughing capacity, but also ensures the machining of complex parts, with easy access provided by its moving table.
