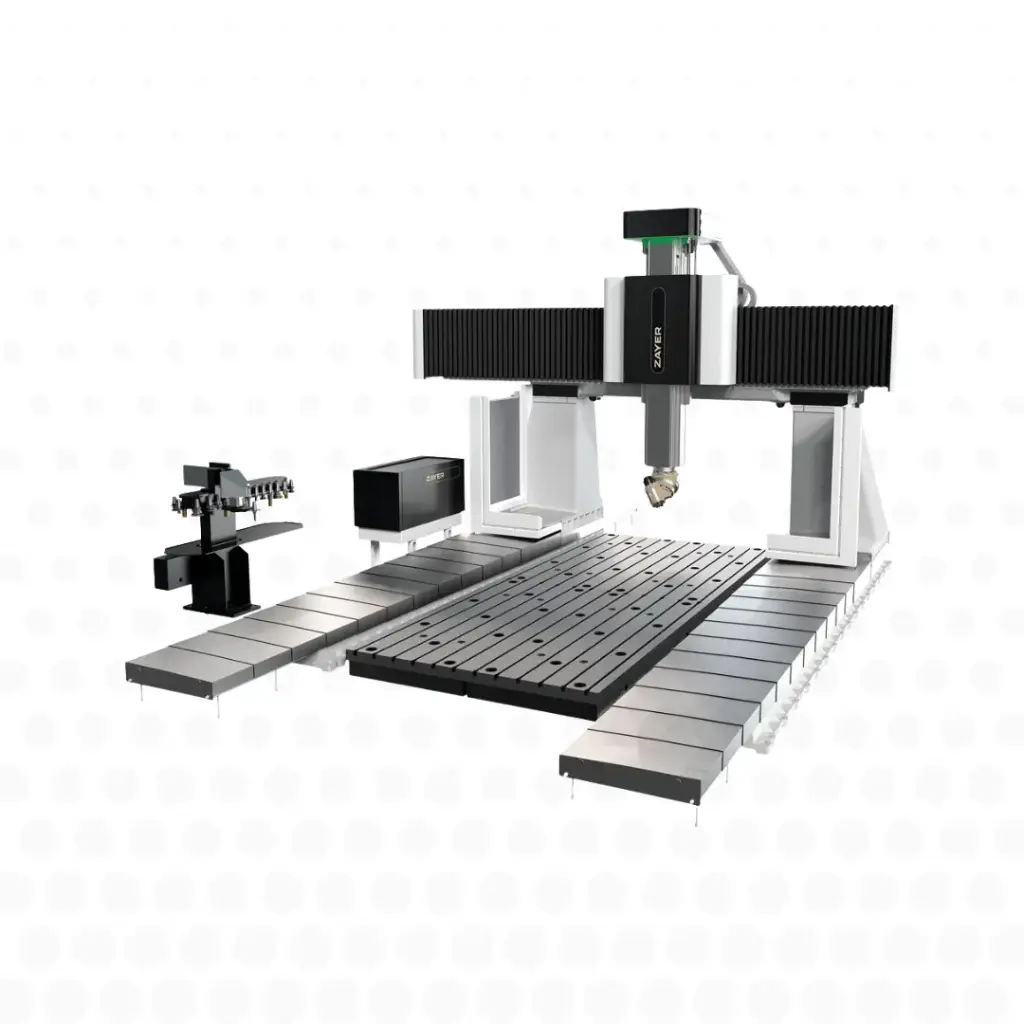

Zayer Thera gantry milling machine
Brand: ZAYER
The ZAYER THERA is a new-generation gantry machining centre designed to offer the ideal balance of large capacity, precision and dynamic performance. Dedicated to machining large workpieces, it is built around a moving-gantry architecture that provides excellent accessibility and great stability in production.
Designed for demanding industrial environments, the THERA delivers consistent machining quality even under intensive conditions, while optimising cycle times. It is a perfect match for manufacturers looking for a reliable solution for complex, high value-added applications.
Key features and benefits
High-performance gantry architecture
Offers large machining capacity with excellent access to the workpiece.
Optimised structural rigidity
Guarantees high stability when machining large, complex workpieces.
Large working envelope
Handles large workpieces with precision.
High industrial precision
Ensures tightly controlled tolerances across the entire machining area.
Performance in intensive machining
Designed for long cycles with consistent productivity.
Controlled thermal stability
Maintains stable machining quality over time.
Versatile applications
Suited to a wide variety of industrial sectors.
Automation-ready
Fits into modern, connected production environments.
Technical data
- Type: Gantry machining centre (moving gantry)
- Design: moving gantry for large dimensions
- Axes: multi-axis configurations available to suit requirements
- Capacity: machining of large, complex workpieces
- Structure: optimised for rigidity and dynamic stability
- Technology: advanced management of thermal stresses
- Configuration: modular to suit industrial applications
- Integration: compatible with automation and connected production
Industrial applications
The ZAYER THERA is particularly well suited to the following operations:
- Machining of large workpieces
- Manufacture of complex mechanical structures
- Aerospace industry and heavy equipment
- Energy sector (wind, hydro, nuclear)
- Production of moulds and tooling
- High added-value subcontract machining
Why choose this product
The ZAYER THERA is an ideal solution for manufacturers looking for a versatile, precise, high-performance gantry machining centre. Its optimised design ensures high productivity while maintaining consistent quality, making it a strategic choice for demanding industrial applications.
Availability and services
Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
Basic configuration
The Zayer Thera is a
Gantry milling machine with moving gantry, fixed table and fixed crossrail.
Technical specifications
The technical specifications of the Thera machining centre are as follows:
- Table length - 3,500 - 4,500 - ... 20,500 ... mm
- Table width - 2,000 (3,000 - 4,000)* mm
- Longitudinal travel - 3,000 - 4,000 - ... 20,000 ... mm
- Cross travel - 3,750 (4,250 - 4,750 - 5,250 - 5,750)* mm
- Vertical travel -
1,250 (1,500 - 1,750 - 2,000)* mm
Accessories
The accessories for the Thera machining centre are:
- Chip conveyor
- Tool magazines - 30 (40-60-80-100-120 ...)*
- Coolant tank, 22 + 5 bar
- Head changing
- Pendulum machining (optional)
- Operator platform (optional)
The heads compatible with the Thera machining centre are:
- Automatic 45-degree head, 360,000 positions
- 45-degree head with continuous rotation (optional)
- Automatic 30-degree head, 360,000 positions / continuous rotation (optional)
- 30-degree head with motorised spindle, 33 kW, 18,000 rpm (optional)
- 30-degree head with motorised spindle, 33 kW, 24,000 rpm (optional)
-
40-degree head with motorised spindle, 42 kW, 15,000 rpm (optional)
- Direct-output head (optional)
- Direct-output head with gear reduction (optional)
- "L" head (optional)
-
Extended L-shaped head (optional)
Specifications:
The ideal machine for machining large workpieces, optimising production through pendulum machining. Various accessories can be added, including rotary tables and turning options.
Saddle - ram:
Twin ball screws and a dual counterbalance system on the vertical drive. Symmetrical system, greater thermal stability.
Cross guiding:
2 linear guideways for the cross axis, mounted on the cross rail at a 90º angle, increase rigidity, distribute the loads and position the ram closer to the cross rail.
Box-in-box vertical guiding:
Box-way guiding and pads with adjustable preload.
- Rail
- Hydroelectric power
- General engineering
