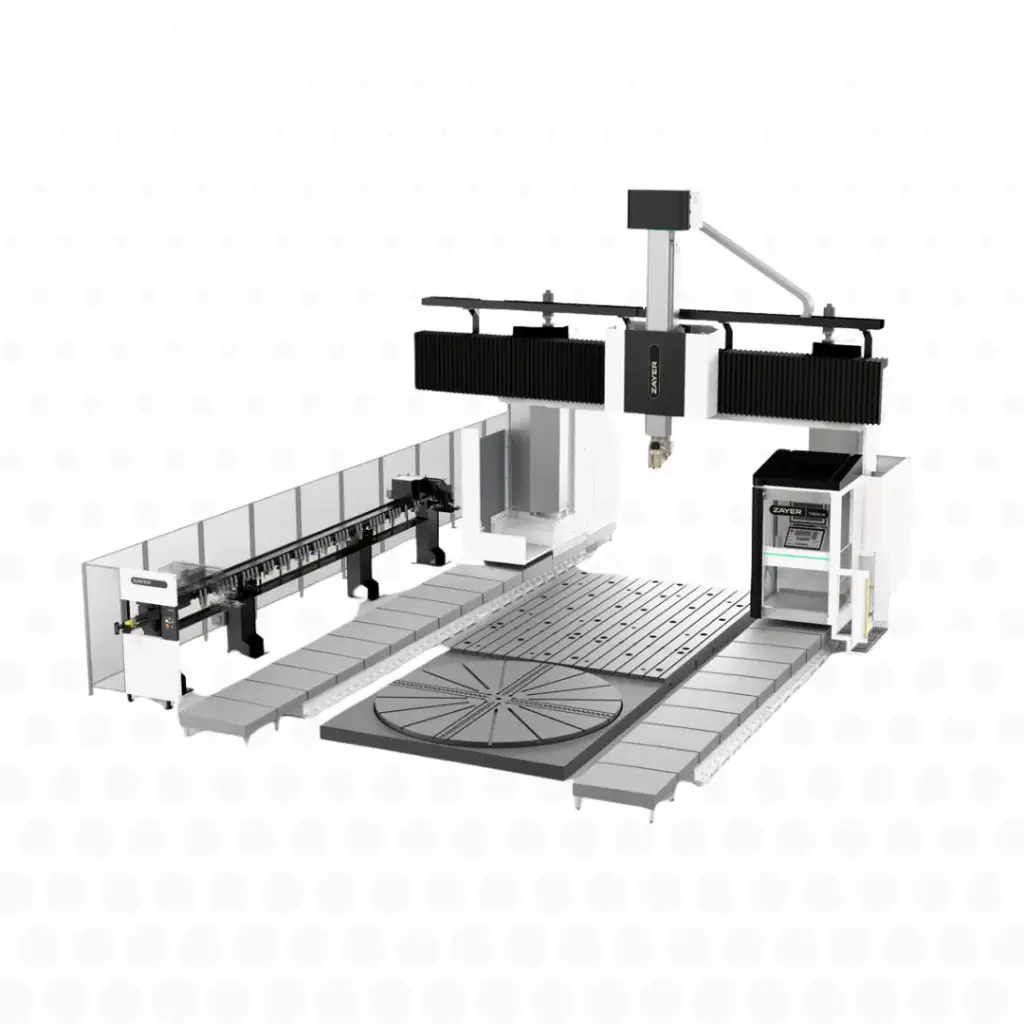

Zayer Thera W milling machine
Brand: ZAYER
Designed for very large-format machining operations, the ZAYER THERA W combines power, precision and extreme stability in a high-performance gantry architecture. This machine was developed to meet the requirements of the most demanding industrial sectors, where machining quality and the ability to work on heavy, complex parts are essential. Thanks to its robust design and advanced technology, the THERA W delivers excellent cutting dynamics, high precision and great versatility in intensive production. A premium solution for manufacturers looking for a reliable, scalable gantry machining centre.
Key features and benefits
High-rigidity gantry architecture
Guarantees excellent stability when machining large technical parts.
Large machining capacity
Allows large, heavy components to be machined with high precision.
High-performance precision
Ensures consistent results on complex, long-running operations.
Excellent cutting dynamics
Optimises machining performance on technical materials and industrial alloys.
Production versatility
Suited to machining one-off parts, prototypes and large production runs.
Robust industrial design
A machine designed for intensive production environments.
Multi-technology compatibility
Scope for integrating different machining heads and advanced configurations.
Automation-ready
Compatible with modern industrial environments and automated cells.
Technical data
- Machine type: CNC gantry machining centre
- Brand: ZAYER
- Model: THERA W
- Architecture: High-rigidity moving gantry
- CNC control: advanced industrial CNC
- Capacity: Machining of large mechanical parts
- Materials: steel, cast iron, aluminium, engineering alloys
- Structure: Reinforced frame for heavy-duty machining
- Technology: High-precision, large-format machining centre
- Condition: New machine
Industrial applications
The ZAYER THERA W is particularly well suited to the following applications:
- Machining of large mechanical structures
- Aerospace and energy industries
- Manufacture of large moulds and tooling
- Machining of parts for the rail industry
- Heavy engineering and industrial equipment
- Production of components for wind power and the energy sector
- High-precision subcontract machining
- Machining of complex, high value-added parts
Why choose this product
The THERA W is a strategic solution for manufacturers who need a high-performance gantry machining centre capable of maintaining precision, stability and productivity on very large workpieces.
Its structural robustness, scope for upgrades and technological versatility make it a lasting investment for workshops looking to increase their heavy-duty machining capacity while guaranteeing a flawless surface finish.
Availability and services
Machine available to order with customisable configurations
Technical support in choosing options and equipment
Installation and commissioning by specialist engineers
Operator training and production support
Responsive after-sales service and spare parts availability
Financing solutions tailored to industrial projects
Basic configuration
The Zayer Thera W is a
Gantry milling machine with moving gantry, fixed table and moving crossrail.
Technical specifications
The technical specifications of the Thera W machining centre are as follows:
- Table length - 3,500 - 4,500 - ... 20,500 ... mm
- Table width - 2,000 (3,000 - 4,000)* mm
- Longitudinal travel - 3,000 - 4,000 - ... 20,000 ... mm
- Cross travel - 3,750 (4,250 - 4,750 - 5,250 - 5,750)* mm
- Vertical travel -
1,250 (1,500 - 1,750 - 2,000)* mm
Accessories
The accessories for the Thera W machining centre are:
- Chip conveyor
- Tool magazines - 30 (40-60-80-100-120 ...)*
- Coolant tank, 22 + 5 bar
- Head changing
- Pendulum machining (optional)
- Operator platform (optional)
The heads compatible with the Thera W machining centre are:
- Automatic 45-degree head, 360,000 positions
- 45-degree head with continuous rotation (optional)
- Automatic 30-degree head, 360,000 positions / continuous rotation (optional)
- 30-degree head with motorised spindle, 33 kW, 18,000 rpm (optional)
- 30-degree head with motorised spindle, 33 kW, 24,000 rpm (optional)
-
40-degree head with motorised spindle, 42 kW, 15,000 rpm (optional)
- Direct-output head with gear reduction (optional)
- Direct-output head with motorised spindle (optional)
- "L" head (optional)
-
Extended L-shaped head (optional)
Specifications:
The ideal machine for machining large workpieces, optimising production through pendulum machining. Various accessories can be added, including rotary tables and turning options.
Rigidity and precision without sacrificing dynamics, for reaching hard-to-access areas:
- Geometric stability
- Flexibility
- Rigidity
- Pendulum machining
- Aerospace
- Rail
- General engineering
