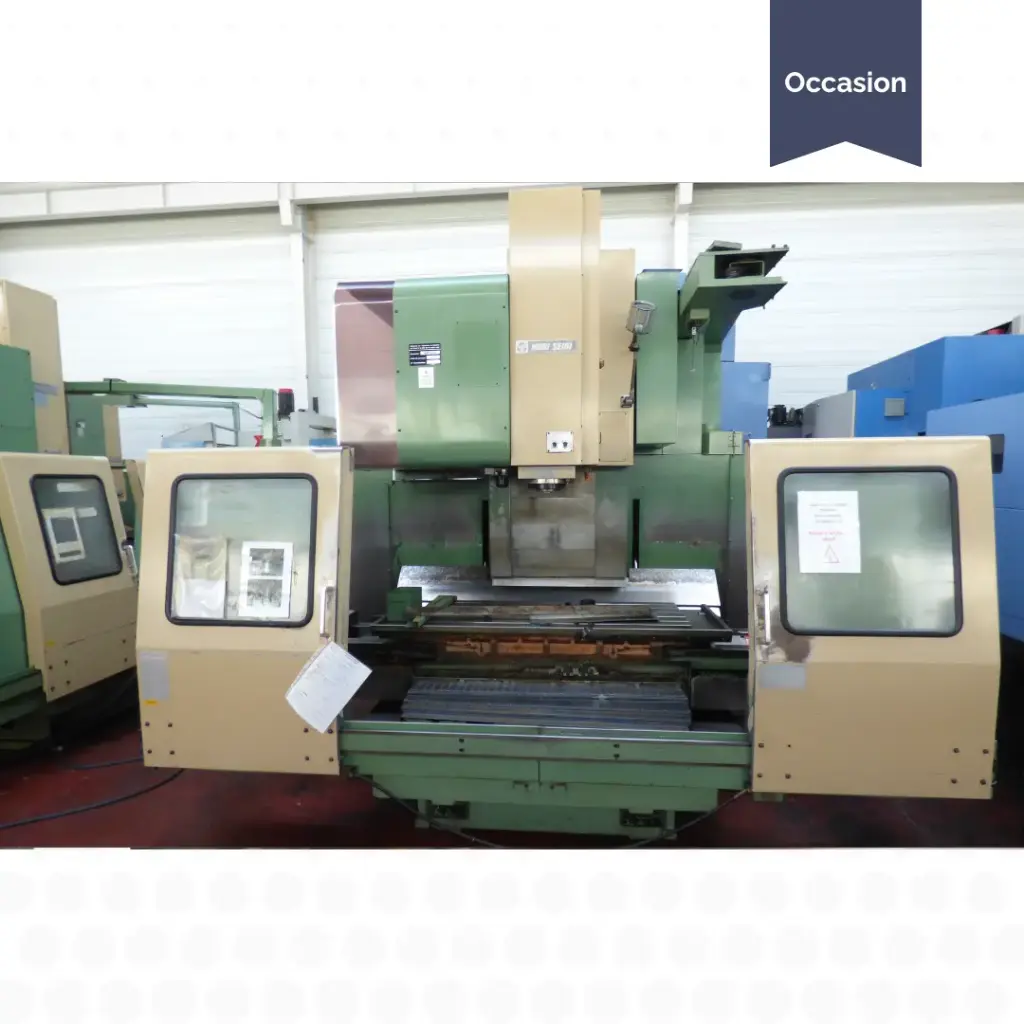

Machining centre MORI SEIKI MV55/50
Brand: MORI SEIKI
Reference: D00109
| Year: | 1990 |
| CNC type: | FANUC SERIES 15 M |
| Table dimensions (mm): | 1400 x 550 mm |
| X-axis longitudinal travel (mm): | 1050 mm |
| Y-axis cross travel (mm): | 550 mm |
| Z-axis vertical travel (mm): | 560 mm |
| Spindle speed: | 6000 rpm |
| Spindle power: | 15 kw |
| Through-spindle coolant: | Yes |
| Number of tools: | 30 |
| Tool taper: | BT 50 |
| Machine weight: | 10 T |
| Max. tool length: | 350 mm |
| X-axis rapid traverse (m/min): | 15 |
| Y-axis rapid traverse (m/min): | 15 |
| Z-axis rapid traverse (m/min): | 12 |
| Max. tool weight: | 15 kg |
| Table to spindle nose distance (mm): | 200 |
| Maximum workpiece weight (kg): | 1500 |
Internal Reference:
D00109
