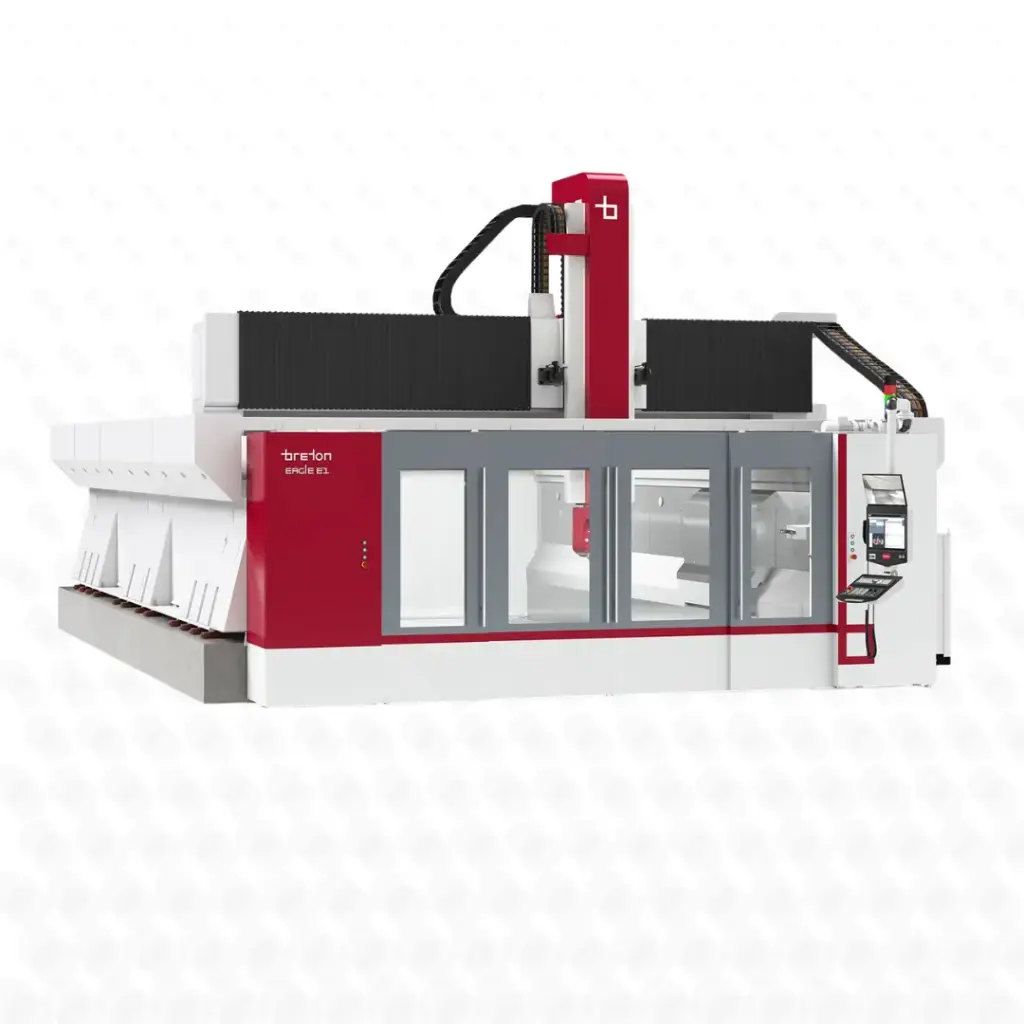

Breton Eagle 5-axis machining centre
Brand: BRETON
The BRETON EAGLE is a 5-axis machining centre designed for producing complex parts that demand accuracy, rigidity and productivity.
It machines advanced geometries in a single set-up, reducing cycle times and repositioning operations.
Its continuous 5-axis kinematics ensure excellent stability and consistent accuracy, even on demanding technical parts.
Redefine the standards of large-format machining with a machine built for performance, rigidity and absolute precision. The BRETON EAGLE is a high-dynamics 5-axis machining centre designed for complex parts and demanding materials, offering the optimum balance between cutting power and fine finishing.
Thanks to its robust architecture and advanced kinematics, it machines complex geometries while limiting repositioning and maximising productivity. A premium industrial solution designed for environments where precision and production continuity are critical.
Key features
- High-precision 5-axis machining centre for complex parts
- Rigid structure ensuring stability and consistent machining quality
- Simultaneous machining of complex geometries in a single set-up
- Shorter cycle times and fewer repositioning operations
- Suited to engineering materials and demanding applications
- Excellent machine dynamics for high productivity
- Precision and repeatability in line with premium industrial standards
- Ideal solution for one-off production and high-value small batches
Technical data
- Type: High-performance CNC 5-axis machining centre
- Architecture: Rigid structure optimised for intensive machining
- Axes: 5 simultaneous interpolated axes
- Kinematics: Continuous multi-axis machining
- Control: Advanced CNC for complex toolpaths
- Materials: Steel, alloys, engineering materials depending on configuration
- Process: High-precision 5-axis milling
- Focus: Industrial production of complex parts
Industrial applications
- Precision moulds and tooling
- Aerospace and complex structural components
- Automotive and technical parts
- Energy and industrial equipment
- Advanced prototyping and functional parts
- Machining of complex 3D shapes
Why choose this product
The BRETON EAGLE is designed for manufacturers looking for a reliable, high-performance solution for 5-axis machining of complex parts. It combines precision, stability and productivity in an architecture designed to cut cycle times and raise the final quality of parts.
Its ability to machine complex shapes in a single set-up limits errors, optimises production flow and significantly improves overall workshop efficiency. A machine built for lasting performance.
Availability and services
Machine available to order in a choice of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
High-precision 5-axis machining centre, designed for complex parts and demanding industrial applications
Rigidity, dynamics and precision in one package for machining complex geometries in a single set-up. The BRETON EAGLE performs continuous 5-axis milling on technical parts, with consistent stability and machining quality.
Its advanced kinematics and high-rigidity structure deliver high performance in production while cutting cycle times and repositioning operations. A solution designed to maximise productivity on high-value parts.
Heads compatible with Eagle:
Ghibli
Ghibli HD
Hornet
Why choose it?
This machining centre meets the market's many requirements in terms of dynamics, precision and working volumes.
Its highly modular travels, with a Z axis ranging from 1,000 mm to 2,500 mm, the many head and electrospindle combinations and the numerous accessory packages allow Eagle to carry out a wide range of machining operations in every sector.
Breton Eagle can be equipped with technologies dedicated to specific sectors and materials, such as ultrasonic cutting for composite materials, Accuthick for milling operations with automatic thickness control and Accusink for riveting operations.
Thanks to careful design, Eagle offers optimum, consistent performance in every version. Its high modularity makes it possible to build a machine that is practically made to measure for the customer. Vertical travels range from a minimum of 1 metre up to 2.5 metres, and cross travels from 2.5 to 5 metres. In addition, the runway support system allows column travels of 12 metres and more, so that specific customer requirements can be met.
Eagle has been designed for both wet and dry machining.
A number of protective features have been built in to shield all sensitive parts. The axis slideways are well protected by bellows and the main drive components are pressurised to keep out contamination.
In addition, the roof bellows keep dust inside the machining area and prevent it from reaching the slideways.
As well as the labyrinth seal, the head is fitted with a wiper with a chevron seal, which provides complete protection when machining aggressive and abrasive materials or when using coolant.
The tool magazine is located outside the machining area to protect the tapers, which enter the machining area only for the time needed to change tools.
Eagle's thermo-symmetrical design reduces structural deformation and makes it easy to correct through the software. The most sensitive points where heat is greatest, such as the head, the A axis and the electrospindle, are cooled by a dedicated chiller to limit the spread of heat to other parts of the structure.
For those looking for a compact, versatile head, the ideal choice is the Hornet angular head, built to offer torsional strength and precision while extending the working area thanks to its unique design. With a maximum of 18 Nm and 24,000 rpm, Hornet is ideal for material removal on resins, composite materials and aluminium.
When higher spindle power and greater precision are required, the Ghibli fork head is the option to choose. Reaching up to 62 Nm at 28,000 rpm, it delivers high metal removal performance not only on resins and composite materials but also on light alloys.
