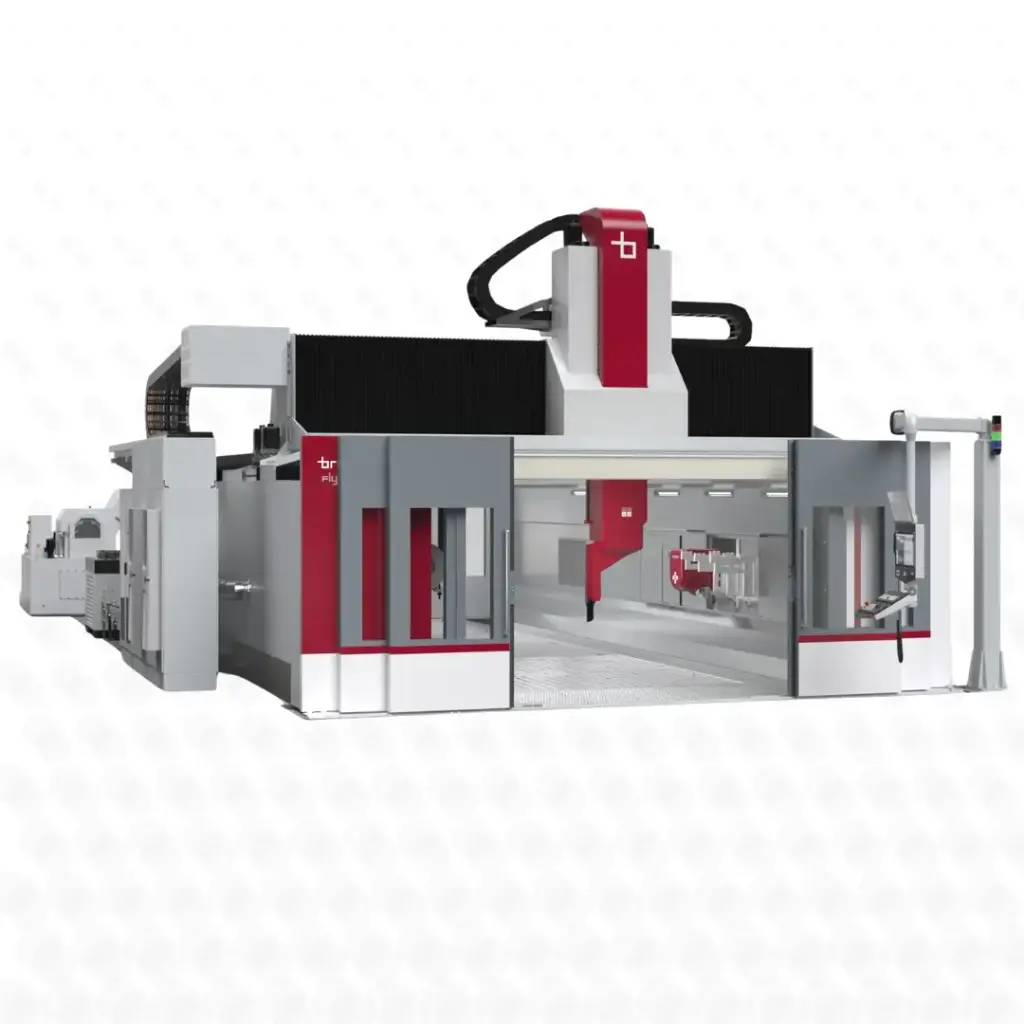

Breton Flymill machining centre

The great advantage is having several production capabilities in a single solution: roughing, semi-finishing, finishing, measuring, inspection and surface verification. Meticulous design and structural optimisation backed by the digital twin have produced a machine that combines the strength and robustness needed for roughing with the speed and precision needed for superfinishing.

The Breton Flymill E1 in MT (Mill Turn) version can also operate as a vertical turning centre. This is made possible by an integrated quick head coupling/release system (up to 600 Nm on 3 axes), which allows the A-axis milling head to be swapped quickly and automatically for a vertical turning head. Combined with our own in-house high-performance turning tables (torque or hydrostatic type), this solution delivers high milling and turning capacity in one versatile package.

An advanced lubrication system eliminates dirt, stains on workpieces and hazardous fumes, and reduces maintenance and operating costs.

In addition, the Rexroth CytroPac hydraulic power unit cuts energy consumption through variable pressure management.

The Thermal Shield system, applied to the Flymill's thermo-symmetrical structure, provides optimum control of thermal expansion without the need for costly cooling systems.

An efficient chip evacuation system and stainless steel cladding keep the machining area clean at all times and reduce operator intervention.

The Breton Flymill was created by harnessing the potential of the digital twin which, through simulations in a virtual environment, enables targeted design optimisation and a significant increase in performance.

The Flymill is available with the most advanced Heidenhain and Siemens controls. It is fully fitted with plug-in connectors to speed up programming and maintenance. This solution allows integration with Industry 4.0 software to analyse operating statistics, optimise operations and carry out predictive maintenance.

The Breton Flymill is available in various configurations to meet the needs of specific sectors, particularly where high power and torque are required for difficult materials. That means we can offer you a tailor-made solution, whether you machine aluminium, steel or superalloys.

The Flymill is available with a wide range of accessories for every type of application, such as heads/electrospindles or various types of automation for workpiece loading and unloading. It can incorporate other innovative technologies such as ultrasonic cutting of aerospace materials (honeycomb), ultrasonic thickness measurement systems and automated conical machining systems, and much more besides.
