Breton Eagle machining centre
Brand: BRETON
- Autofocus system for excellent cut quality on both thin and thick sheet metal
- One-piece frame for high acceleration.
Lower operating costs
- Excellent cut quality on all types of material
High-quality components throughout
- Automatic sheet loading and unloading system
Modern, compact design
- Dynamic structure and ergonomic design
Set a new benchmark in industrial machining with the BRETON EAGLE, a CNC machining centre designed to combine precision, power and reliability in demanding production environments. Built to meet the challenges of technical parts, it delivers high-performance machining with consistent quality and excellent process control. An advanced industrial solution that safeguards your production and gives your competitiveness a lasting boost.
Key features and benefits
High machining accuracy
Delivers precise, repeatable results on complex parts.
Power and performance
Provides efficient machining capacity across different types of material.
Structural rigidity
Robust construction for optimum stability in production.
Controlled productivity
Optimises machining cycles and improves overall output.
Surface finish quality
Produces clean, even surfaces.
Industrial reliability
Designed for continuous operation with excellent durability.
Industrial applications
- The BRETON EAGLE is particularly well suited to the following operations:
- Machining of technical parts
- Precision milling
- Industrial production
- Manufacture of mechanical components
- Materials processing
- Subcontract machining
Why choose this product
The BRETON EAGLE is an ideal solution for manufacturers looking for a reliable, accurate and high-performance CNC machining centre. It improves part quality while optimising production performance.
It is a strategic investment for any company looking to safeguard its processes, improve productivity and guarantee consistent results, with a machine built to meet industrial requirements.
Availability and services
Delivery, commissioning, installation and training carried out by our own teams.
Let's talk about your project!
Dynamic 5-axis vertical gantry machining centre with a modular structure

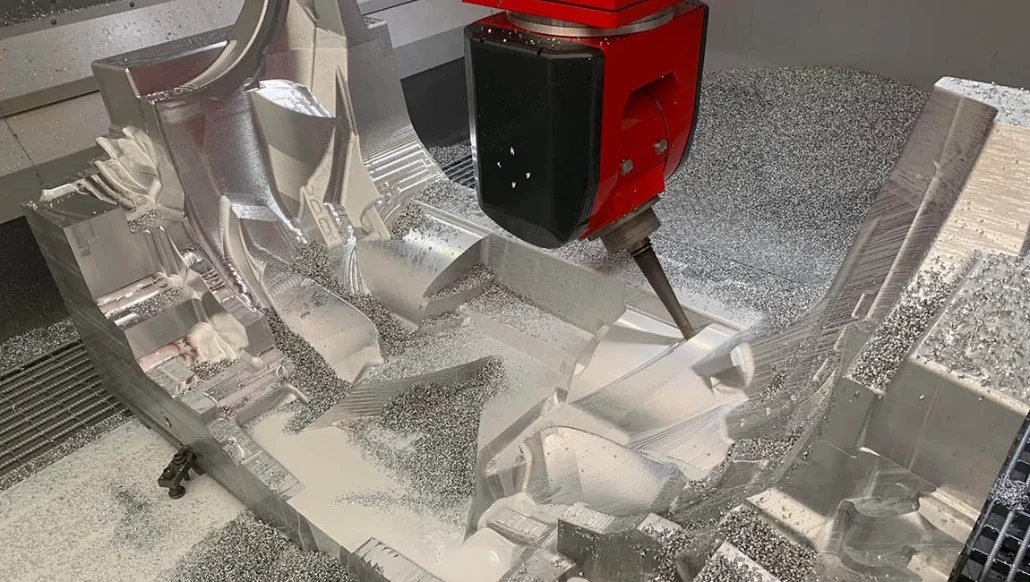

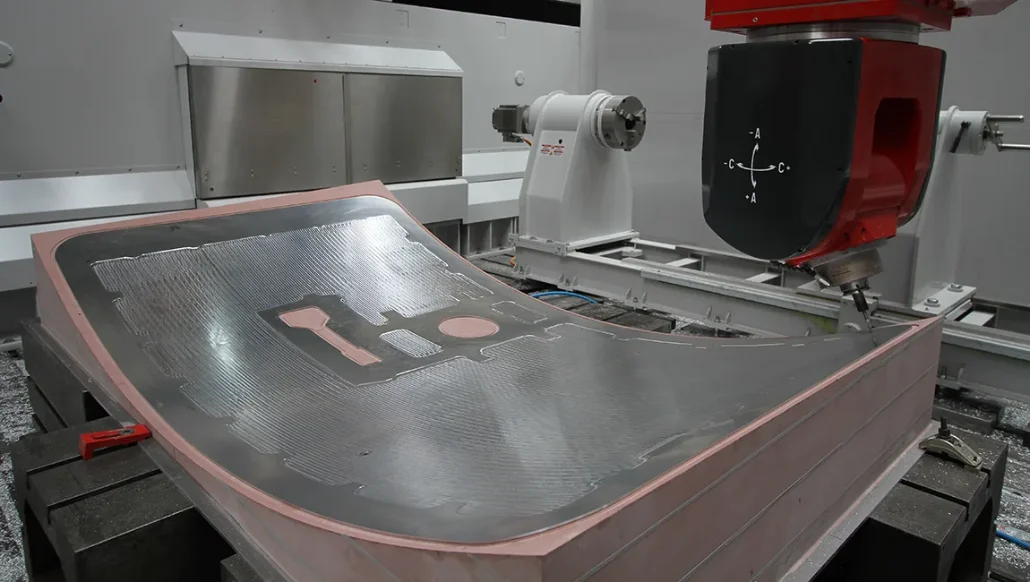

The wide range of structural combinations available means the machine can be configured to suit the working envelope you need. Its technical specification makes it ideal for high-speed precision machining of components with complex three-dimensional shapes in light alloy, resin or composite materials.
Heads compatible with Eagle:
Ghibli
Ghibli HD
Hornet
Hornet, an angle head with a unique design
Designed with a double offset of the spindle axis, the Hornet head optimises accessibility and precision.
Highly modular
The Eagle is built entirely from electro-welded steel and dimensioned using finite element analysis to reduce vibration and limit twisting. This approach meets the demand for dimensional modularity from machine users, allowing Breton to customise the standard product easily in line with market requirements.
Thermosymmetric design
The Eagle is a high-column gantry machining centre with a balanced vertical axis and heads of symmetrical construction, ensuring uniform thermal expansion.
The Eagle's thermosymmetric design reduces structural deformation and makes it easy to compensate for through software. The points where heat is generated (such as the head, the A axis and the electrospindle) are cooled to limit heat transfer to other parts of the structure.
Dual Drive motors
The carriage and cross beam are fitted with high-efficiency motors featuring
Dual Drive technology. This solution delivers high force for the heaviest operations by using the power of both motors pushing at full capacity in the same direction. For high-precision operations, the preload is increased automatically to achieve the highest level of accuracy. The Dual Drive system uses less energy than linear motors and needs no dedicated cooling system.
Compatible with the ultrasonic cutting head.
The ultrasonic cutting head cuts honeycomb materials without tearing or chipping them. It is handled like any ordinary tool and is stored in the standard tool magazine.
Countersink inspection head
A countersink inspection head, managed automatically by the CNC control, checks the actual position of the hole on the workpiece before countersinking.
The head detects the actual position of the holes on the workpiece, using either a contact system or a 3-point laser, to establish their exact coordinates before countersinking. Compared with a conventional probing cycle, times, and therefore costs, are considerably reduced.
Regenerative braking
Braking energy is fed back into the mains supply, so none is dissipated in the braking resistor.
