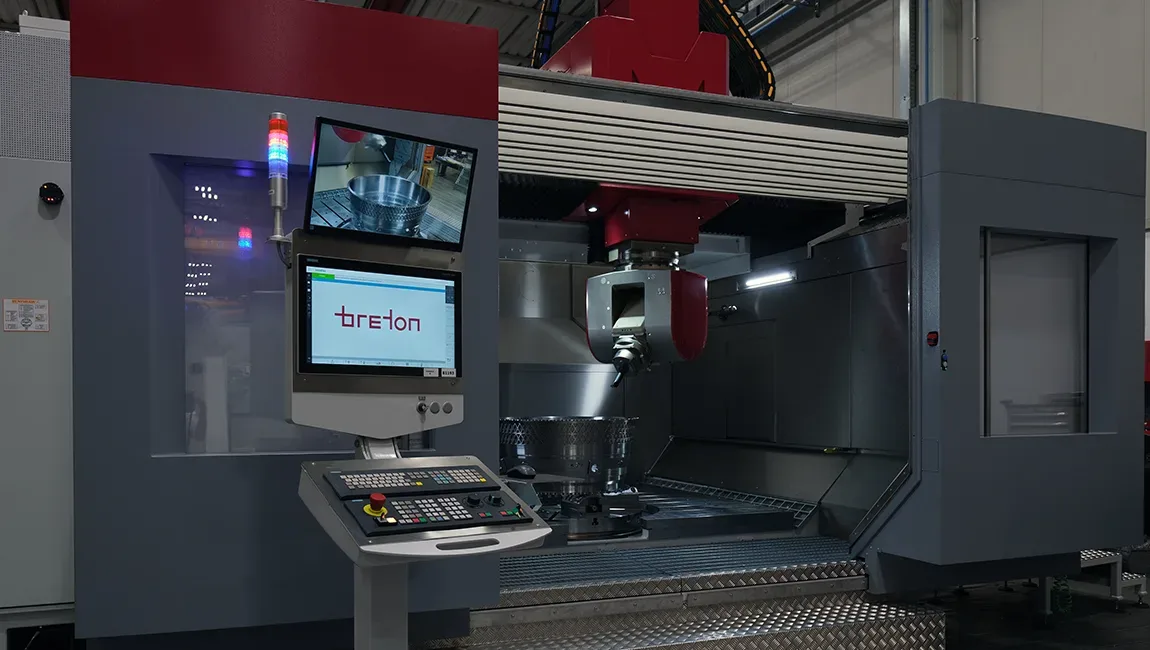

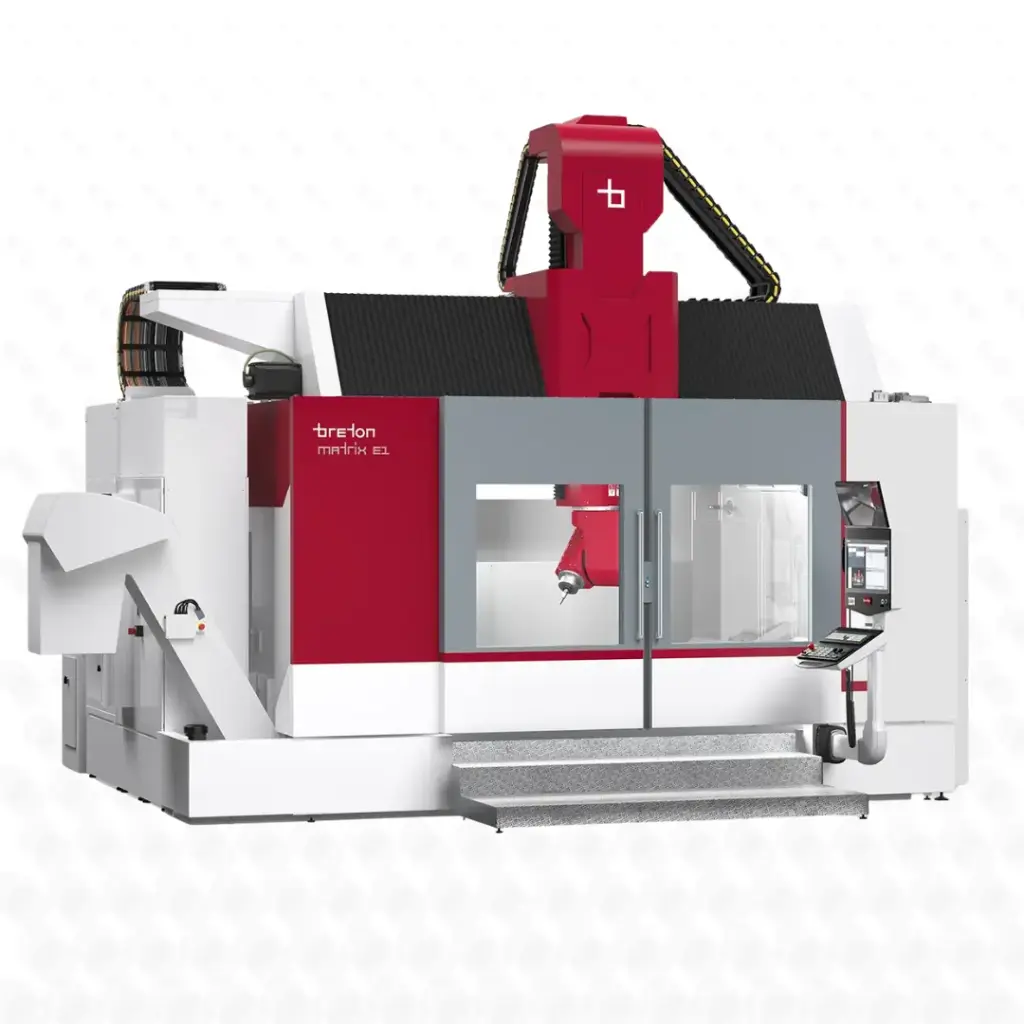

Breton Matrix E1 machining centre

Brand: BRETON

- Autofocus system for excellent cut quality on both thin and thick sheet metal

- One-piece frame for high acceleration.
Lower operating costs

- Excellent cut quality on all types of material
High-quality components throughout

- Automatic sheet loading and unloading system
Modern, compact design

- Dynamic structure and ergonomic design

Step into a new dimension of high-precision machining with the BRETON MATRIX E1, a CNC machining centre designed to deliver performance, precision and reliability in the most demanding industrial environments. Developed for machining technical materials and for complex applications, it guarantees consistent quality and excellent production stability. A high-performance solution to optimise your operations and safeguard your results over the long term.

Key features and benefits

High machining accuracy
Delivers precise, repeatable results on complex parts.

Stability and rigidity
Structure designed to provide optimum stability, even in intensive production.

Versatile applications
Suitable for machining technical materials, depending on machine configuration.

Optimised productivity
Shorter cycle times to improve overall production efficiency.

Surface finish quality
Delivers clean, uniform surfaces.

Industrial reliability
Designed for intensive use with excellent production continuity.

Industrial applications

The BRETON MATRIX E1 is particularly well suited to the following operations:

Machining of complex technical parts
Multi-axis precision milling
Manufacture of industrial components
Production in varied batch sizes
Materials processing
Subcontract machining

Why choose this product

The BRETON MATRIX E1 is an ideal solution for manufacturers looking for an accurate, reliable and versatile CNC machining centre. It improves part quality while optimising production performance.

It is a strategic investment for any company looking to safeguard its machining processes, improve productivity and guarantee consistent results, with a machine built for industrial requirements.

Availability and services

Delivery, commissioning, installation and training carried out by our own teams.

Let's talk about your project!

Request information

Request information Download data sheet

Add to cart Buy now

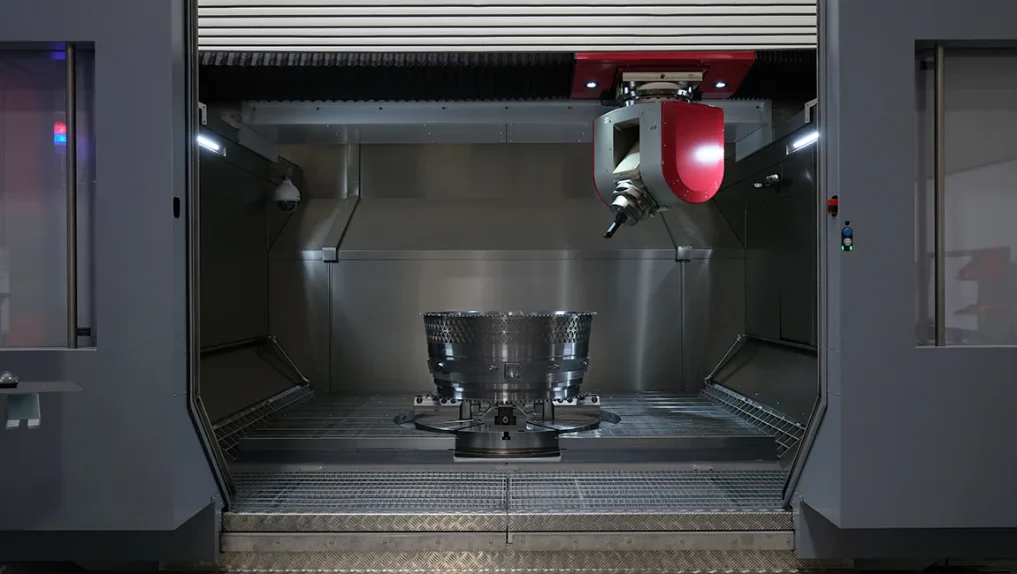

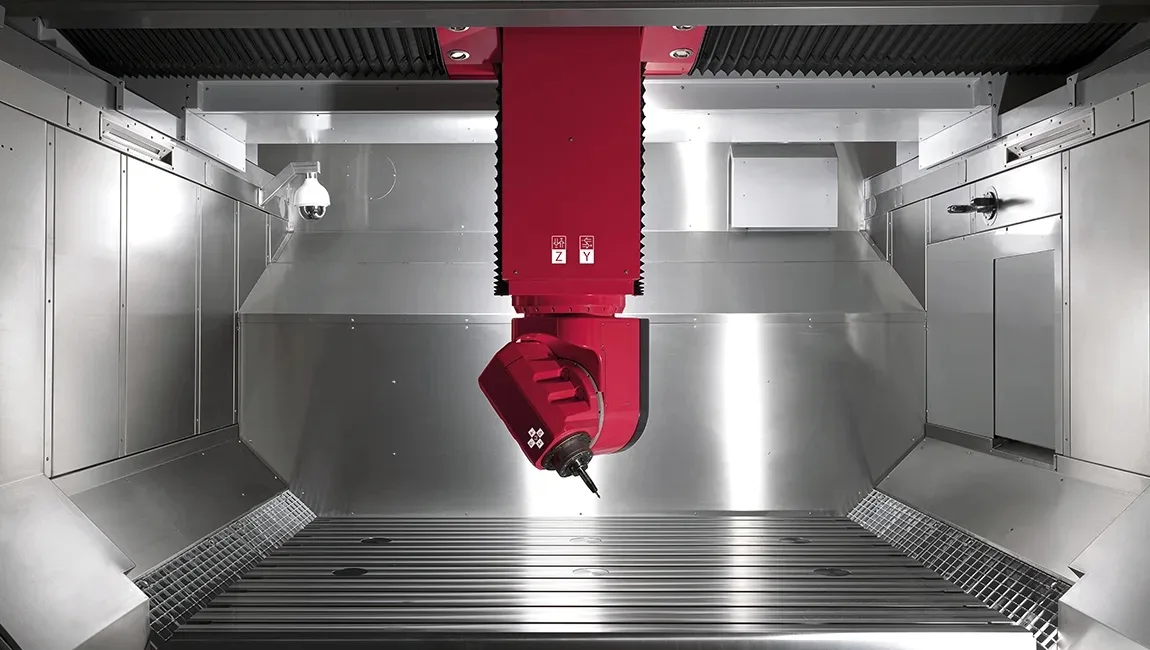

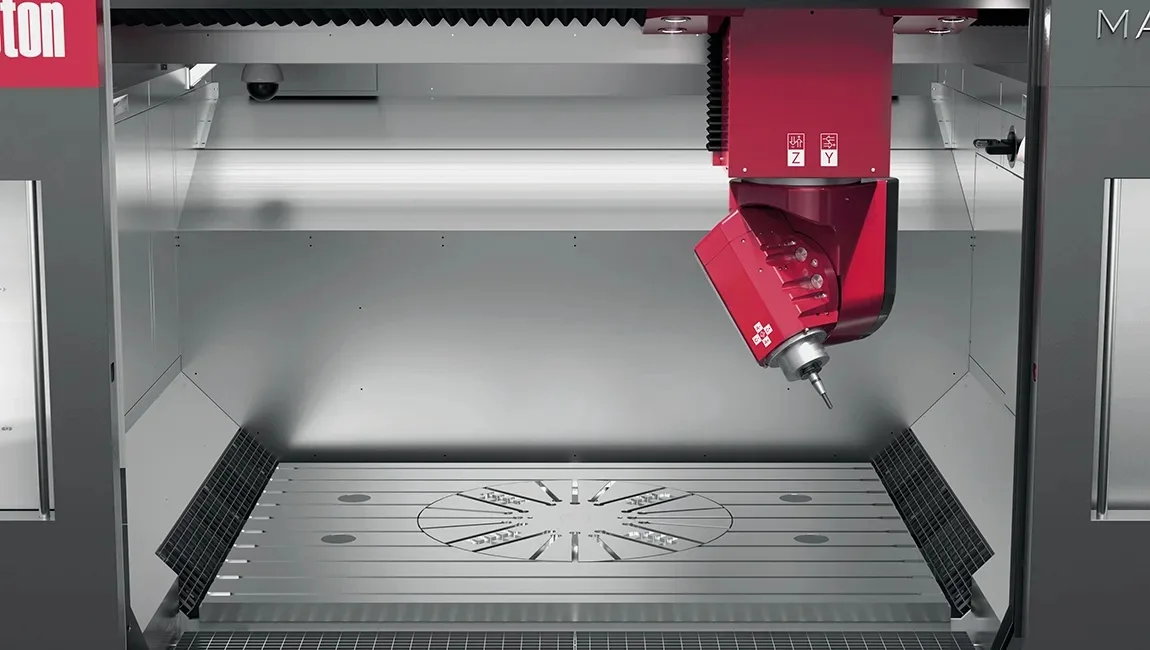

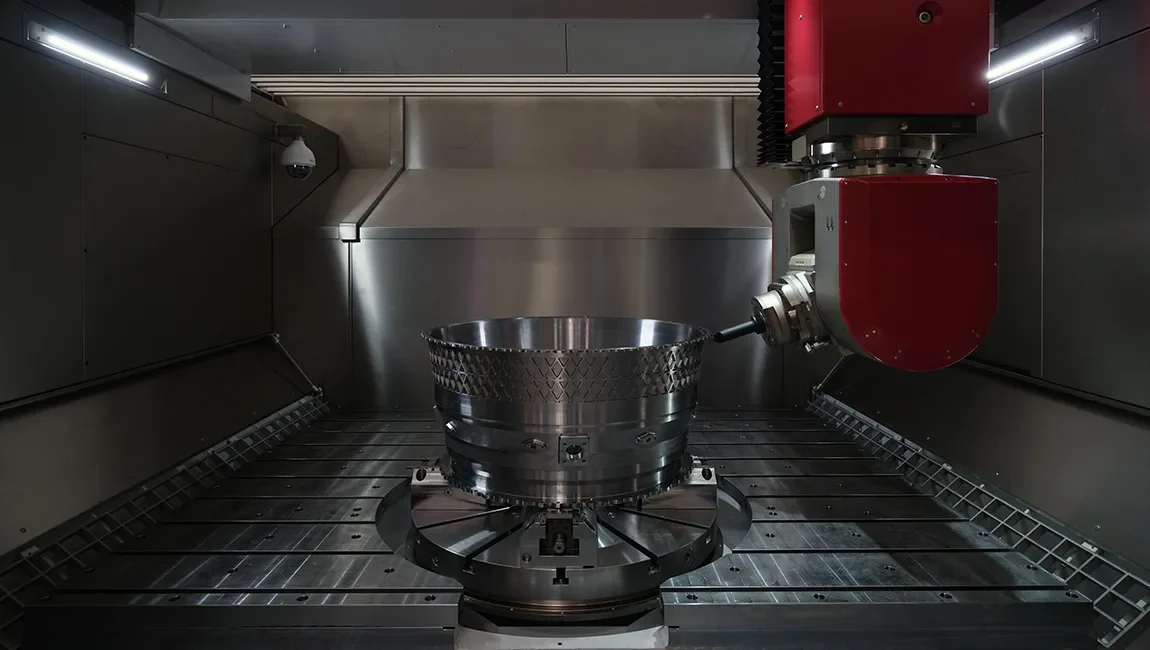

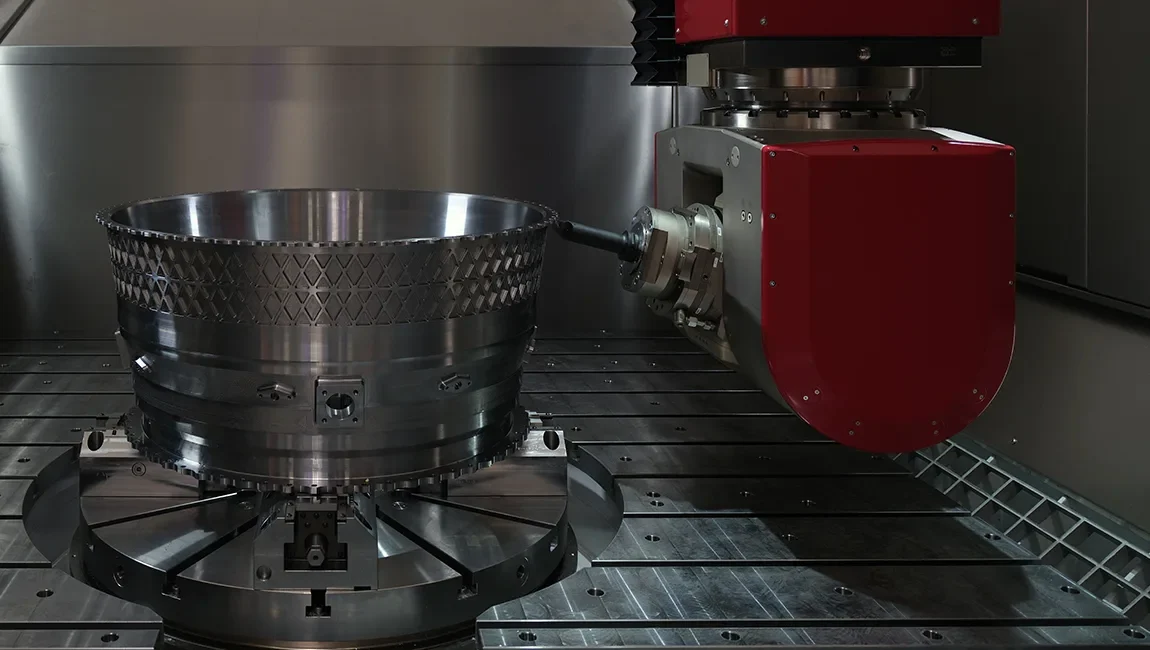

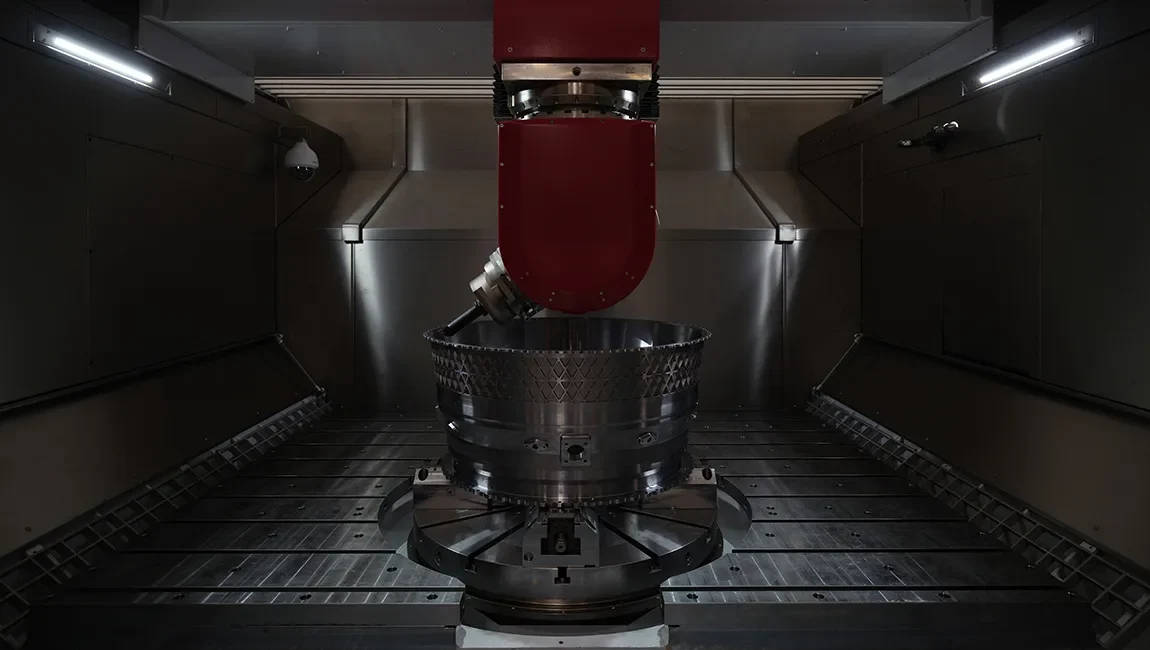

Dynamic, accurate 5-axis vertical machining centre with a monobloc gantry.

Available in a range of configurations to meet the needs of specific applications, in particular mould making, aerostructures and the machining of composite materials. It is ideal for high-feed roughing, semi-finishing and finishing of medium-sized parts in steel, light alloy or special composite materials.

Heads compatible with Matrix E1:

Ghibli

Typhoon

Phoenix

Tornado

Why choose it?

Compact design

Matrix E1 achieves an exceptionally efficient ratio of machine dimensions to axis travel. As a result, it can machine larger workpieces within the same footprint than other solutions on the market.

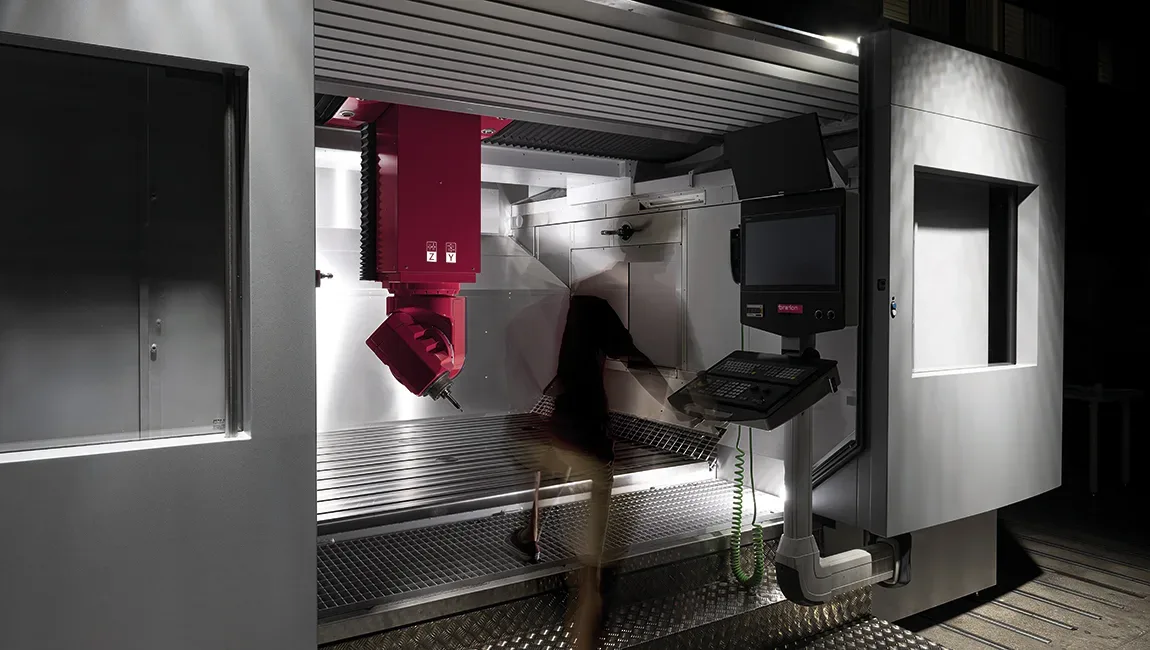

The 2,500 mm cross travel and 2,000 mm longitudinal travel keep the depth of the machine to a minimum, giving the operator the best possible view when carrying out inspection work.

Superior power, speed and accuracy

A fully thermo-symmetrical structure, fitted with the Thermal Shield system, reduces structural distortion without the need for costly cooling systems.

Direct-drive motors on the axes reduce backlash and eliminate the vibration caused by belts.

The large bearings in the Matrix E1 heads provide the rigidity needed for the heaviest operations.

High-resolution encoders and liquid-cooled axes ensure high accuracy.

Versatility

Breton Matrix E1 handles high-speed roughing and delivers outstanding performance in semi-finishing and finishing too. A wide range of electrospindles, which can be fitted to different heads, allows Matrix E1 to work efficiently on materials as varied as hardened steel, aluminium and composites.

The wide range of accessories allows the machine to be configured flexibly to suit the needs of different industries, such as aerospace and mould and die.

Lower installation costs and shorter installation times

An optimised monobloc structure, compact and light, simplifies shipping. Matrix E1 is delivered fully assembled, which considerably reduces installation time and cost.

The monobloc structure of Matrix E1 needs only a simple flat foundation.

Carefully engineered anchor points keep the amount of concrete and chemical anchors needed to secure Matrix E1 to a minimum.

Operating costs cut by half

An advanced lubrication system eliminates dirt, stains on workpieces and hazardous fumes, and reduces maintenance and operating costs.

In addition, the Rexroth CytroPac hydraulic power unit cuts energy consumption through variable pressure management.

The Thermal Shield system, applied to the thermo-symmetrical structure of Matrix E1, provides optimum control of thermal expansion without the need for costly cooling systems.

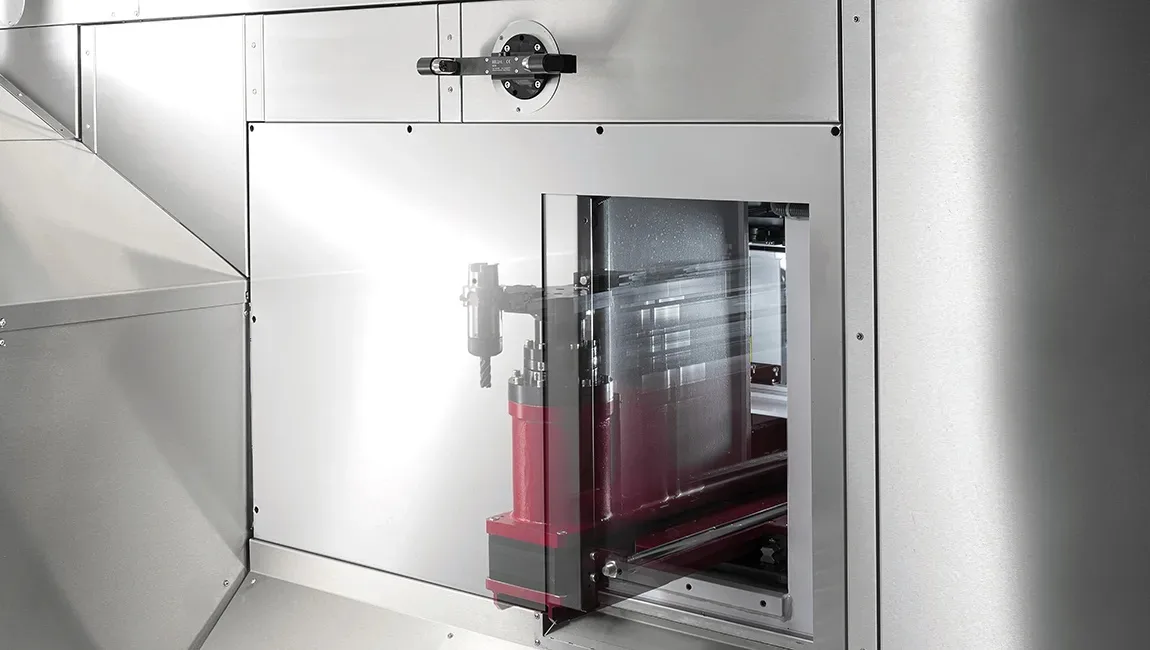

An efficient chip evacuation system and stainless steel guarding keep the machining area clean at all times and reduce the need for operator intervention.

Matrix E1 versions

Matrix version comparison table
