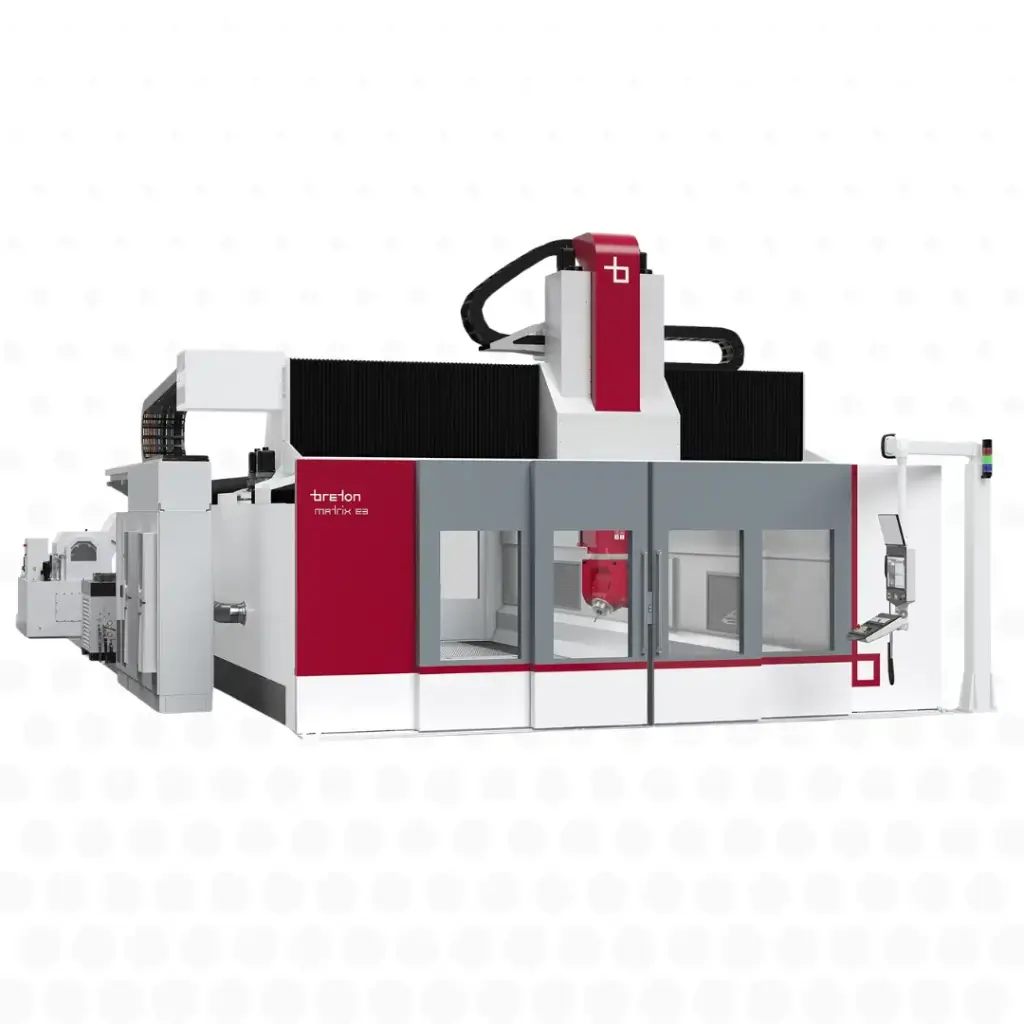

Breton Matrix E3 machining centre

Brand: BRETON

- Autofocus system for excellent cut quality on both thin and thick sheet metal

- One-piece frame for high acceleration.
Lower operating costs

- Excellent cut quality on all types of material
High-quality components throughout

- Automatic sheet loading and unloading system
Modern, compact design

- Dynamic structure and ergonomic design

Reach a higher level of excellence in industrial machining with the BRETON MATRIX E3, a CNC machining centre designed to deliver power, precision and stability in the most demanding production environments. Built for complex applications and technical materials, it guarantees consistent quality, high reliability and optimum repeatability. A premium solution to optimise your performance and safeguard your machining processes for the long term.

Key features and benefits

Advanced machining accuracy
Delivers precise, perfectly repeatable results on complex parts.

Enhanced rigidity and stability
Structure designed to provide maximum stability in intensive production.

Versatile applications
Suitable for machining technical materials, depending on machine configuration.

High productivity
Optimises machining cycles to improve overall production efficiency.

Superior surface finish
Produces clean, uniform, ready-to-use surfaces.

Industrial reliability
Designed for intensive use with excellent production continuity.

Industrial applications

The BRETON MATRIX E3 is particularly well suited to the following operations:

Machining of complex technical parts
Multi-axis precision milling
Manufacture of industrial components
Production in varied batch sizes
Materials processing
Subcontract machining

Why choose this product

The BRETON MATRIX E3 is an ideal solution for manufacturers looking for a powerful, accurate and reliable CNC machining centre. It improves part quality while optimising production performance.

It is a strategic investment for any company looking to safeguard its machining processes, improve productivity and guarantee consistent results, with a machine built to meet the most exacting industrial requirements.

Availability and services

Delivery, commissioning, installation and training carried out by our own teams.

Let's talk about your project!

Request information

Request information Download data sheet

Add to cart Buy now

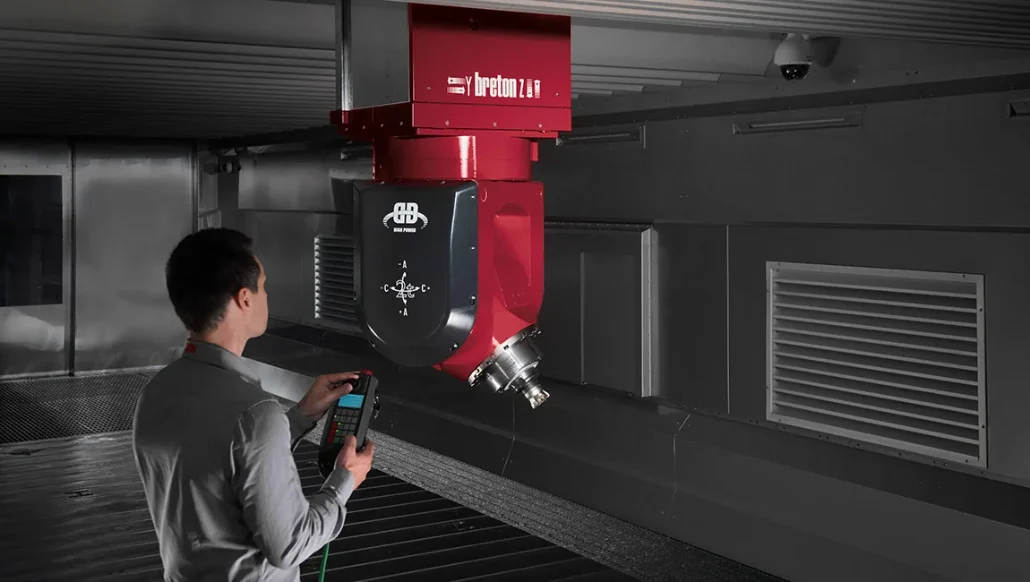

Dynamic, high-precision 5-axis vertical gantry machining centre

Its design rests on carefully considered engineering choices, balancing power and robustness with dynamic capability and a high level of precision. The result is optimum performance in high-speed roughing, semi-finishing and finishing of medium to large parts in steel, light alloys or special composite materials.

Heads compatible with Matrix E3:

Typhoon

Typhoon HD

Phoenix

Tornado

Why choose it?

Superior power, speed and accuracy

The great advantage is having several production capabilities in a single solution: roughing, semi-finishing, finishing, measuring, inspection and surface verification.

Meticulous design and structural optimisation, backed by a digital twin, have produced a machining centre that combines the power and robustness needed for roughing with the speed and accuracy needed for superfinishing. Dual Drive motors on all 3 linear axes, combined with rack-and-pinion systems and encoder-based linear scales, are the best way to achieve fast traverse, high thrust and extreme accuracy.

Installation and operating costs kept to a minimum

An advanced lubrication system eliminates dirt, stains on workpieces and hazardous fumes, and reduces maintenance and operating costs.

In addition, the Rexroth CytroPac hydraulic power unit cuts energy consumption through variable pressure management.

The Thermal Shield system, applied to the thermo-symmetrical structure of Matrix E3, provides optimum control of thermal expansion without the need for costly cooling systems.

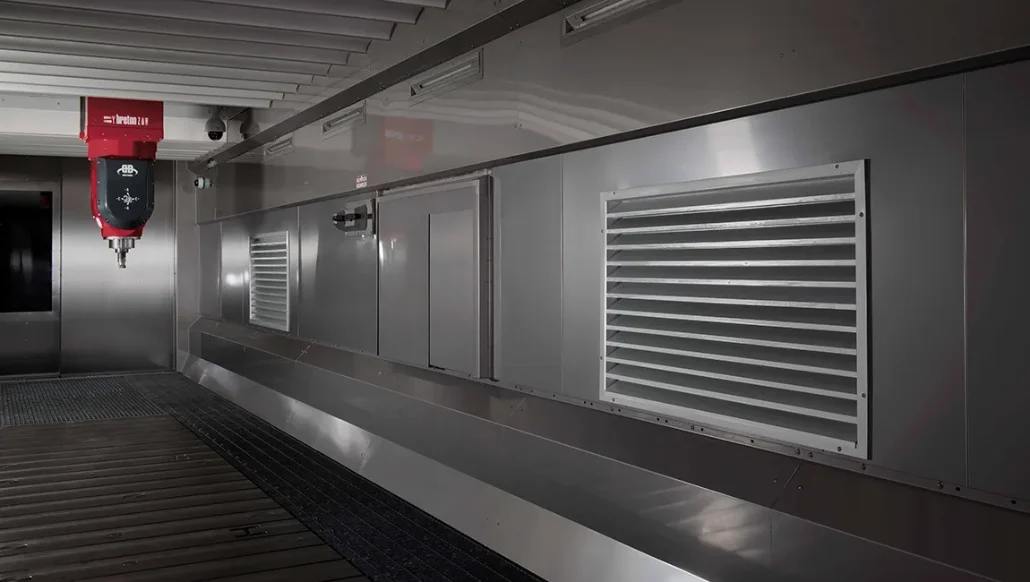

An efficient chip evacuation system and stainless steel cladding keep the machining area clean at all times and reduce operator intervention.

Maximum ergonomics and safety

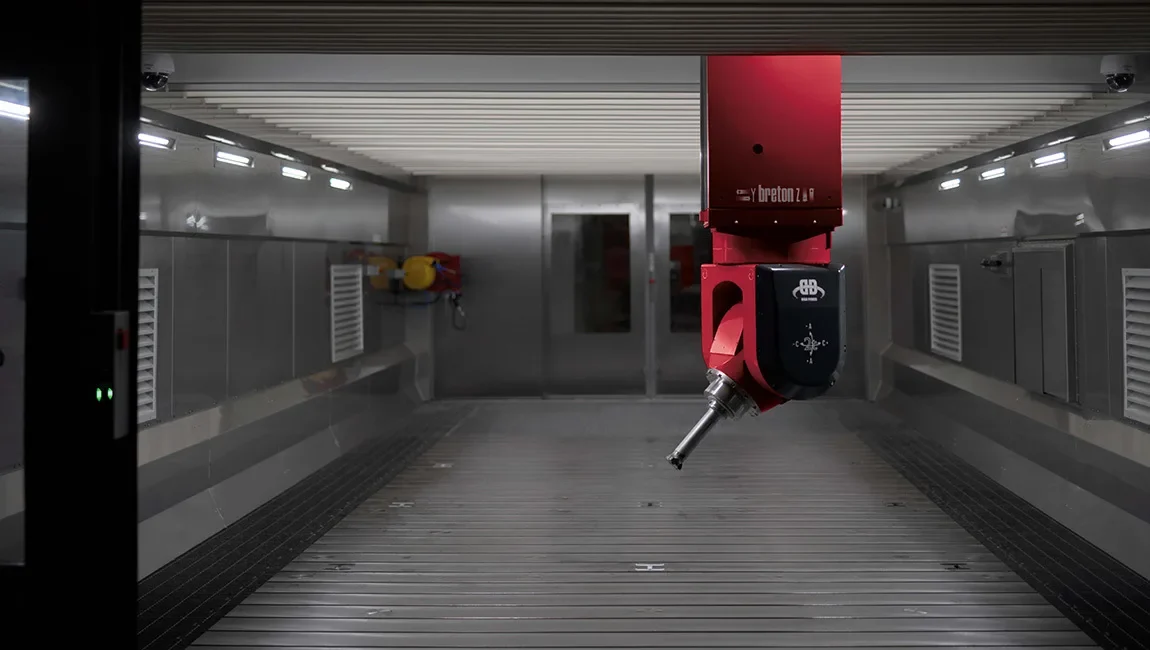

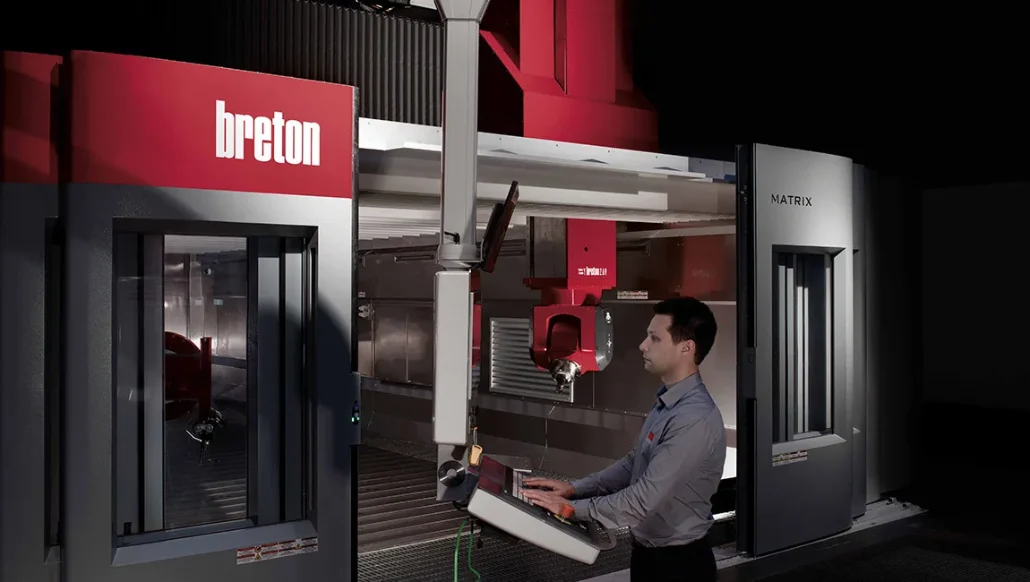

The floor-level machining table and automatic roof bellows make workpiece loading and unloading quick and safe, with the overhead crane reaching straight into the machine. The working area is fully enclosed to prevent the escape of chips, dust or fumes that could be hazardous to the operator. Large impact- and scratch-resistant windows, together with internal cameras that can be integrated into the control panel, give an excellent view of operations.

Connectivity and advanced technology

Matrix E3 was developed by harnessing the potential of the digital twin: simulations in a virtual environment allow the design to be optimised in a targeted way, with a corresponding increase in performance.

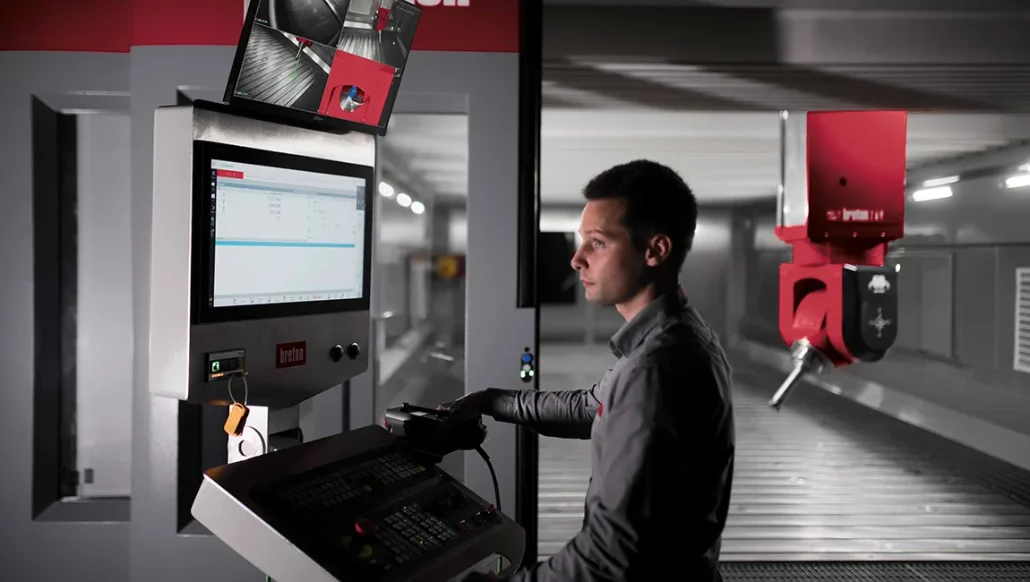

Matrix E3 is available with the most advanced Heidenhain and Siemens controls. All wiring is fully plug-connected to speed up programming and maintenance. The machine can be integrated with Industry 4.0 software to analyse operating statistics, optimise operations and carry out predictive maintenance.

Designed around your needs

Matrix E3 is available in a range of configurations to meet the needs of specific sectors. It offers tailored solutions for wet or dry machining of special composites, aluminium, steel or superalloys.

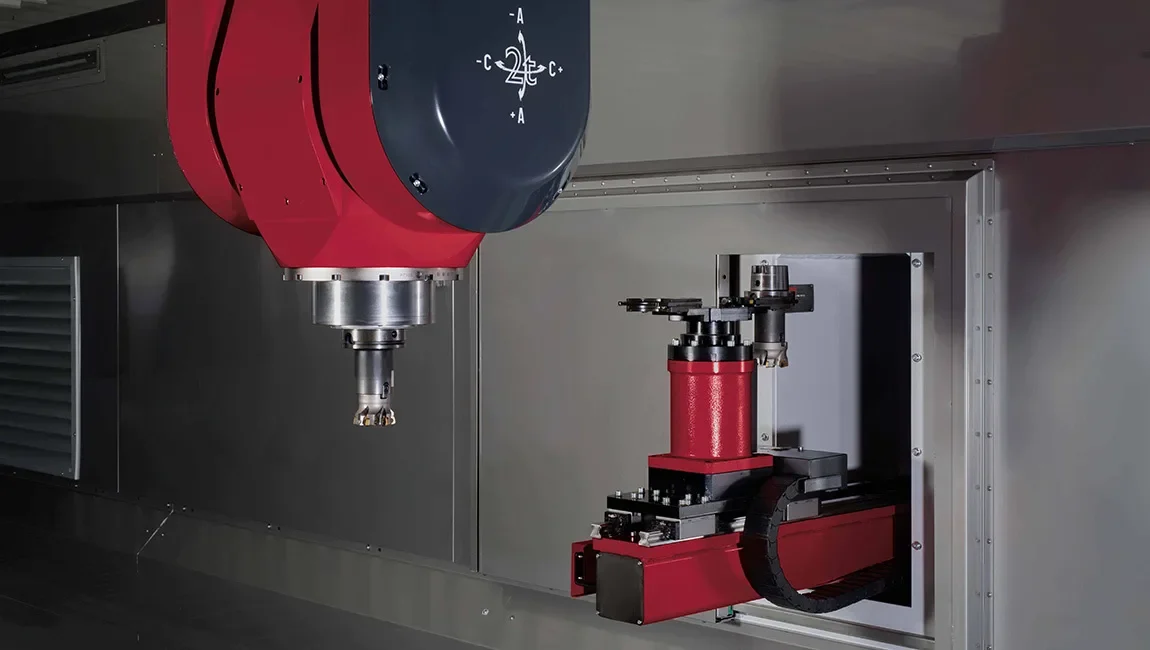

Matrix E3 is available with a wide choice of accessories for every type of application, such as heads/electrospindles or various types of automation for workpiece loading and unloading. Matrix E3 can also incorporate other innovative technologies, such as ultrasonic cutting of aerospace materials (honeycomb), ultrasonic thickness measurement, automated countersinking systems and much more.
