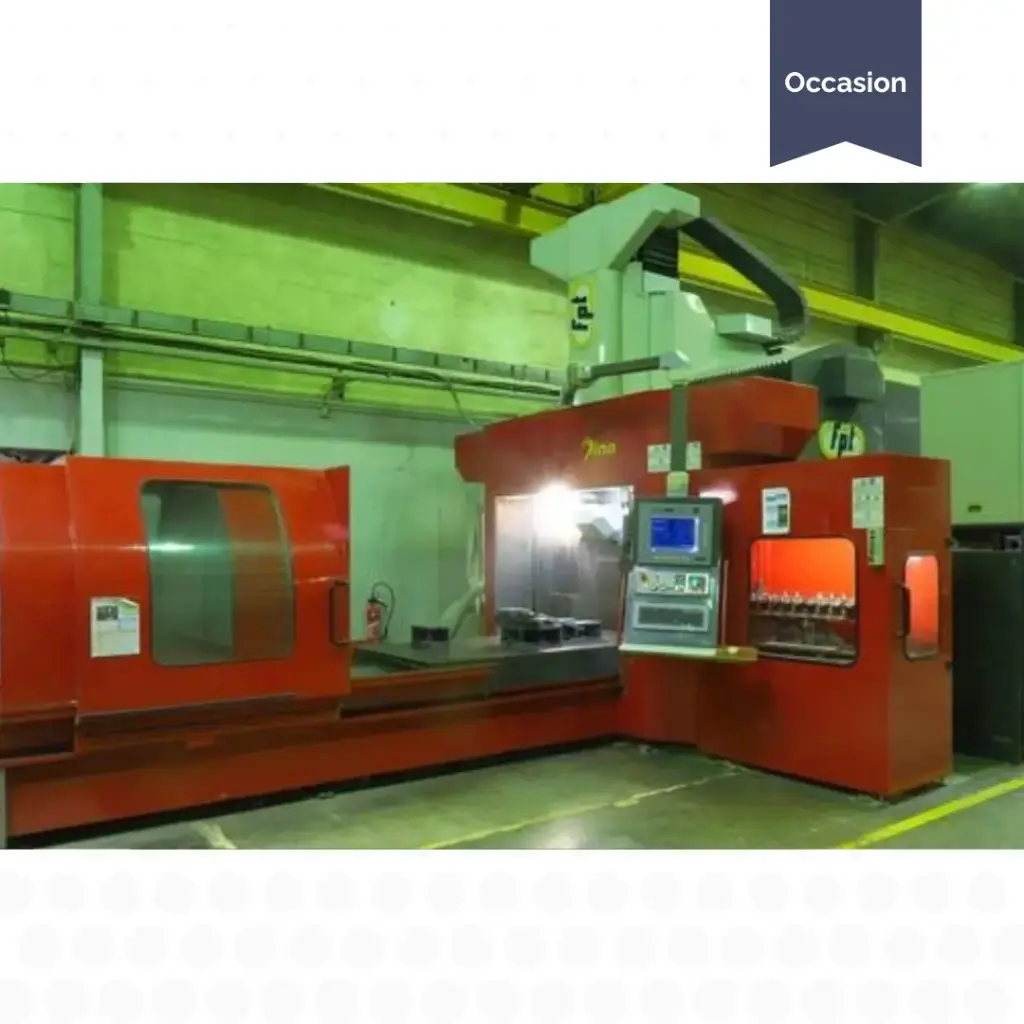

5-axis gantry vertical machining centre FPT DINO

Brand: FPT

Reference: D00090

​

Year: 2003
CNC type: FINDIA C20 X POWER CNC
Table dimensions (mm): 2500 x 1200
X-axis longitudinal travel (mm): 2200
Y-axis cross travel (mm): 1600
Z-axis vertical travel (mm): 1000
Spindle speed (rpm): 34000
Tool magazine capacity: 30
Number of tools: 30
​

Equipment:
- Chip conveyor, left-hand discharge
- Vertical roughing head with 10,000 rpm electrospindle, HSK-A63 spindle taper, 34 kW
- 5-axis universal milling head, 34,000 rpm, HSK-E40, C axis +270°/-90°, 17 kW
- 30-tool magazine (positions 1 to 12 for the HSK-A63 vertical head and 13 to 30 for the HSK-E40 5-axis head)
