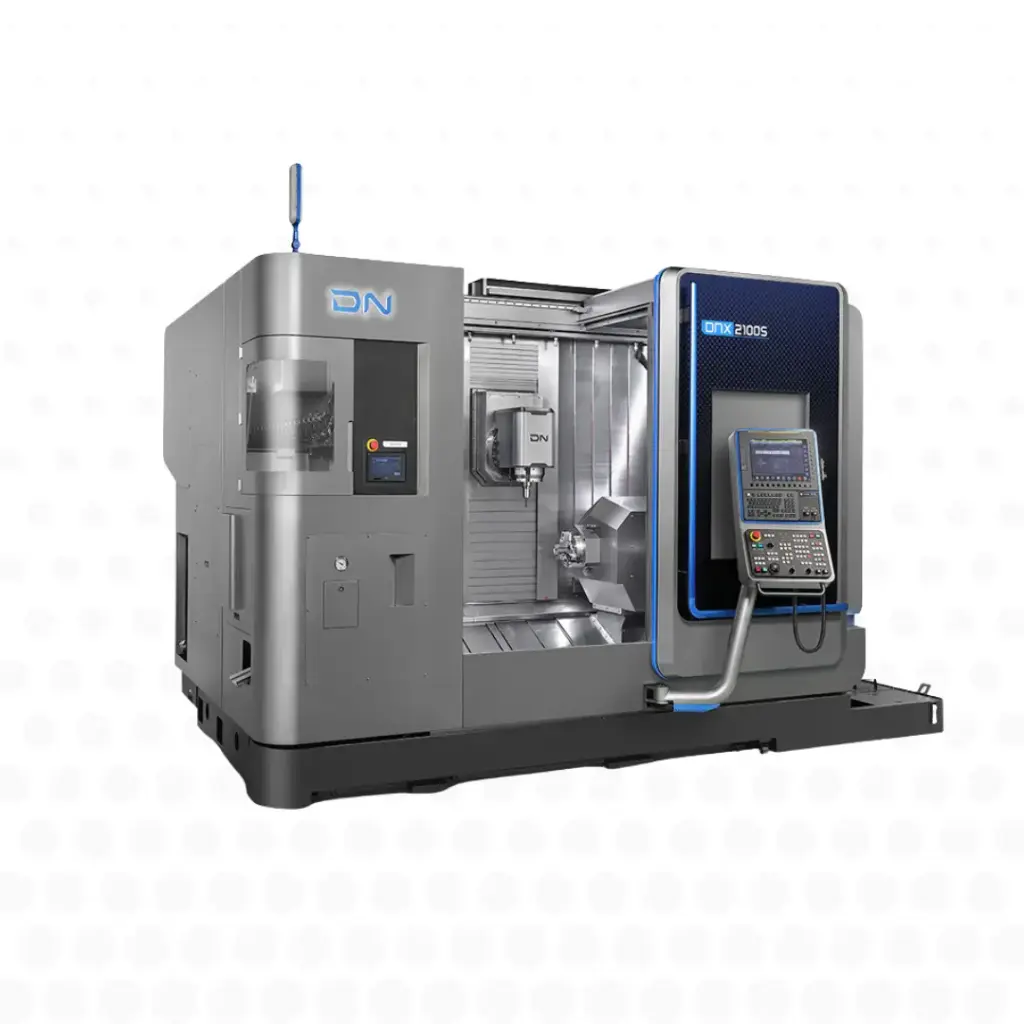

DN Solutions DNX2100 Essential turning centre
Brand: DN SOLUTIONS
Reference: DNX2100 Essential
DNX2100 Essential
NEW DN SOLUTIONS MILL-TURN CENTRE
TYPE DNX2100 "ESSENTIAL" Version
CNC CONTROL: FANUC 0I-TF PLUS
- DSSV: SPINDLE SPEED VARIATION
- TOOL LOAD MONITORING
- THERMAL COMPENSATION: 8 SENSORS
- 15" TOUCHSCREEN
- THREE-COLOUR SIGNAL TOWER
MACHINE CAPACITY:
- MAX. MACHINING DIAMETER 520 mm
- X-Z-Y-A TRAVELS: 760 (-20/+740) – 1,150 – 230 (±115) – 1,160 mm
- RAPID TRAVERSE, X Y Z AXES: 36 m/min
- AXIS THRUST, X Y Z: 9,421 N.m [14,132 N.m MAX.]
- BALLSCREW DIAMETER AND PITCH, X Y Z AXES: 40 x 12 mm
- AXIS MOTOR POWER, X Y Z: 3 kW
- LINEAR SCALE ON X AXIS
- COOLING OF TURNING & MILLING SPINDLES + X-AXIS BEARING
- MACHINE WEIGHT: 10,500 kg
SPINDLE 1:
- A2-6' - 5,000 rpm - 18.5/15 kW - 67 mm bar capacity
- C AXIS: 0.001°
- CHUCK: SAMCHULLY TYPE JB 208
- AIR BLOW
- ELECTRICAL PARTING-OFF CONFIRMATION
TAILSTOCK:
- SERVO-DRIVEN TYPE (BALLSCREW + MOTOR + DRIVE)
- TRAVEL: 1,160 mm
- MAX. THRUST: 7 kN
- MT#5 LIVE CENTRE
MILLING SPINDLE
- 12,000 rpm - 18.5/15 kW
- HSK63 TOOL INTERFACE
- 0.0001°
- B-AXIS CLAMPING TORQUE: 8,400 N.m
- THROUGH-SPINDLE COOLANT, 20 BAR
TOOL CHANGER:
- 30-POCKET TOOL MAGAZINE
- MAX. TOOL DIAMETER: 78 mm [125 mm]
- MAX. TOOL LENGTH 300 mm
- MAX. TOOL WEIGHT: 8 kg
- 7" TOUCHSCREEN CONTROL PANEL
COOLANT AND CHIP REMOVAL:
- COOLANT GUN
- BELT-TYPE OIL SKIMMER
- COOLANT LEVEL SENSOR
- COOLANT PRESSURE SENSOR
- HINGED-BELT CHIP CONVEYOR, RIGHT-HAND DISCHARGE
- MACHINE ENCLOSURE WASH-DOWN NOZZLES
(Price ex Le Havre or DNSEU – 12-month warranty included)
The DN SOLUTIONS DNX2100 Essential is a multi-tasking CNC lathe designed to offer the ideal combination of machining versatility, industrial productivity and ease of operation. Built for modern workshops looking for a machine that brings several operations together on a single platform, this turn-mill centre optimises cycle times while improving overall part accuracy.
Thanks to its compact, high-performance multi-tasking architecture, the DNX2100 Essential handles complex operations with a high level of stability and repeatability. It is aimed at manufacturers who want more flexible production while cutting handling times and moves between workstations.
Key features and benefits
Advanced multi-tasking versatility
Combines CNC turning, milling and complex operations on a single machine.
Shorter production times
Cuts down on second operations and optimises cycles through complete machining in a single set-up.
Consistent machining accuracy
Ensures excellent repeatability and stable quality on technical parts.
Compact, high-performance design
Fits easily into the workshop while retaining a high production capacity.
Optimised industrial productivity
Designed to raise output in precision engineering and subcontract machining workshops.
Simple to operate
Intuitive to learn, for fast, efficient use in an industrial environment.
Reliability in continuous operation
Ensures long-lasting production under heavy-duty machining conditions.
Technical data
- Type: Multi-tasking CNC lathe
- Brand: DN SOLUTIONS
- Model: DNX2100 Essential
- Architecture: Multi-tasking turn-mill centre
- Configuration: Complete machining in a single set-up
- Application: Industrial production and precision engineering
- Capacity: Complex, multi-operation technical parts
- Use: Continuous production and subcontract machining
Industrial applications
The DN SOLUTIONS DNX2100 Essential is particularly well suited to the following operations:
- Precision CNC turning
- Industrial multi-tasking milling
- Production of complex mechanical parts
- Machining for the automotive and general engineering sectors
- Series manufacture of technical components
- High-precision subcontract machining
Why choose this product
The DNX2100 Essential is a strategic choice for manufacturers looking for a reliable, flexible, high-performance multi-tasking machine. Its ability to bring several machining operations together on a single platform reduces non-productive time, improves part quality and increases the overall productivity of the workshop. With its focus on industrial efficiency, it is a sound choice for companies that want to become more competitive and more flexible in production.
Availability and services
Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
Internal Reference:
DNX2100 Essential
