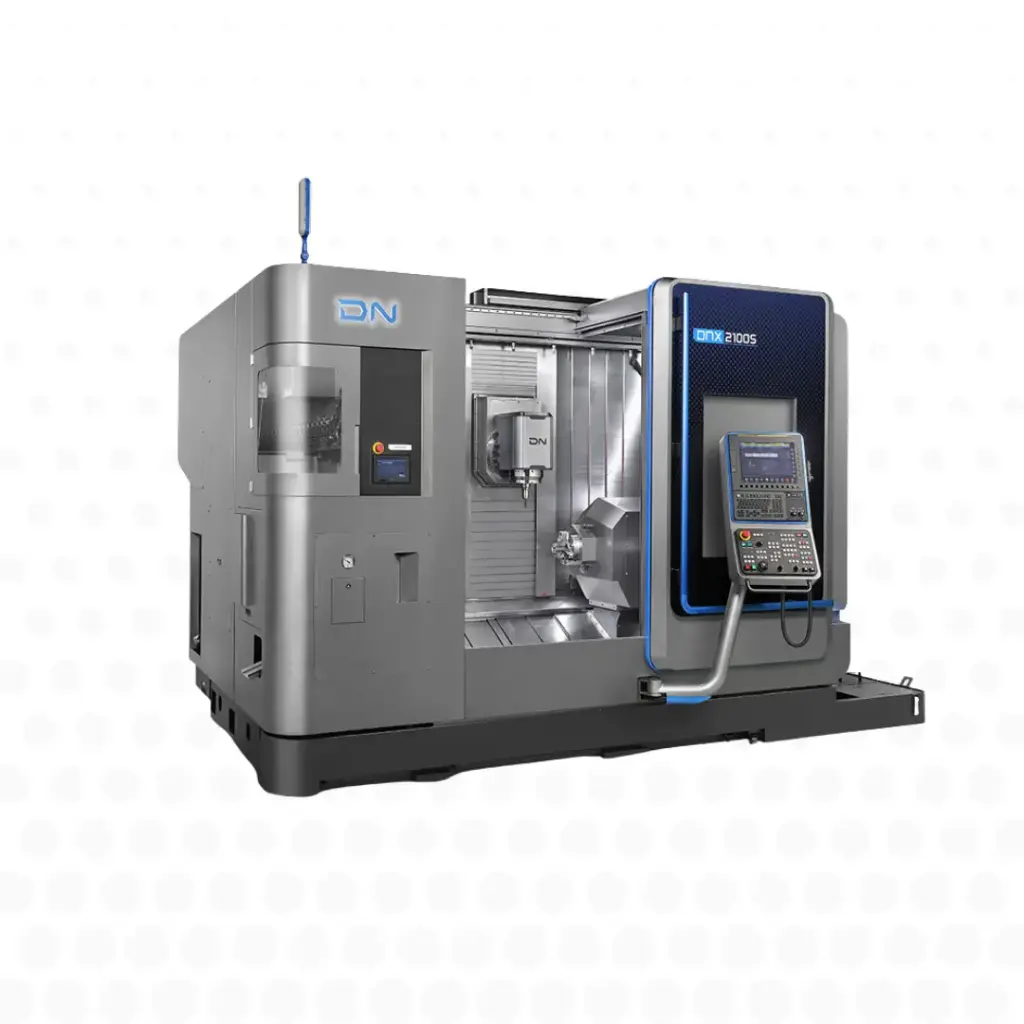

DN Solutions DNX2100 S Performance turning centre
Brand: DN SOLUTIONS
Reference: DNX2100 S Performance
NEW DN SOLUTIONS MILL-TURN CENTRE
TYPE DNX2100 S "PERFORMANCE" Version
CNC CONTROL: FANUC 0I-TF PLUS
- DSSV: SPINDLE SPEED VARIATION
- TOOL LOAD MONITORING
- THERMAL COMPENSATION: 8 SENSORS
- 15" TOUCHSCREEN
- THREE-COLOUR SIGNAL TOWER
MACHINE CAPACITY:
- MAX. MACHINING DIAMETER 520 mm
- X-Z-Y-A TRAVELS: 760 (-20/+740) – 1,150 – 230 (±115) – 1,160 mm
- RAPID TRAVERSE, X Y Z AXES: 36 m/min
- AXIS THRUST, X Y Z: 9,421 N.m [14,132 N.m MAX.]
- BALLSCREW DIAMETER AND PITCH, X Y Z AXES: 40 x 12 mm
- AXIS MOTOR POWER, X Y Z: 3 kW
- LINEAR SCALES ON X, Y AND Z AXES
- COOLING OF TURNING & MILLING SPINDLES + X-AXIS BEARING
- REMOTE HANDWHEEL
- MACHINE WEIGHT: 10,850 kg
SPINDLES 1 & 2:
- A2-6' - 5,000 rpm - 18.5/15 kW - 67 mm bar capacity
- C AXIS: 0.001°
- CHUCK: SAMCHULLY TYPE JB-M308
- AIR BLOW
- ELECTRICAL PARTING-OFF CONFIRMATION
- PROGRAMMABLE DUAL CHUCK CLAMPING PRESSURE
- CHUCK WASH
- SERVO-DRIVEN SUB-SPINDLE TRAVEL
MILLING SPINDLE
- 12,000 rpm - 18.5/15 kW
- HSK63 TOOL INTERFACE
- 0.0001°
- B-AXIS CLAMPING TORQUE: 8,400 N.m
- THROUGH-SPINDLE COOLANT, 20 BAR
TOOL CHANGER:
- 30-POCKET TOOL MAGAZINE
- MAX. TOOL DIAMETER: 78 mm [125 mm]
- MAX. TOOL LENGTH 300 mm
- MAX. TOOL WEIGHT: 8 kg
- 7" TOUCHSCREEN CONTROL PANEL
COOLANT AND CHIP REMOVAL:
- COOLANT GUN
- BELT-TYPE OIL SKIMMER
- COOLANT LEVEL SENSOR
- COOLANT PRESSURE SENSOR
- HINGED-BELT CHIP CONVEYOR, RIGHT-HAND DISCHARGE
- MACHINE ENCLOSURE WASH-DOWN NOZZLES
- FUME EXTRACTION INTERFACE
(Price ex Le Havre or DNSEU – 12-month warranty included)
With its modern architecture and advanced machining capabilities, the DNX2100 S Performance is a perfect match for the needs of precision engineering, automotive and subcontract machining workshops. It produces complex parts with great stability and excellent repeatability.
Key features and benefits
High-performance multi-tasking machining
Lets you combine turning and milling on a single machine to cut production times.
Optimised productivity
Reduces set-up changes thanks to complete machining in a single set-up.
High machining precision
Ensures consistent quality on complex technical parts and repeat batches.
Compact, rigid architecture
Provides optimum stability in intensive machining while making the best use of floor space.
High dynamic performance
Delivers fast cycles and excellent machine responsiveness to maximise output rate.
Industrial versatility
Suited to a wide range of materials and precision engineering applications.
Advanced CNC control
Makes programming easier with a modern interface designed for industrial production.
Reliability in continuous production
Designed for intensive operation in demanding industrial environments.
Technical data
- Type: CNC multi-tasking turn-mill centre
- Brand: DN Solutions
- Model: DNX2100 S Performance
- Architecture: compact, high-rigidity multi-tasking machine
- Functions: turning, milling and complex multi-operation machining
- Control: advanced CNC for industrial production
- Structure: optimised vibration-damping cast iron frame
- Use: precision machining and multi-tasking production
- Applications: general engineering, automotive, aerospace, subcontract machining
Industrial applications
The DN Solutions DNX2100 S Performance is particularly well suited to the following operations:
- Turn-milling of complex parts
- High-precision multi-tasking production
- Manufacture of technical mechanical components
- Machining for the automotive and aerospace industries
- Precision subcontract machining
- Production of parts requiring several operations in a single set-up
Why choose this product
The DN Solutions DNX2100 S Performance is an ideal solution for manufacturers looking for a powerful, versatile CNC multi-tasking centre. It combines fast production, machining precision and operational flexibility, while cutting handling times and second operations.
Its modern design helps optimise production flow and ensures consistent machining quality, even in the most demanding precision engineering applications.
Availability and services
Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
