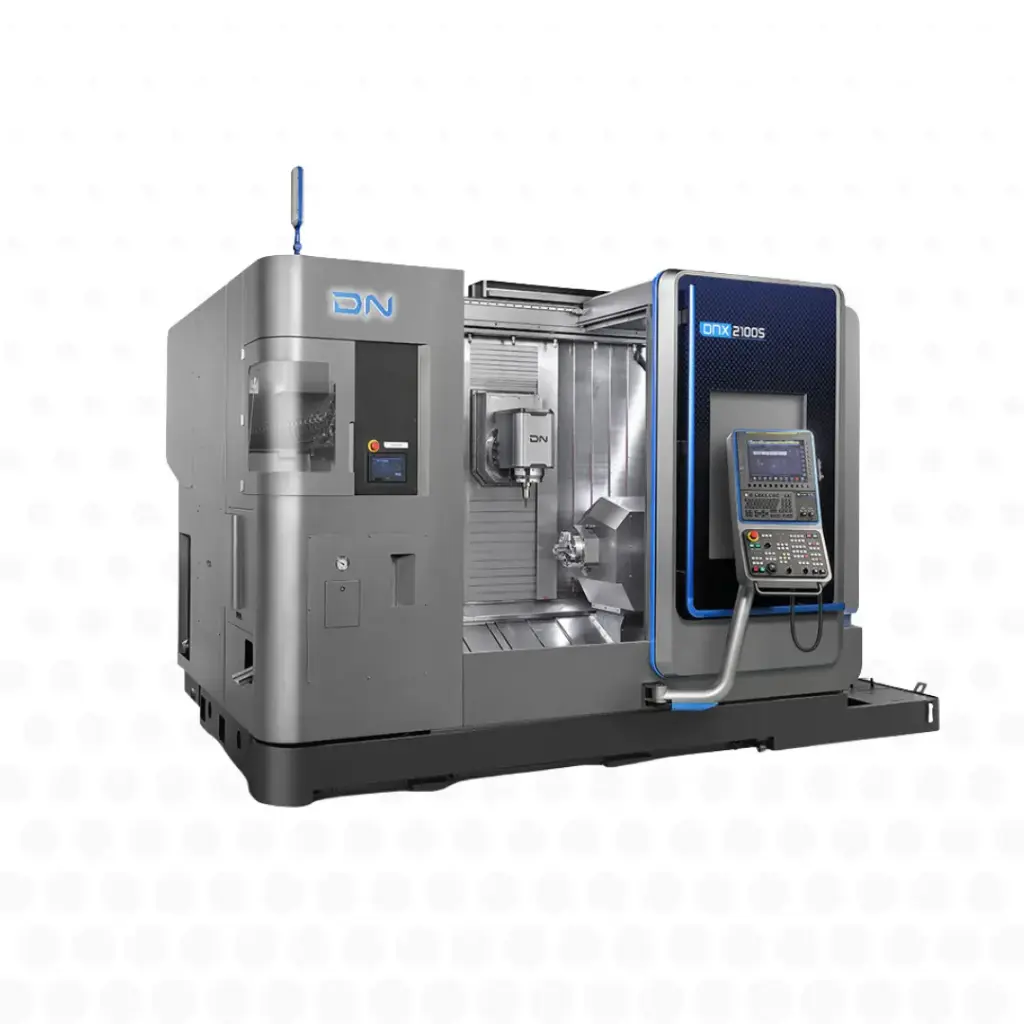

DN Solutions DNX2100 SB Advanced turning centre
Brand: DN SOLUTIONS
Reference: DNX2100 SB Advanced
NEW DN SOLUTIONS MILL-TURN CENTRE
TYPE DNX2100 SB "ADVANCED" Version
CNC CONTROL: FANUC 0I-TF PLUS
- DSSV: SPINDLE SPEED VARIATION
- TOOL LOAD MONITORING
- THERMAL COMPENSATION: 8 SENSORS
- 15" TOUCHSCREEN
- THREE-COLOUR SIGNAL TOWER
MACHINE CAPACITY:
- MAX. MACHINING DIAMETER 520 mm
- X-Z-Y-A TRAVELS: 760 (-20/+740) – 1,150 – 230 (±115) – 1,160 mm
- RAPID TRAVERSE, X Y Z AXES: 36 m/min
- AXIS THRUST, X Y Z: 9,421 N.m [14,132 N.m MAX.]
- BALLSCREW DIAMETER AND PITCH, X Y Z AXES: 40 x 12 mm
- AXIS MOTOR POWER, X Y Z: 3 kW
- LINEAR SCALES ON X, Y AND Z AXES
- COOLING OF TURNING & MILLING SPINDLES + X-AXIS BEARING
- REMOTE HANDWHEEL
- MACHINE WEIGHT: 11,000 kg
MAIN SPINDLE
- A2-8' - 4,000 rpm – 22/22/15 kW - 81 mm bar capacity
- C AXIS: 0.001°
- CHUCK: SAMCHULLY TYPE JB-M310
- AIR BLOW
- ELECTRICAL PARTING-OFF CONFIRMATION
- PROGRAMMABLE DUAL CHUCK CLAMPING PRESSURE
- CHUCK WASH
SUB-SPINDLE:
- A2-6' - 5,000 rpm - 18.5/15 kW - 67 mm bar capacity
- C AXIS: 0.001°
- CHUCK: SAMCHULLY TYPE JB-M308
- AIR BLOW
- ELECTRICAL PARTING-OFF CONFIRMATION
- PROGRAMMABLE DUAL CHUCK CLAMPING PRESSURE
- CHUCK WASH
- THROUGH-SPINDLE COOLANT
- SERVO-DRIVEN SUB-SPINDLE TRAVEL
MILLING SPINDLE
- 12,000 rpm - 18.5/15 kW
- HSK63 TOOL INTERFACE
- 0.0001°
- B-AXIS CLAMPING TORQUE: 8,400 N.m
- THROUGH-SPINDLE COOLANT, 70 BAR, 7 PROGRAMMABLE PRESSURES
- ADDITIONAL 350 L TANK WITH CYCLONE FILTRATION
- COOLANT CHILLER
TOOL CHANGER:
- 60-POCKET TOOL MAGAZINE
- MAX. TOOL DIAMETER: 78 mm [125 mm]
- MAX. TOOL LENGTH 300 mm
- MAX. TOOL WEIGHT: 8 kg
- 7" TOUCHSCREEN CONTROL PANEL
COOLANT AND CHIP REMOVAL:
- COOLANT GUN
- BELT-TYPE OIL SKIMMER
- COOLANT LEVEL SENSOR
- COOLANT PRESSURE SENSOR
- HINGED-BELT CHIP CONVEYOR, RIGHT-HAND DISCHARGE
- MACHINE ENCLOSURE WASH-DOWN NOZZLES
- FUME EXTRACTION INTERFACE
(Price ex Le Havre or DNSEU – 12-month warranty included)
Designed for workshops that need a machine capable of cutting cycle times while maintaining consistent quality, the DNX2100 SB Advanced optimises complex operations thanks to its advanced architecture and high cutting stability. It is a strategic solution for manufacturers looking to boost their competitiveness and production capacity.
Key features and benefits
High-performance multi-tasking machining
Carries out several operations on a single machine to optimise production times.
High machining accuracy
Ensures tightly controlled tolerances and an excellent surface finish on technical parts.
Compact, rigid design
Optimises cutting stability while fitting easily into modern production workshops.
Optimised industrial productivity
Reduces non-productive time thanks to a design built for fast, continuous cycles.
Manufacturing versatility
Suited to machining a wide variety of complex mechanical parts, in series or one-off production.
Reliability under heavy use
Built to deliver long-lasting production in demanding industrial environments.
Advanced CNC control
Simplifies programming and keeps precision machining operations running smoothly.
Technical data
- Type: Precision multi-tasking CNC lathe
- Brand: DN SOLUTIONS
- Model: DNX2100 SB Advanced
- Configuration: High-performance CNC lathe with multi-tasking capability
- Use: Machining of complex mechanical parts and industrial production
- Architecture: Rigid structure optimised for stability and accuracy
- CNC control: Advanced CNC for automated production
- Applications: Turning, complex machining and precision manufacturing
Industrial applications
The DN SOLUTIONS DNX2100 SB Advanced is particularly well suited to the following operations:
- Precision CNC turning
- Multi-tasking machining of complex parts
- Industrial mechanical manufacturing
- Production of technical components
- Subcontract machining
- Automotive industry and general engineering
- Machining of high-precision metal parts
Why choose this product
The DN SOLUTIONS DNX2100 SB Advanced is an ideal solution for manufacturers looking for a high-performance multi-tasking CNC lathe that combines accuracy, productivity and manufacturing flexibility. Its advanced design optimises machining cycles while ensuring excellent production quality on complex technical parts.
Availability and services
Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training to get you up and running quickly
Responsive after-sales service and spare parts availability
Financing options available
