Wenzel RAX horizontal arm coordinate measuring machine

A horizontal arm coordinate measuring machine built for fast, accurate inspection of large-volume parts.

Key features & benefits

• The largest measuring volume in the WENZEL horizontal arm range
• Up to 4,200 mm of Z-axis travel, with a measuring range that starts directly above the base plate
• Rigid machine body and selected linear guides on all axes for high precision
• High dynamics and high travel speeds, combined with safety technology
• Floor-level installation with optimal access for loading parts

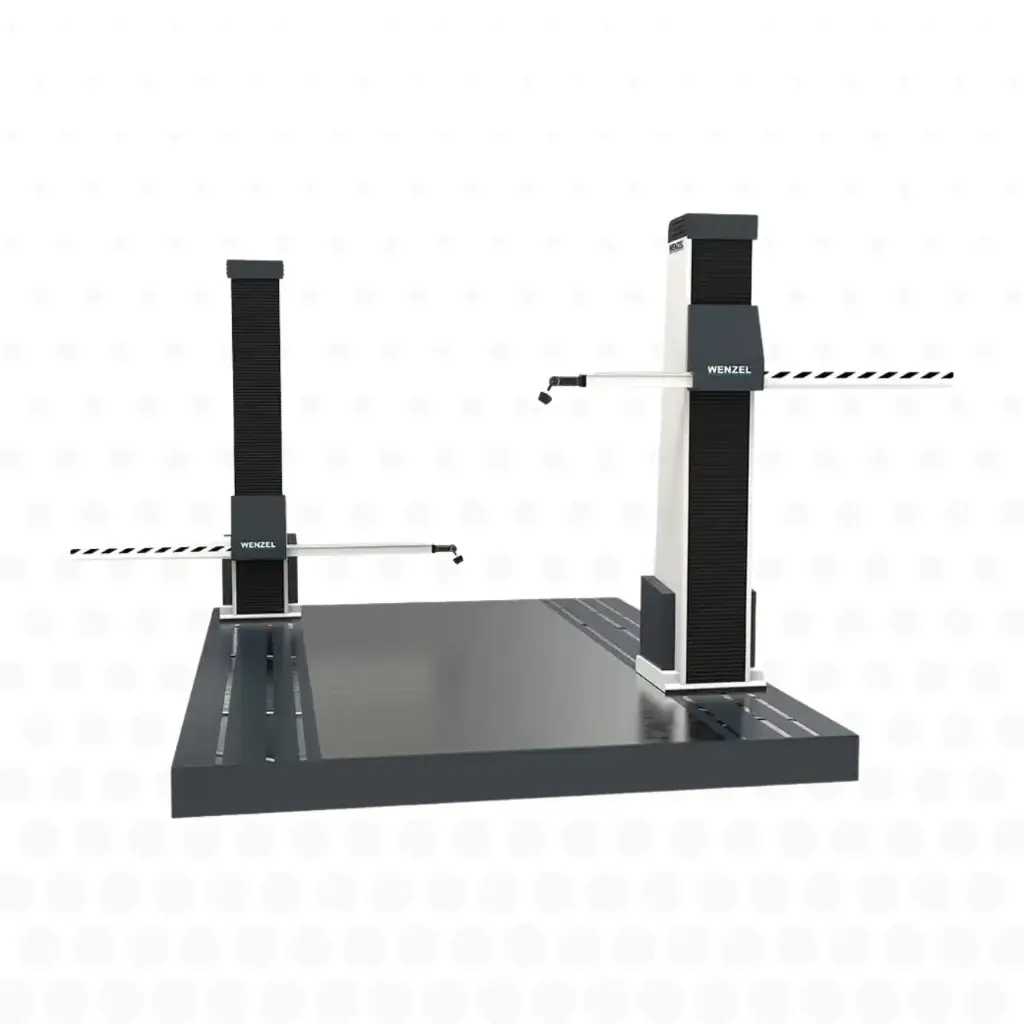

• Available as a duplex system for an even larger measuring volume

Technical data

• Type: horizontal arm coordinate measuring machine (CMM)
• Z-axis travel: up to 4,200 mm
• Configuration: single arm or duplex
• Heads and sensors: Renishaw PH10M and infinitely positionable PHS heads, touch-trigger probes and a wide range of optical sensors
• Use: measurement and digitisation of individual parts or assemblies
• Operation: travelling control units and safety options

Industrial applications

The WENZEL RAX is used wherever large components need to be measured accurately:

• Automotive: car and commercial vehicle bodies
• Aerospace
• Shipbuilding
• Transport
• Construction and agricultural machinery
• Large machine components

Why choose the WENZEL RAX

With its large measuring volume, a mirror-image design that makes the most of the measuring range, and compatibility with both tactile and optical sensors, the RAX lets you inspect and digitise the bulkiest parts quickly, from single components to complete assemblies.

Availability and services

Machine available to order in a range of configurations
Support with integration into your production environment
Installation and commissioning by qualified engineers
Operator training for a fast start
Responsive after-sales service and parts availability
Financing options available
