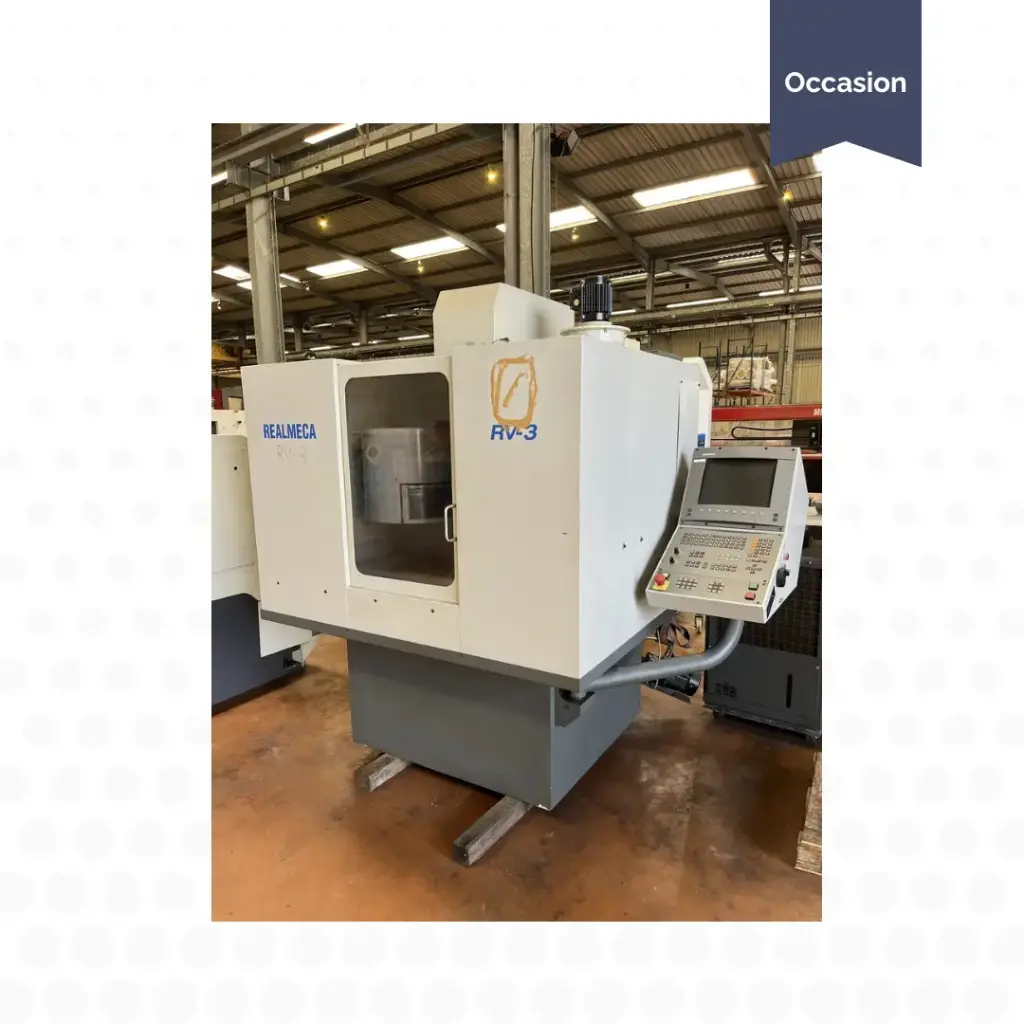

Realmeca RV 3 High-Speed Machining Centre
Brand: REALMECA
Model: RV 3
Year: 2,003
Reference: T25031
| Year: | 2003 |
| CNC type: | HEIDENHAIN |
| Table dimensions (mm): | 280 x 600 |
| X-axis longitudinal travel (mm): | 350 |
| Y-axis cross travel (mm): | 250 |
| Z-axis vertical travel (mm): | 305 |
| Spindle speed (rpm): | 30 000 |
| Spindle motor power (kW): | 17 |
| Number of tools: | 12 |
| Tool taper: | HSK 30 |
| - Overall dimensions L x W x H (mm): | 1600 x 1680 x 2350 |
| 4th axis with HAAS interpolation: | YES |
Internal Reference:
T25031
