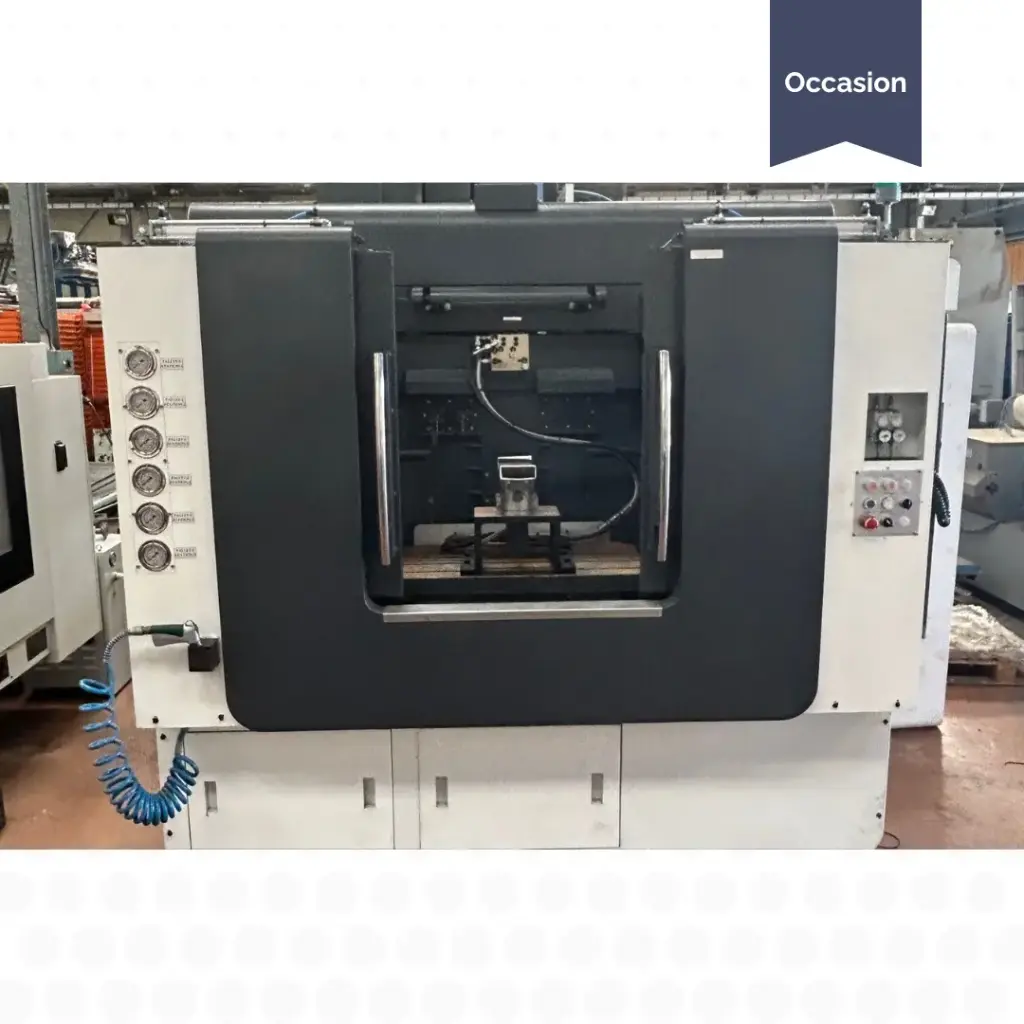

Vertical machining centre AMS Paletisse Super Dart
Brand: AMS
Reference: T23047
| CNC type: | FANUC OiMF |
| Table dimensions (mm): | 800 x 450 |
| X-axis longitudinal travel (mm): | 500 |
| Y-axis cross travel (mm): | 450 |
| Z-axis vertical travel (mm): | 500 |
| Spindle speed (rpm): | 150 à 15000 |
| Spindle motor power (kW): | 7.5/5.5 |
| Tool taper: | BBT30 |
| Number of tools: | 30 |
| Feed rate: | 1 to 10,000 mm/min |
| Rapid traverse: | 50 m/min |
| Distance between spindles: | 400 mm |
| Number of tables: | 2 |
Year 2016
Equipment:
- Through-spindle coolant
- 2 chip conveyors
- 2 SMW Autoblok hydraulic clamping units
- Spindle chiller
- Linear guideways and linear scales on X and Y axes
- Automatic tool changer (ATC)
- 4-station hydraulic power pack, 150 bar
Internal Reference:
T23047
